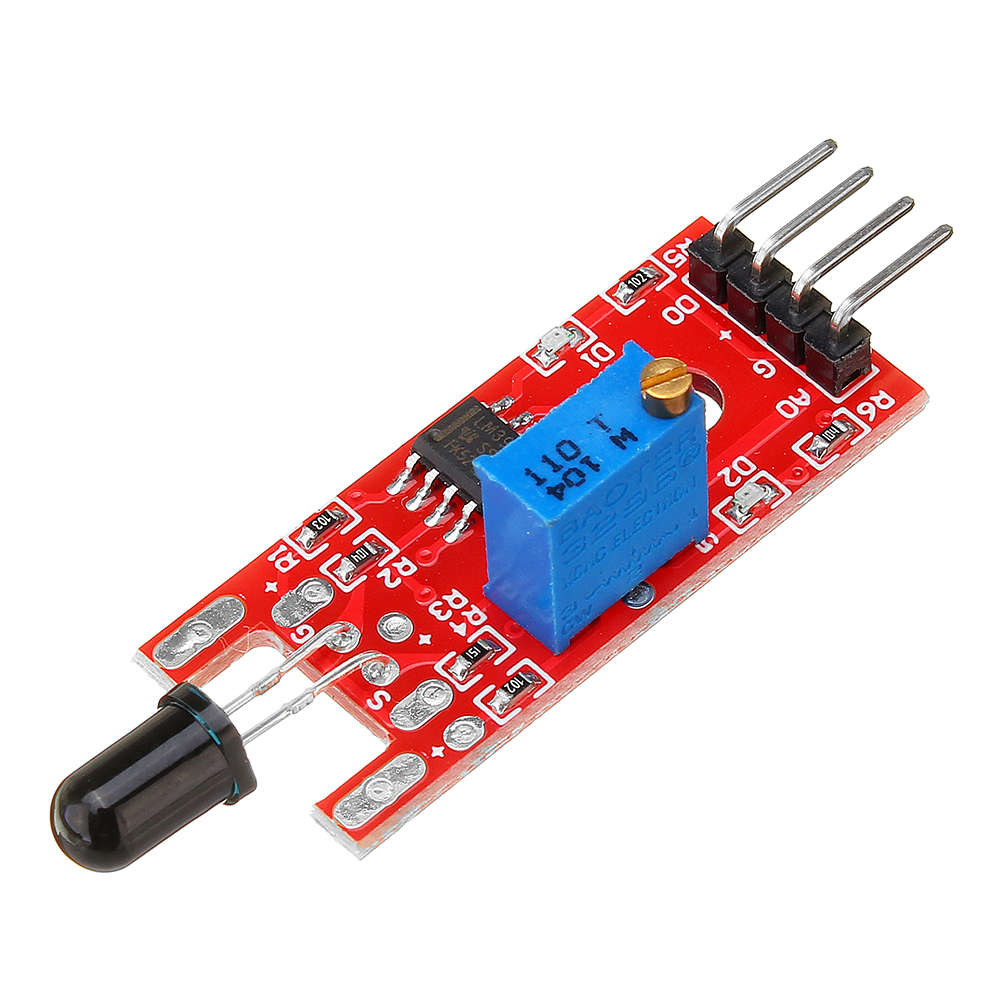

Name:Intelligent Car Flame Sensor Fire Source Detection Fire Source Detection Alarm Module 1. It can detect flames or light sources with wavelengths in the range of 760 nanometers to 1100 nanometers. The test flame distance of the lighter is 80cm. The greater the flame, the longer the test distance 2. The detection angle is about 60 degrees, which is particularly sensitive to the flame spectrum 3. Equipped with adjustable precision potentiometer to adjust sensitivity 4. PCB size: 3.2x1.4cm 5. Use wide voltage LM393 comparator 6, the comparator output exceeds 15mA 7, Working voltage: 3.3~-5V 8. Output format: 0 and 1 9, adjustable sensitivity
