Electrical parameters:

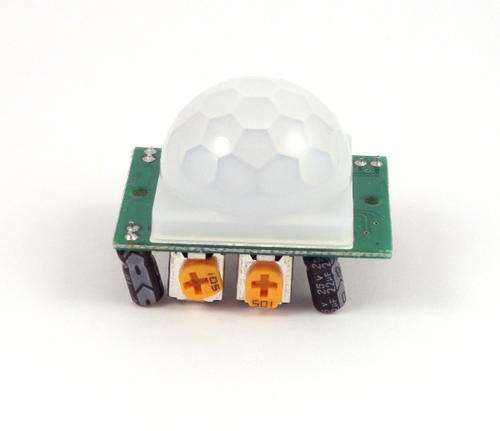

Product Type: HC--SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Level output: High 3.3 V /Low 0V
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100 ° cone angle
Operation Temp: -15-+70 degrees
Lens size sensor: Diameter:23mm(Default)
Dimensions and Adjustment:
Note: The potentiometer clockwise to adjust the distance, sensing range increases (about 7 meters), on the contrary,
sensing range decreases (about 3 meters).Delay adjustment potentiometer clockwise rotation, sensor delay longer (about 300S),
the other hand, induction by the short delay (about 5S).
5. Applications
a, Security Products
b, the human body sensors toys
c, the human body sensor lighting
d, industrial automation and control, etc.
It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors,
electric fans,automatic washing machine and dryer Machines and other devices,is a hightech products. Especially
suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive
Sense of region, or for the security zone automatic lighting, lighting and alarm systems.
More Details can be supplied on completion of sale. ie Arduino Example Sketch and wiring example
