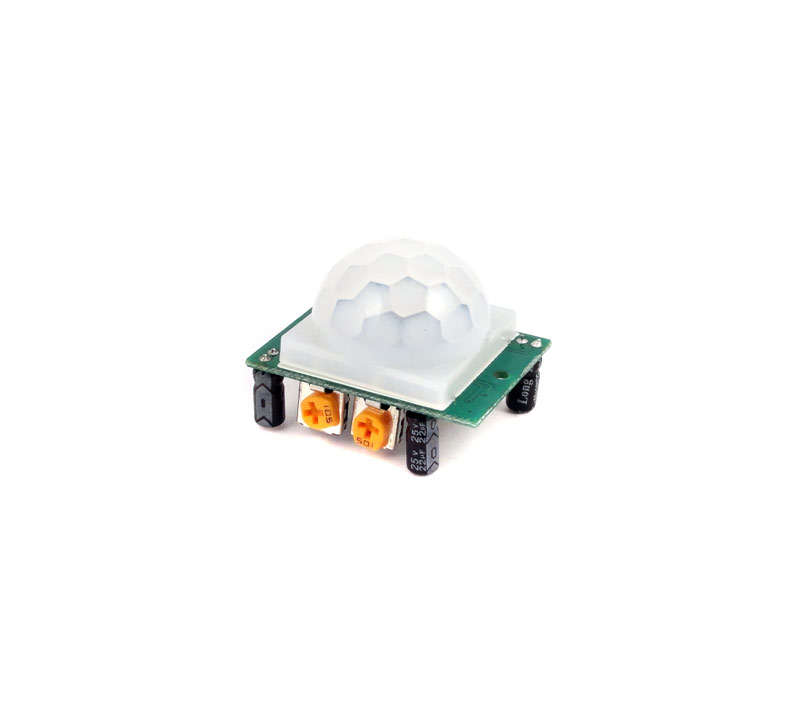

Infrared Human Sensor Module

Product Description:

HC-SR501 is based on infrared technology, automatic control module, using Germany imported LHI778 probe design, high sensitivity, high reliability, ultra-low-voltage operating mode, widely used in various auto-sensing electrical equipment, especially for battery-powered automatic controlled products. Awsome for use with Arduino or Raspberry pi.

Specification:

• Use BISS0001 signal processing IC, sanyo genius regulator
• Voltage: 5V ¿ 20V
• Power Consumption: 65mA
• TTL output: 3.3V, 0V
• Delay time: adjustable (0.3 sec ¿ 10 minutes)
• Lock time: 0.2 sec
• Trigger methods: L ¿ disable repeat trigger, H enable repeat trigger
• Sensing range: less than 120 degree, within 7 meters
• Temperature: ¿ 15 ~ +70
• Dimension: 32*24 mm, distance between screw 28mm, M2, Lens dimension in diameter: 23mm

Application:

Automatically sensing light for Floor, bathroom, basement, porch, warehouse, Garage, etc, ventilator, alarm, etc.

Features:

• Automatic detecting: the output will be high when objects enter the sensing range, and automatically turn to low when object leave
• Photosensitive control (optional, not factory-set yet) can be set.
• Temperature compensation (optional, factory reset): In the summer when the ambient temperature rises to 30 ° C to 32 ° C, the detection distance is slightly shorter, temperature compensation can be used for performance compensation.
• Working mode (set by jumper)
  • Non-repeatable trigger/ delay mode (set to LOW): the sensor will turn to low TTL after the delay, even the sensing object is still in range.
  • Repeatable trigger (set to HIGH): the sensor will not turn to low if the object still staty in the sensing range in the delay time.
• Wide operating voltage range: default voltage DC4.5V-20V.
• Micro-amp power level consumption: static current <50 microamps, particularly suitable for battery-powered automatic control products.
• Output high signal: easy to achieve docking with the various types of circuit.

Adjustment:

• Adjust the distance: turn the potentiometer clockwise rotation, increased sensing distance (about 7 meters), on the contrary, the sensing distance decreases (about 3 meters).
• Adjust the delay: turn the potentiometer clockwise rotation sensor the delay lengthened (600S, 10 minutes ), on the contrary, shorten the induction delay (0.3 second).
