Active Infrared Motion Detector (1 Bid = 1 set)

Photoelectric Two Beams Detector Twin Beams Active Infrared Detector Alarm Burglar Dectector baluster intrusion system

    Product Name: Active Infrared Motion Detector
    Type: Double Beam
    Install Distance(Max.) Outdoor: 30m 60m 80m 100m
    Indoor: 90m 180m  240m 300m
    Survey Way: Lights Covered At The Same Time
    Light Source: Infrared LED
    Response Speed: 50~700m/sec
    Alarm Output: Transmit Contact Output 1C
    Contact Capacity: AC DC 30V 0.5A max.
    Power Supply Voltage: DC10.5~18V
    Extend Power: 65mA Max.
    Temperature Scope: -25°C~55°C
    Forestall Disassemble Contact Output: 1b DC 30V 0.5A max.
    Light Adjusting Angle: Horizontal 180° (±90°)
    Vertical: 20° (±10°)
    Deal With Frost & Fog: Ultrasonic Wave Implement
    Other Attached Functions: Light Receive, OK Sign, Check Point
    Housing Material: Hard Plastic
    Size (Each One): 17 x 8.2 x 7.7cm/6.7'' x 3.2'' x 3'' (L*W*T)
    Net Weight: 825g
    Housing Color: Black
    Package Content:
    1 Pair x Active Infrared Detector
    1 x English Usage Manual
    1 Bag x Install Tools

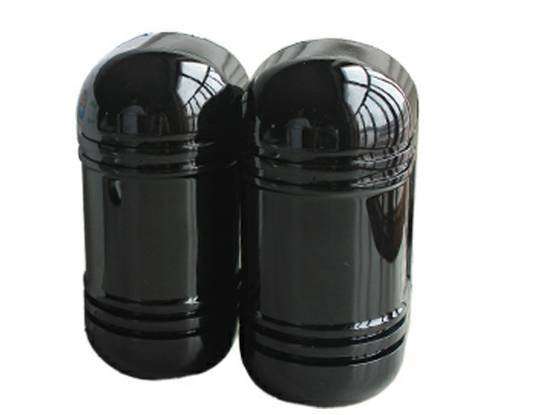

    This is a pair of Active Infrared Detector.  Install them at the opposite positions.  Then there is a infrared area between these two detector parts. When someone passes the infrared region for an adjusted response time, the detector will send alarm signal to the security alarm host (which not included here).
    Install Distance(Max.)in the above chart means the maximum install distance between these two detector parts.
    Some red and green LED indicator lights are fixed.
    Great to be installed for security system in school, office building, hospital, home yard, etc.
    Each one with 7 screw terminal for connecting.
    An English Usage Manual included in the pack. It will give you detailed instructions.
