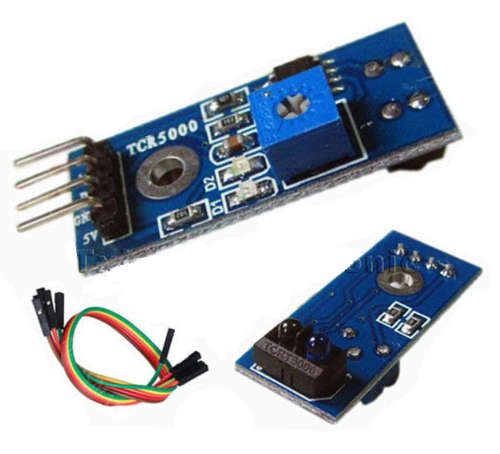

INFRARED REFLECTIVE BARRIER LINE TRACK SENSOR TCRT5000L
Product information
The module uses the commonly available TCRT5000L, high sensitivity Infrared/Photoelectric sensor. The sensor is connected to the on-board LM393 comparator which outputs an Analog voltage (0 to 5v) on pin A as well as a Digital output (0 or 1) on pin B. The sensitivity of the sensor is adjustable via the potentiometer. This module enables a microcontroller driven robot to follow a line.
Specifications
Optical range: 0 to 30mm
Working voltage: 3.3V - 5V
Retaining hole provided for convenient installation
Has two on-board LEDS: Red Power LED and Green digital output LED
Module size: 35mm x 15mm
Package Includes
1 x Infrared Reflective Barrier Line Track Sensor TCRT5000L Module
5 x DuPont Female to Female wires
