Description:
The 25.6V 200Ah Lithium Iron Phosphate (LiFePO) battery module delivers reliable power storage in a durable wall-mounted format. Designed for advanced energy systems, this 5.12kWh battery is ideal for residential, solar backup, and hybrid storage applications. Supporting both series and parallel configurations (up to 4S4P), it offers excellent scalability and installation flexibility.
Built to outperform traditional battery technologies, this unit provides up to 4000 cycles at 50% Depth of Discharge, extending system longevity while reducing replacement costs. Housed in a robust casing and weighing approximately 27.8kg, it delivers powerful, maintenance-free performance with minimal space requirements.
Key Features:
Stable Voltage Platform: 25.6V nominal with 29.2V charge cut-off
Extended Cycle Life: Up to 4000 cycles at 50% Depth of Discharge
High Energy Output: 5.12kWh storage capacity per module
Wall Mountable Design: Efficient use of vertical space for clean installs
Expandable System: Supports 4 series and 4 parallel connections
Durable Construction: Engineered for long-term stability and safety
Maintenance-Free: No acid, fume emissions, or fluid level checks required
24-Month Warranty: Backed by manufacturer protection for peace of mind

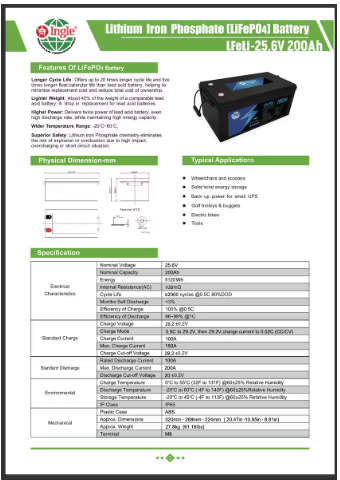

Technical Specifications:
Battery Type: Lithium Iron Phosphate (LiFePO)
Nominal Voltage: 25.6V
Rated Capacity: 200Ah
Energy Output: 5.12kWh
Charge Cut-Off Voltage: 29.2V
Cycle Life: 4000+ (at 50% DOD)
Installation Type: Wall-mountable
Scalability: Up to 4S4P configuration
Dimensions (mm): 522 x 240 x 222
Weight: ~27.8kg
What's in the Box:
1 x 25.6V 200Ah Wall-Mount LiFePO Battery Module
