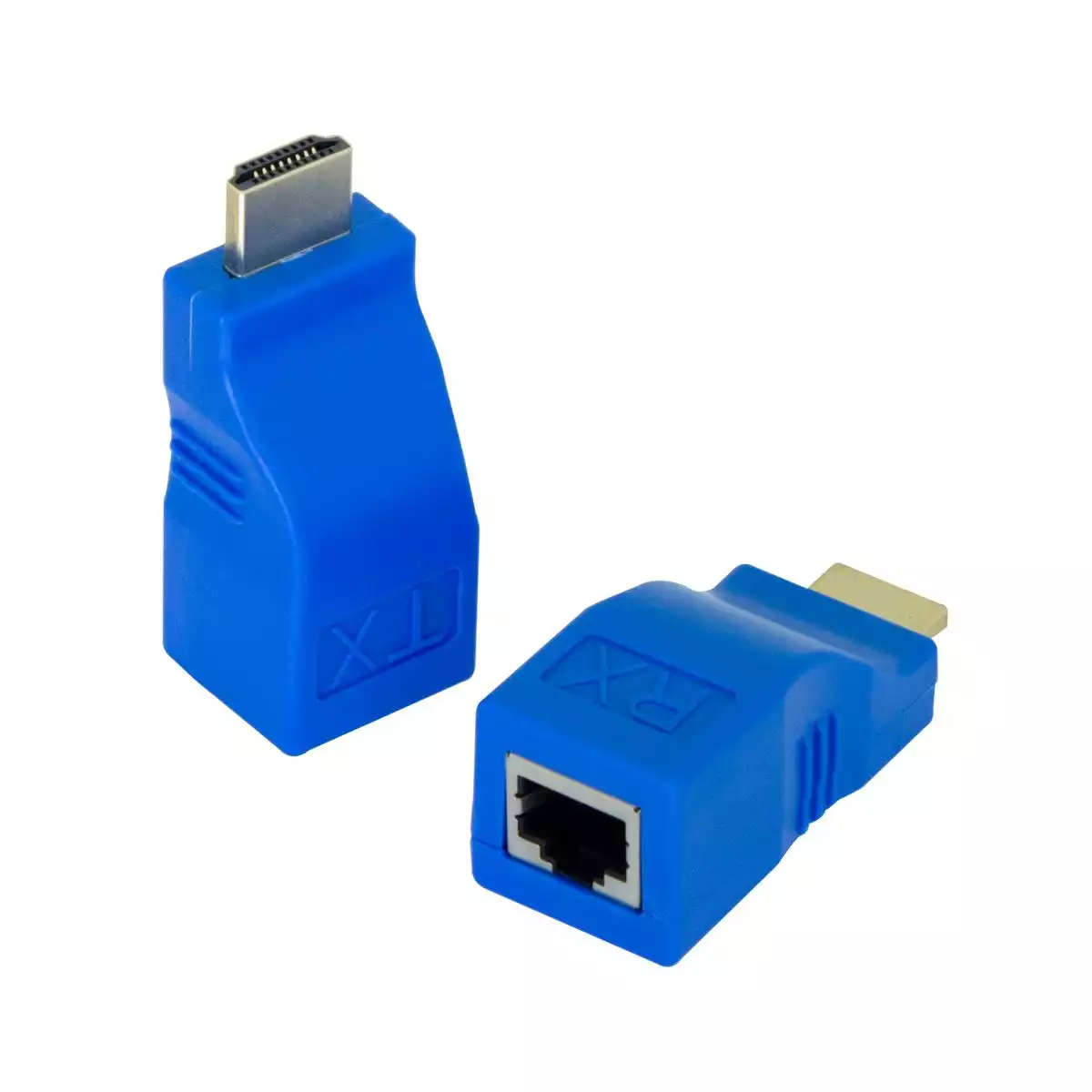

Inline HDMI Extender Over CAT6 Network Cable up to 30 Meter

Inline HDMI Extender Over CAT6 Network Cable up to 30 Meter - Full HD 1080p

This HDMI Extender over Single Cat5e/6 extends high definition video and audio signals, at a distance of up to 30m for Full HD (1080p) over a single Cat5e/6A HCCA cable.

Transmission distances will vary based on quality of network cable used e.g CCA vs Full Copper CAT6 or CAT5e vs CAT6.

Features

• Support video input : 1080p/1080i/720p/576p/576i/480p/480i
• Signal transmission :Single CAT-5e STP or CAT-6A HCCA(recommended) cables up to 30 meters instead of HDMI cables are connected between TX and RX Extender.
• Support video output : 1080p/1080i/720p/576p/576i/480p/480i
• No loss of quality
• Installs in minutes

Installing the HDMI Extender Over CAT5e/CAT6A HCCA:

• Switch off All Equipment during Connections
• Plug the transmitter into the HDMI input source such as a DSTV Explora, PS4 etc.
• Connect a CAT6A HCCA cable to both the output of the transmitter and input of the receiver.
• Plug the HDMI receiver into the HDMI display such as: TV, Projector etc.
• Power on All Equipment

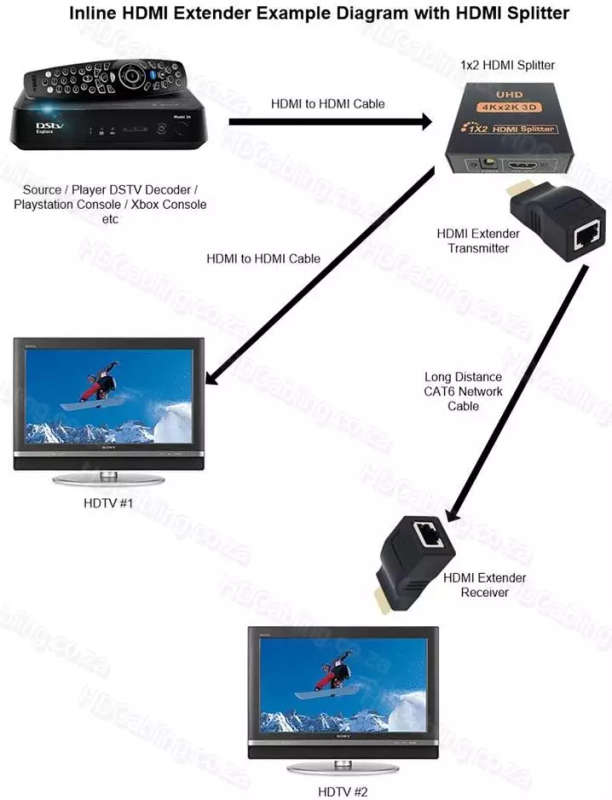

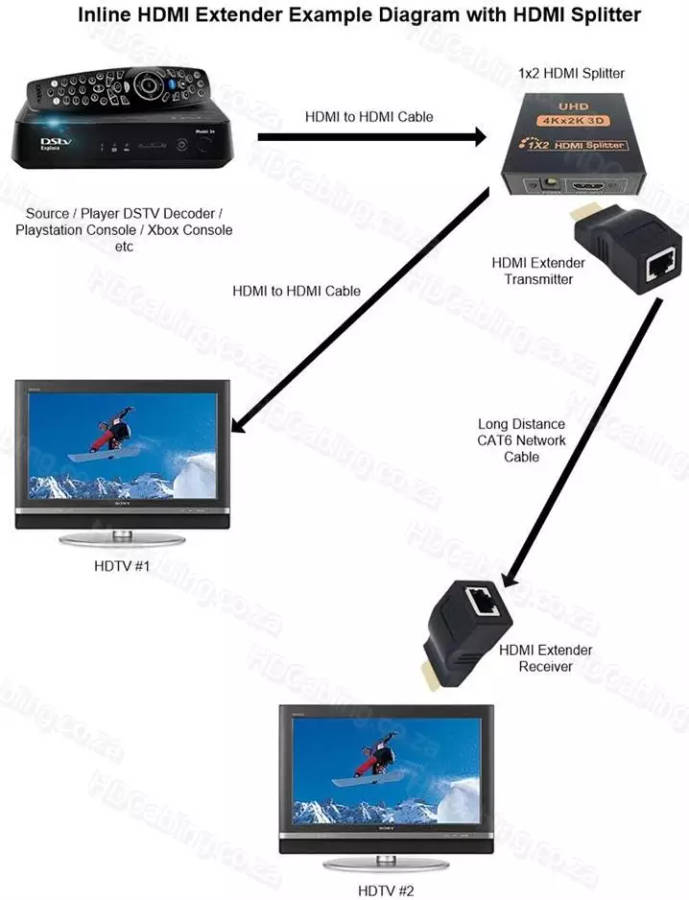

Sample Installation Diagram

Contents

1x HDMI Over CAT5e/6 Transmitter
1x HDMI Over CAT5e/6 Receiver

Cheaper CAT6 CCA Ethernet Network Cable as below can be used with this extender but only to about 60% of the max distance indicated on extender. For Full Distance installations and best transmission CAT6A HCCA Cable is recommended as below
