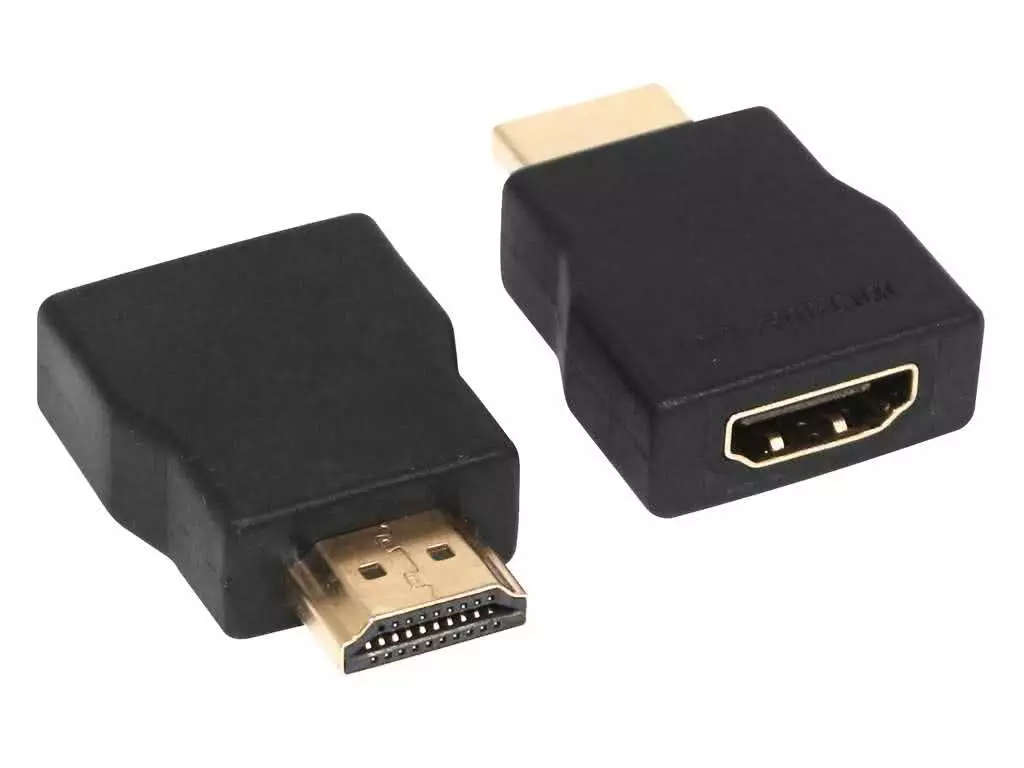

Inline HDMI Surge Protector (Male to Female Standard HDMI Type A)

Inline HDMI Surge Protector (Male to Female Standard HDMI Type A)

The Inline HDMI surge protector offers protection to your  HDMI devices like PS3, HDTV, HDPVR from HDMI ESD and HDMI surge damage from  other connected devices. It is highly recommended for any HDMI Splitter, Switch  or extender installation to ensure protection on devices HDMI Ports. It will  protect against upstream or downstream HDMI ESD Spikes that occurs from sources  to HDMI Equipment or from HDTV HDMI Port. It can also supply adequate power to  the back-end HDMI devices.   This protector will help against surges but cannot fully  protect against lightning or large ESD spikes. When lightning is nearby or you  are going away on holiday, power-off and unplug your electronic equipment to  protect it against natural disasters.

HDMI ESD protector

ESD(Electrostatic  Discharge) is a very normal phenomenon in daily life. ESD will lower the lifetime  of electric components and can directly damage a product HDMI Port on HDTV,  Source / Player or HDMI Equipment.   The  HDMI Surge Protector has equipped an ESD protector inside. It can protection to  your HDMI devices ports.

HDMI surge protector

HDMI surges can damage or influence an electronic device  capabilities, leading to product failure or shorter lifetime. The HDMI surge  protector offers high surge protection covering +_17KV ESD, 40A and complies to  IEC 6100042 standard. The device has many circuits and components to protect  every HDMI cable from surge.

HDMI +5V power and  Ports

The Surge Protector has a micro-HDMI Port (Type D) and  Standard HDMI Port (Type A) output to devices from source or from HDTV. The Standard  HDMI (Type A) port  +5Vpower can supply  5V, 0.5A power to backend HDMI devices.

Feature

• Compliant with HDM1.4HDCP.
• Protect HDMI Input and Output for ESD and lighting surge.
• Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
• Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
• Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).
• Spark voltage/Current protection.

Specifications

• Input 1 x HDMI Male port
• Output 1 x HDMI Female port
• Operating Temperature Range: 0°C ~ 40°C / 32°F ~ 104°F
• Operating Humidity Range: 5 to 90 % RH (no condensation)
• Dimensions: 39mmL×26mmW×12mmH
• Weight: 25g

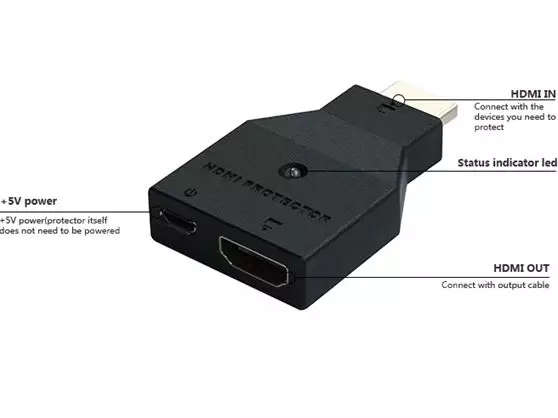

Usage

Port  Specifications
