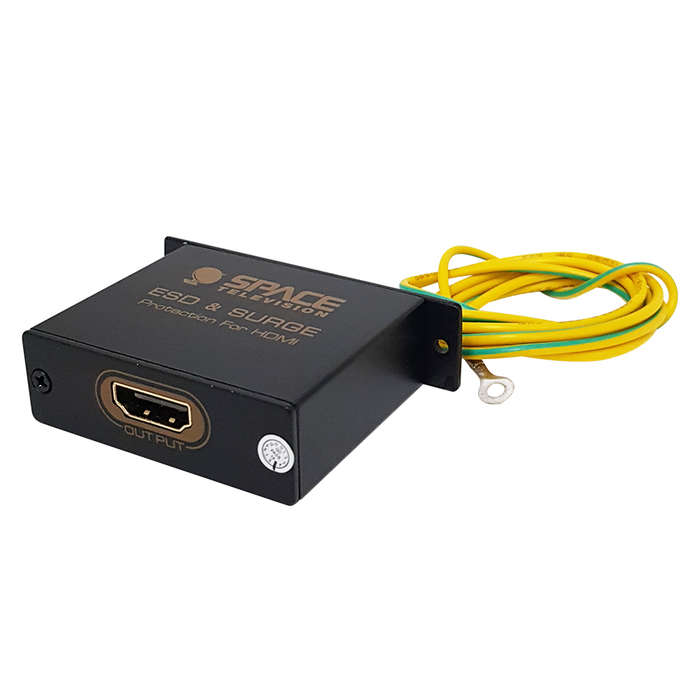

Space TV Inline HDMI Surge Protector

Product SpecificationsThe HDMI Surge Protector was specifically designed for the HDMI Interface. Itwill withstand up to and including 8KV of voltage surge. This device will act asthe final defense for protection from intruding voltage spikes that may damageHDMI components. Made for HDMI. This in-line surge protector was made for HDMI It is active onall balanced line TMDS channels, including the clock channel. IEC Standard. This product prevents itself from becoming damaged so that itcan prevent the device attached to it from becoming damaged. Protection benefits on both input and output stages (protecting both sourceand sink) EC 61000-4-2 ESD Protection Specification Maximum Spike Protection of 8KV Minimal TMDS Signal Loss Easy In-Line application design No Power Required passive designAdditional Features Operating Temperature Range 0 to 350C (32 to +950F) Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5volts p-p (TTL) Operating Humidity Rang 5 to 90% RH ( no condensation) Dimensions 65mmLx46mmWx25mmH /2.6"Lx1.8"Wx1.0"H Mass (Main Unit) 80g/2.8oz
