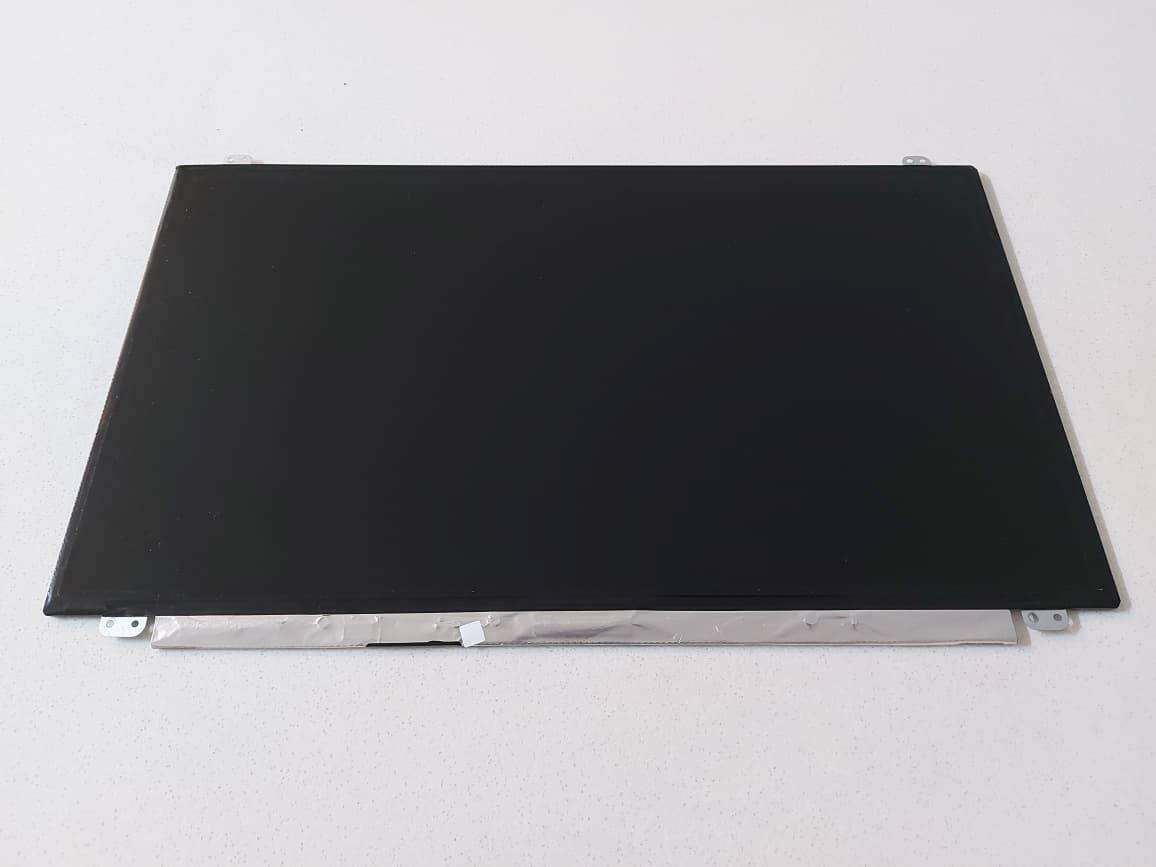

Innolux N156HGE-LG1 panel:
Brand: Innolux
Model P/N: N156HGE-LG1
Diagonal Size: 15.6"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920×1080 (FHD), 141 PPI
Pixel Format: RGB Vertical Stripe
Active Area: 344.16 × 193.59 mm
Bezel Opening:
Outline Dimensions: 359.5(H) × 223.8(V) × 3.4(D) mm
Surface Treatment: Antiglare, Hard coating (3H)
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 600:1 (Typ.)
View Direction: 6 oclock
Response Time: 3/8 ms (Typ.) (Tr/Td)
Viewing Angle: 70/70/60/60° (Left/Right/Up/Down, CR10)
Operating Mode: TN, Normally White, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Support Color: 262K (60% NTSC)
Light Source: WLED (6 strings), 12K hours, with LED driver
Form Style: Slim (PCBA Flat, T3.2mm)
Designed For: Laptop
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (2 ch, 6-bit), 40-pin connector
Power Supply: 3.3V (Typ.)
Environment:
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C
Innolux N156HGE-LG1 compatible models:
N156HGE-LA1
N156HGE-LB1
N156HGE-LG1
