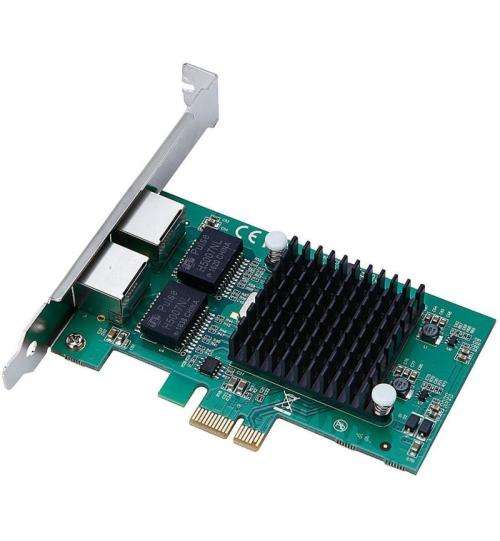

PCIE1X 1G SERVER LAN CARD FOR INTEL82575 - TXA020
Model Number: TXA020
Chipset: Intel 82575 Gigabit Controller
Port Number: 2 x RJ45 Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rate: 10/100/1000Mbps
Interface: PCI-Express 1x slot
LED Indicator: 4LED 10/100/1000Mbps(Link/Act)
Dimension: 105.5 x 68.6 x 17.5mm
Support OS: Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit)
Microsoft Windows 2000 Red Hat Linux 2.4x or later (32- and 64-bit)
FreeBSD 4.x or later Novell Netware 5.x, 6.x
Sun Solaris x86, OS 8 and later SCO Open Server 5, Open UNIX 8
Environment:
Operating Temperature: 0 ?-55 ?
Relative Humidity: 10%-90% (non-condensing)
Storage Temperature: -0?-80?
Relative Humidity: 5%-90% (non-condensing)
Other Features: Load balancing on multiple CPUs
Interrupt moderation
Compatible with x4, x8, and x16 full-height PCI Express slots
Support for most network operating systems (NOS)
Remote management support
Category-5 unshielded twisted pair (UTP), 4-pair Cabling
RoHS compliant, lead-free technology
Intel PRO Set Utility for Microsoft Device Manager
Advanced Cable diagnostics Intel backing
Features:
Uses x4 PCI Express interface on MCH device
Peak bandwidth 2 GB/s in each direction per PCI Express Lane
PCI Express Power Management
High bandwidth density per pin
IEEE 802.3x compliant flow control support with software controllable pause times and threshold values
Support for transmission and reception of packets up to 9.5 Kb
IEEE 802.3x compliant flow control support with software controllable pause times and threshold values
Operates with worst-case cable
Supports carrier extension and packet bursting (half duplex)
Advanced Power Management - Low power link up "Smart Power Down - Link disconnect
Support for limited auto MDIO register init - limited number of registers
SERDES Signal Detect and support of non-AN partner
Auto crossover for MDI
Smart Power Down
Transmit and receive IP, TCP and UDP checksum off-loading capabilities
IEEE 802.1q VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Double Vlan
