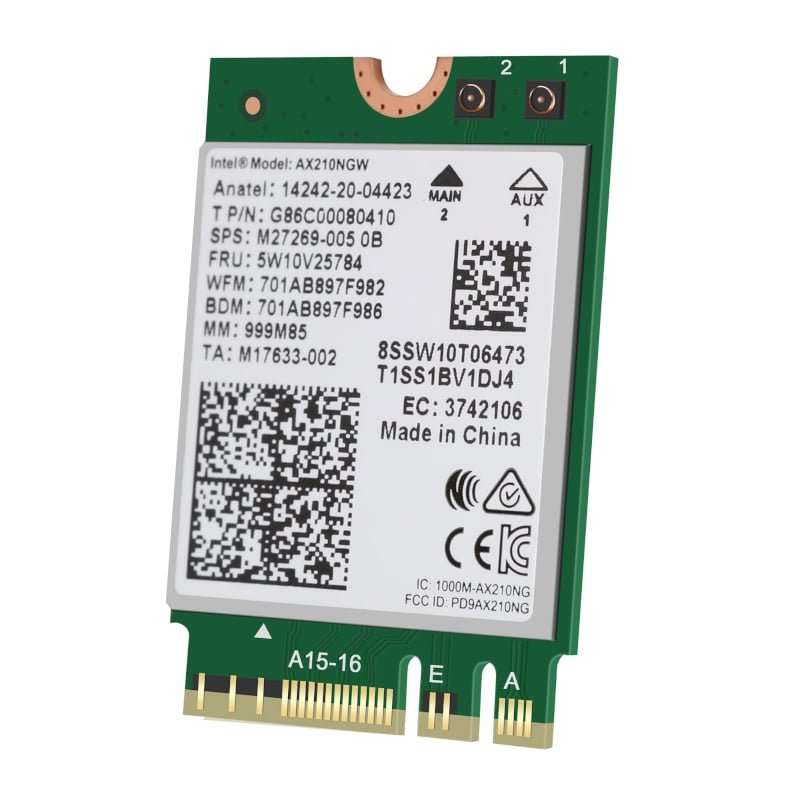

Intel AX210 M.2 Wifi Card Module

Please note that items with a stock quantity of 2 or fewer units are considered low stock. We strongly recommend contacting us prior to placing your order to confirm availability.

We cannot accept responsibility for any inconvenience, delays, or order cancellations resulting from purchases made on low-stock items without prior inquiry.

Please contact us before checkout we're happy to assist and confirm stock for you.

The Intel® Wi-Fi 6E AX210 (Gig+) adapter is designed to support Wi-Fi 6E technology and related Wi-Fi Alliance certification. The product supports dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands as well as Bluetooth® 5.3. It also supports Wi-Fi 6 R2 features, including UL MU-MIMO. These new features maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across new radio frequencies exclusive to Wi-Fi 6E devices, and deliver a significant improvement in user experience in dense deployments. Combined with Intel® Core processors and exceptional Intel wireless innovations, the Intel® Wi-Fi 6E AX210 module can dramatically improve your connected experience at home, work, or on the go.

Intel® Wi-Fi 6E AX210 module supports legacy Wi-Fi 4, 5, 6, and Wi-Fi 6E and is designed to support Wi-Fi 6 R2 features. By implementing Wi-Fi 6E technology supporting the 6GHz band that includes 1200MHz of new contiguous spectrum (>2x compared to 5GHz) with more Gigabit Wi-Fi options and exclusivity to Wi-Fi 6 products, the Intel® Wi-Fi 6E AX210 module maximises Wi-Fi 6 and Gigabit Wi-Fi benefits, enabling greater network flexibility, faster downloads, sharing, and backups, as well as reduced latency and improved reliability.

When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, the Intel® Wi-Fi 6 AX210 module can deliver nearly 3x higher peak data rates (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments compared to Wi-Fi 5.

FEATURES:

• Greater Network Flexibility
• Faster Speed
• Reduced Latency
• Wi-Fi 6E Tri-Band 2x2 160MHz
• Bluetooth® 5.2
• Microsoft Windows
• Form Factors (M.2 2230 and 1216)

SPECIFICATIONS:

• Connector Interface: M.2: PCIe*, USB
• Wi-Fi Alliance: Wi-Fi CERTIFIED 6 with Wi-Fi 6E, Wi-Fi CERTIFIED  a/b/g/n/ac, WMM , WMM -Power Save, WPA3 , PMF , Wi-Fi Direct , Wi-Fi Agile Multiband, Wi-Fi Location R2 HW readiness
• IEEE WLAN Standard: IEEE 802.11-2020 and select amendments (selected feature coverage), IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine Timing Measurement based on 802.11-2016,  802.11az HW readiness
• Bluetooth®: Bluetooth® 5.2
• Security Methods: WPA3 personal and enterprise including WPA2 transition mode
• Authentication Protocols: 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0-MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA')
• Encryption: 128-bit AES-CCMP, 256-bit AES-GCMP
• Operating Temperature (Adapter Shield): 0°C to +80°C
• Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
• Operating Systems: Microsoft Windows 11, Microsoft Windows 10, Linux
• Dimensions: M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)], M.2 1216: 12mm x 16mm x 1.7 (+-0.1) mm
• Weight: M.2 2230: 2.83 +/ 0.3 g, M.2 1216: 0.67 +/ 0.1 g

WHAT'S IN THE BOX:

• Intel® Wi-Fi 6E AX210 M.2 WIFI module - Green x1
