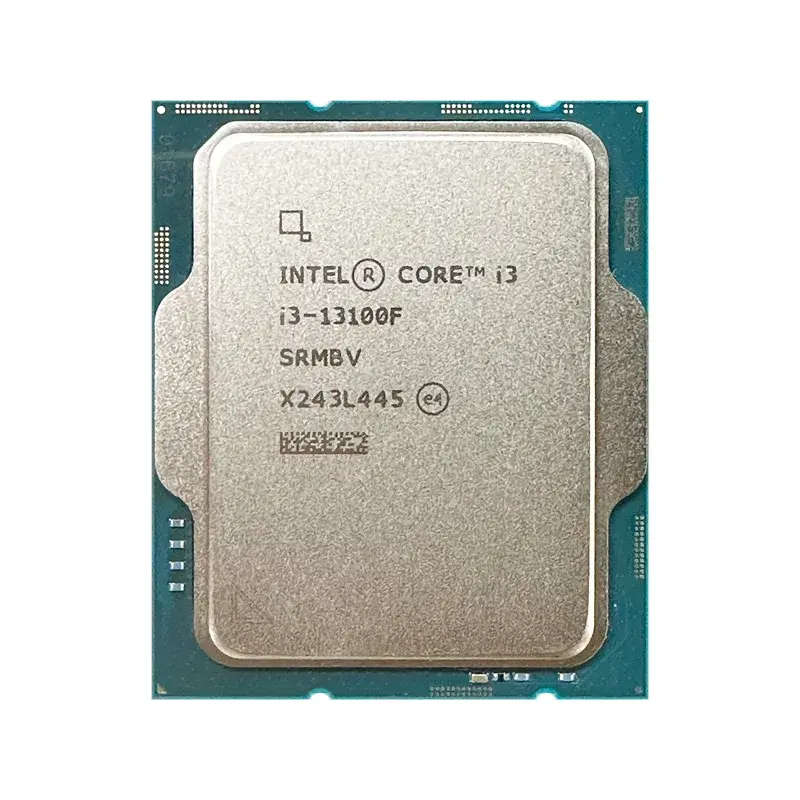

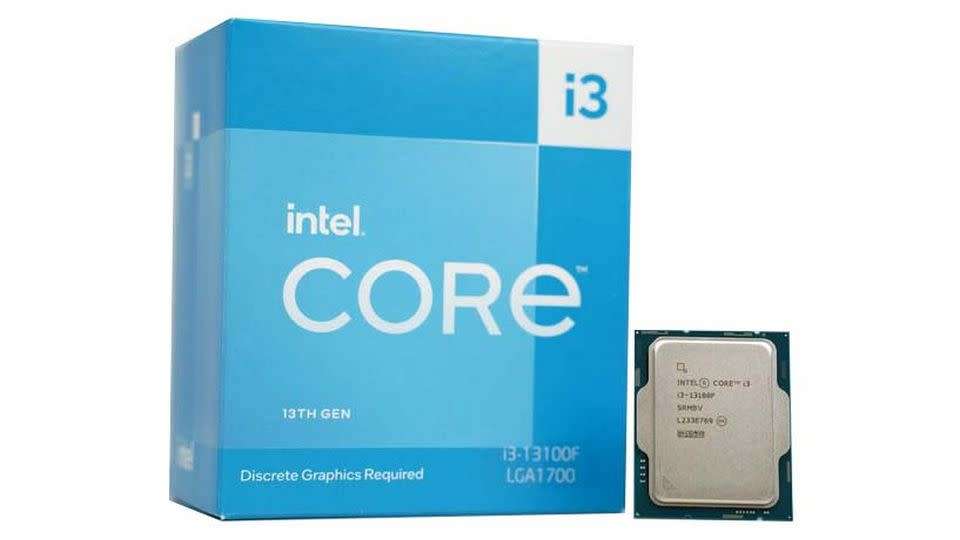

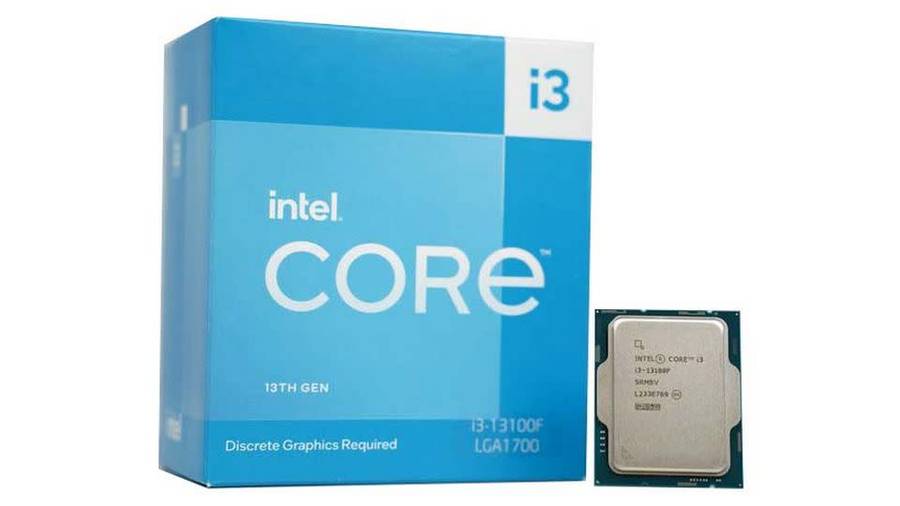

Intel® Core i3-13100F Processor (12M Cache- up to 4.50 GHz)
Essentials
Product Collection: 13th Generation Intel® Core i3 Processors
Code Name: Products formerly Raptor Lake
Vertical Segment, Desktop
Processor Number: i3-13100F
Lithography: Intel 7
CPU Specifications
Total Cores: 4
# of Performance-cores: 4
# of Efficient-cores: 0
Total Threads: 8
Max Turbo Frequency: 4.50 GHz
Performance-core Max Turbo Frequency: 4.50 GHz
Performance-core Base Frequency: 3.40 GHz
Cache: 12 MB Intel® Smart Cache
Total L2 Cache: 5 MB
Processor Base Power: 58 W
Maximum Turbo Power: 110 W
Supplemental Information
Marketing Status: Launched
Launch Date: Q1'23
Embedded Options Available: No
Use Conditions: PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20
Package Specifications
Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020C
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm
Max Operating Temperature: 100 °C
Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® OS Guard: Yes
Execute Disable Bit : Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
CPU Fan included
