CPU Only, does not include Heatsink/Fan
Includes 1x Packet Heat/Thermal Paste

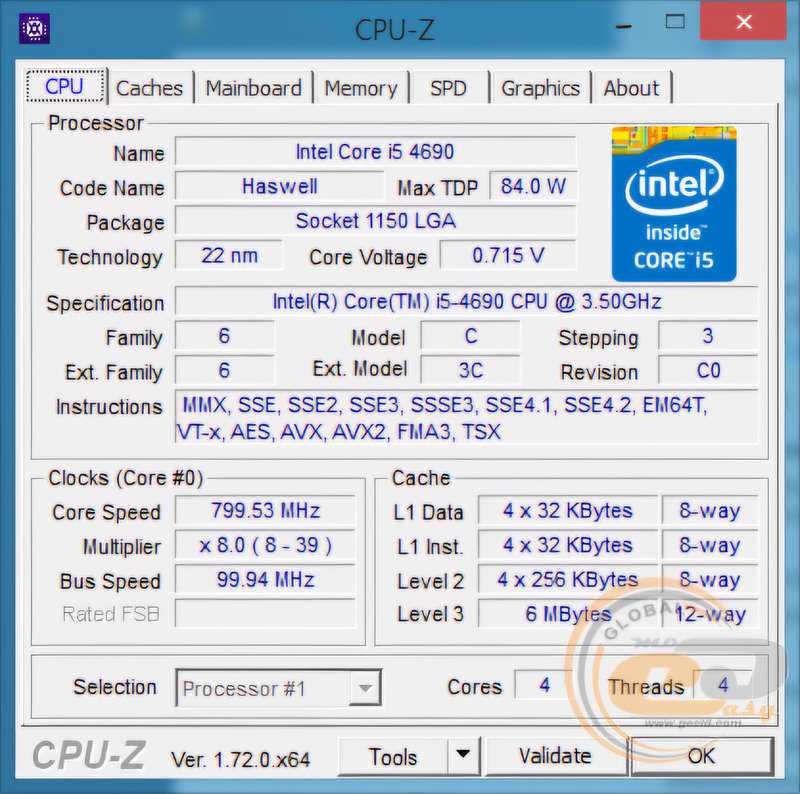

CPU Specifications
Total Cores 4
Total Threads 4
Max Turbo Frequency 3.90 GHz
Intel® Turbo Boost Technology 2.0 Frequency 3.90 GHz
Processor Base Frequency 3.50 GHz
Cache 6 MB Intel® Smart Cache
Bus Speed 5 GT/s
TDP 84 W
Processor Graphics
Processor Graphics Intel® HD Graphics 4600
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 2 GB
Graphics Output eDP/DP/HDMI/VGA
Max Resolution (HDMI) 4096x2304@24Hz
Max Resolution (DP) 3840x2160@60Hz
Max Resolution (eDP - Integrated Flat Panel) 3840x2160@60Hz
Max Resolution (VGA) 1920x1200@60Hz
DirectX* Support 11.2/12
OpenGL* Support 4.3
Intel® Quick Sync Video Yes
Intel® InTru 3D Technology Yes
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported 3
Device ID 0x412
Intel vPro: yes
Package Specifications
Sockets Supported FCLGA1150
Max CPU Configuration 1
Thermal Solution Specification PCG 2013D
TCASE 72.72°C
Package Size 37.5mm x 37.5mm
