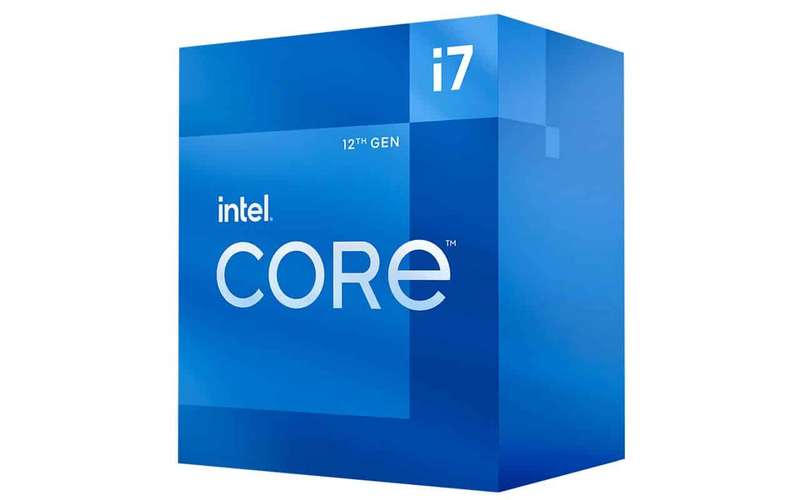

Intel Core i7 12700 Up to 4.9 GHZ

Unleash Unprecedented Power with the Intel Core i7 12700 Up to 4.9 GHZ

SPECIFICATIONS

Vertical Segment: Desktop

Processor Number: i7-12700

Lithography: Intel 7

Use Conditions: PC/Client/Tablet

Total Cores: 12

# of Performance-cores: 8

# of Efficient-cores: 4

Total Threads: 20

Max Turbo Frequency: 4.90GHz

Intel® Turbo Boost Max Technology 3.0 Frequency: 4.90GHz

Performance-core Max Turbo Frequency: 4.80GHz

Efficient-core Max Turbo Frequency: 3.60GHz

Performance-core Base Frequency: 2.10GHz

Efficient-core Base Frequency: 1.60GHz

Cache: 25MB Intel® Smart Cache

Total L2 Cache: 12MB

Processor Base Power: 65W

Maximum Turbo Power: 180W

Supplemental Information

Embedded Options Available: No

Memory Specifications

Max Memory Size (dependent on memory type): 128GB

Memory Types:

• - Up to DDR5 4800 MT/s
• - Up to DDR4 3200 MT/s

Max # of Memory Channels: 2

Max Memory Bandwidth: 76.8 GB/s

Processor Graphics

Processor Graphics: Intel® UHD Graphics 770

Graphics Base Frequency: 300MHz

Graphics Max Dynamic Frequency: 1.50GHz

Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units: 32

Max Resolution (HDMI): 4096 x 2160 @ 60Hz

Max Resolution (DP): 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz

DirectX Support: 12

OpenGL Support: 4.5

Multi-Format Codec Engines: 2

Intel® Quick Sync Video: Yes

Intel® Clear Video HD Technology: Yes

# of Displays Supported: 4

OpenCL Support: 2.1

Expansion Options

Direct Media Interface (DMI) Revision: 4.0

Max # of DMI Lanes: 8

Scalability: 1S Only

PCI Express Revision: 5.0 and 4.0

PCI Express Configurations: Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes: 20

Package Specifications

Sockets Supported: FCLGA1700
