With an increase in core count, Intel 13th Gen processors continue to utilize Intel's performance hybrid architecture to optimize your gaming, content creation, and productivity. Leverage industry-first bandwidth of up to 16 PCIe 5.0 lanes and DDR5 memory up to 5600 MT/s. Supercharge your CPU performance with a powerful suite of tuning and overclocking tools. Enjoy your favourite experiences in up to 4 simultaneous 4K@60Hz displays or up to 8K@60Hz HDR Video with dynamic noise suppression. Support for the Intel® 700 series chipsets and backwards compatibility with the Intel® 600 series chipsets allow you to access the features you need for any task. Whether you are working, streaming, gaming, or creating, the 14th Gen Intel® Core desktop processors deliver the next generation of breakthrough performance.
The 14th Gen Intel® Core desktop processors deliver the next generation of breakthrough core performance. Intel® Turbo Boost Max Technology 3.0 further strengthens lightly threaded performance by identifying the best-performing Performance-cores. Meanwhile, additional E-cores enable an increase in Intel® Smart Cache (L3) for more efficient processing of larger data sets and better performance. The P-core and E-core L2 cache has also increased compared to the previous generation of Intel® processors, minimizing the amount of time spent swapping data between cache and memory to speed up your workflow. Unleash the power of next-level performance with the 14th Gen Intel® Core desktop processor advantage.
FEATURES:
20 Cores
28 Threads
Max Turbo Frequency of up to 5.5GHz
33MB Intel® Smart Cache
Support for DDR4 and DDR5 memory
Built for serious gaming
Best overclocking experience
Smart solutions for enthusiasts and creators
SPECIFICATIONS:
Essentials:
Product Collection: 14th Generation Intel® Core i7 Processors
Code Name: Products formerly Raptor Lake
Vertical Segment: Desktop
Processor Number: i7-14700K
CPU Specifications:
Total Cores: 20
# of Performance-cores: 8
# of Efficient-cores: 12
Total Threads: 28
Max Turbo Frequency: 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.3 GHz
Performance-core Base Frequency: 3.4 GHz
Efficient-core Base Frequency: 2.50 GHz
Cache: 33 MB Intel® Smart Cache
Total L2 Cache: 28 MB
Processor Base Power: 125 W
Maximum Turbo Power: 253 W
Memory Specifications:
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 89.6 GB/s
Processor Graphics:
Processor Graphics: Intel® UHD Graphics 770
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.60 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 32
Max Resolution (HDMI): 4096 x 2160 @ 60Hz
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP Integrated Flat Panel): 5120 x 3200 @ 120Hz
DirectX* Support: 12
OpenGL* Support: 4.5
OpenCL* Support: 3.0
Multi-Format Codec Engines: 2
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported: 4
Expansion Options:
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes: 20
Advanced Features:
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel® Standard Manageability (ISM): Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® OS Guard: Yes
Intel® Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
WHAT'S IN THE BOX:

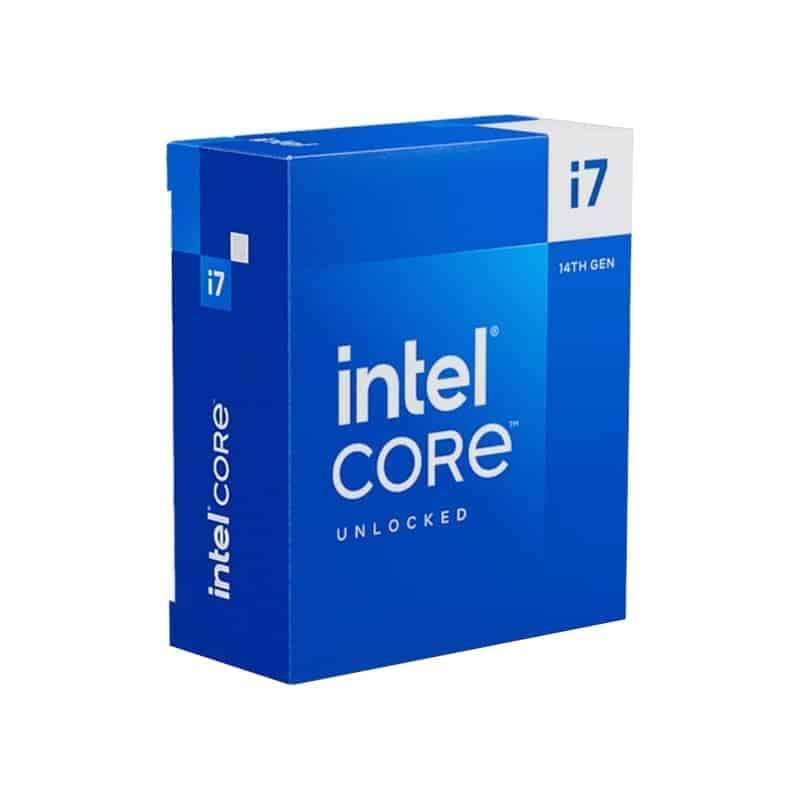

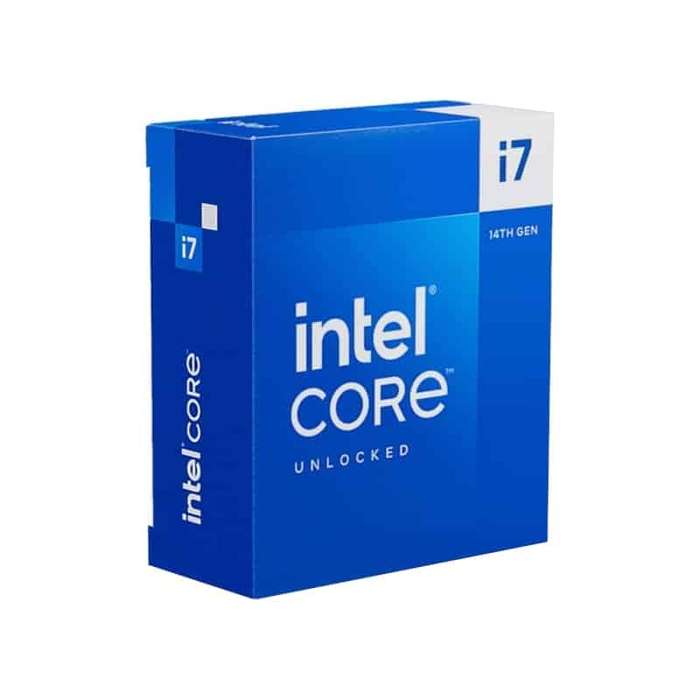

Intel 14th Gen Core i7-14700K LGA1700 3.4GHz 16-Core CPU x1
