Essentials
Product Collection,Legacy Intel® Desktop Boards
Code Name,Products formerly Tom Cove
Discrete Graphics,PCIe x16
Board Chipset,Intel® H55 Express Chipset
Supplemental Information
Marketing Status,Discontinued
Launch Date,Q4'09
Datasheet,View now
Memory & Storage
Max Memory Size (dependent on memory type),16 GB
# of Memory Slots,4
Memory Types,DDR3 1066/1333
Max # of Memory Channels,2
ECC Memory Supported ,No
I/O Specifications

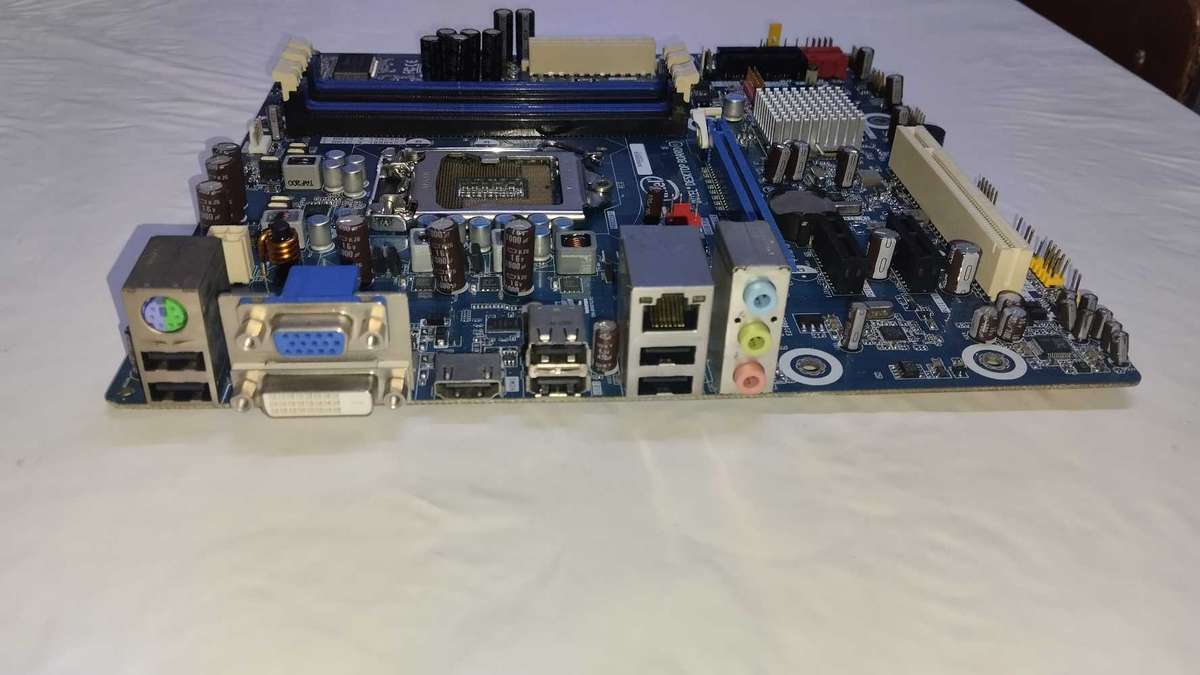

Graphics Output,HDMI | DVI-D | VGA
# of Displays Supported ,2
USB 2.0 Configuration (External + Internal),6+6
Total # of SATA Ports,6
# of eSATA Ports,0
RAID Configuration,N/A
# of Serial Ports,0
Serial Port via Internal Header,Yes
Audio (back channel + front channel),6+2
S/PDIF Out Connector,1
Integrated LAN,10/100/1000
Firewire,0+0
# of PATA Ports,0
# of Parallel Ports,0
Parallel Port via Internal Header,Yes
# of PS2 Ports,1
Expansion Options
PCI Support,1
PCIe x1 Gen 2.x,2
PCIe x4 Gen 2.x,0
PCIe x8 Gen 2.x,0
PCIe x16 Gen 2.x,1
Package Specifications
Max CPU Configuration,1
Board Form Factor,microATX
Advanced Technologies
Intel® Remote Wake Technology,Yes
Intel® CIRA Technology,No
Intel® Quiet System Technology,Yes
Intel® HD Audio Technology,Yes
Intel® Matrix Storage Technology,No
Intel® Virtualization Technology for Directed I/O (VT-d) ,No
Security & Reliability
TPM,No
Intel® ME Firmware Version,N/A
Intel® Trusted Execution Technology ,No
Intel® Remote PC Assist Technology,No
Anti-Theft Technology,No
