LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
The motherboard is in daily use and excellent condition - comes with original packaging and accessories (I/O Shield/Plate).
For Motherboard, CPU's, Graphics Cards and other components, see my other adds here
This motherboard is compatible with 2nd and 3rd generation Intel I-Core Processors - details may be verified here

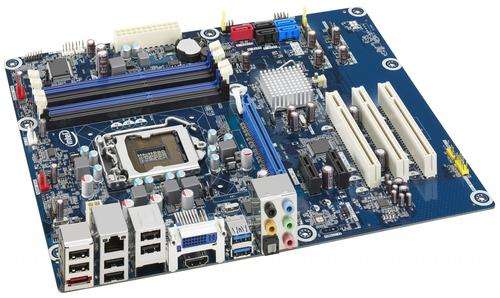

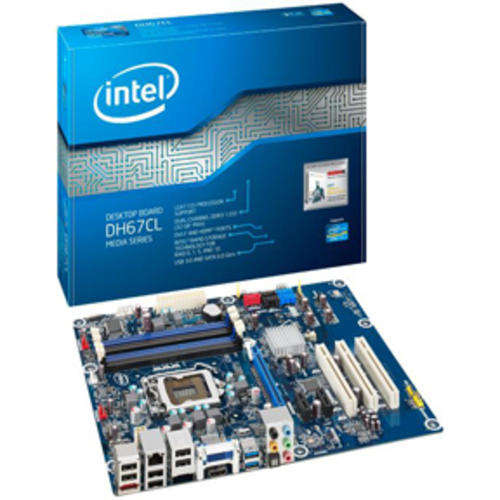

The Intel Desktop Board DH67CL is an Intel H67 Express chipset-based desktop board in ATX form factor to fully support the 2nd & 3rd generation Intel Core processors in the LGA1155 package. Powered by the 2nd/3rd generation Intel Core processors with built-in visuals, the DH67CL delivers a superb visual performance for gaming, HD video content, and 3D graphics. It also offers DVI-I and HDMI video connectors along with dual independent display support, and premium features such as two SATA 6Gb/s ports and two USB 3.0 ports. For expansion capacities, the DH67CL provides one PCI Express 2.0 x 16 discrete graphics card slot, two PCI Express 2.0 x 1 and three PCI slots for maximum compatibility for peripherals. This ATX board provides new levels of protection, performance, and expandability.
Model Brand: Intel
Model: DH67CL
Supported CPU
CPU Socket Type: LGA 1155
CPU Type: Core i7 / i5 / i3 (LGA1155) see here
Chipsets
Chipset: Intel H67
Memory
Number of Memory Slots: 4×240pin
Memory Standard: DDR3 1333/1066
Maximum Memory Supported: 32GB
Channel Supported: Dual Channel
Expansion Slots
PCI Express 2.0 x16: 1 x PCI Express 2.0 x16
PCI Express x1: 2 x PCI Express x1
PCI Slots: 3 x PCI Slots
Storage Devices
SATA 3Gb/s: 3 (1 x SATA 3.0Gb/s ports compatible with eSATA for back panel extension)
SATA 6Gb/s: 2 x SATA 6Gb/s
SATA RAID: 0/1/5/10
Onboard Video
Onboard Video Chipset - Supported only by CPU with integrated graphic
Onboard Audio
Audio Channels: 10 (7.1+2) channels
Onboard LAN
Max LAN Speed: 10/100/1000Mbps
Rear Panel Ports
Video Ports: 1 x DVI, 1 x HDMI
USB 3.0: 2 x USB 3.0
USB 1.1/2.0: 6 x USB 2.0
eSATA: 1 x eSATA 3Gb/s
S/PDIF Out: 1 x Optical
Audio Ports: 5 Ports
Internal I/O Connectors
Onboard USB: 8 x USB 2.0
Physical Spec
Form Factor: ATX
Dimensions (W x L): 11.6" x 9.6"
Power Pin: 24 Pin
