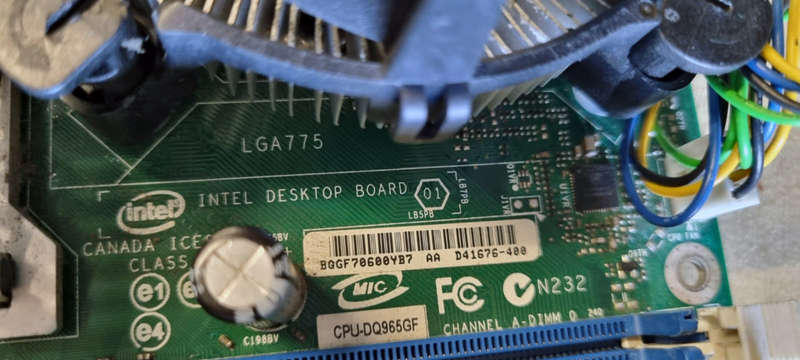

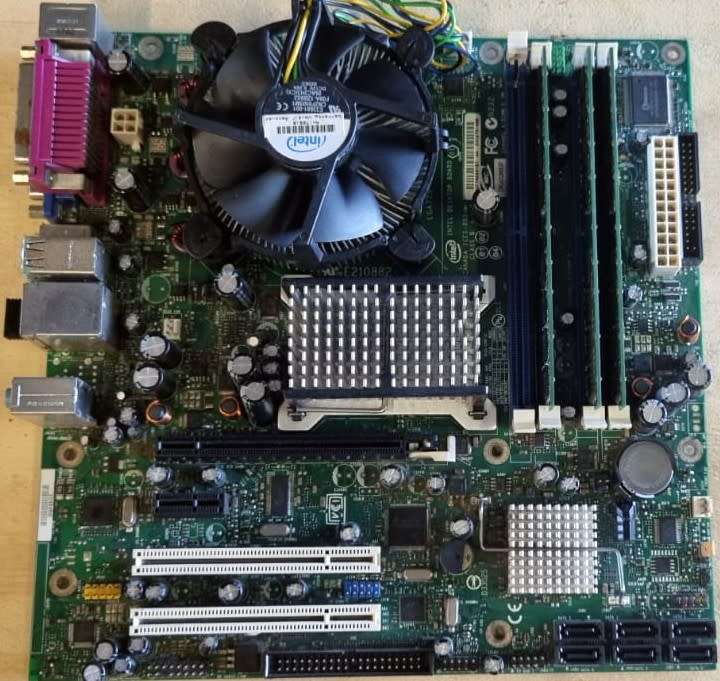

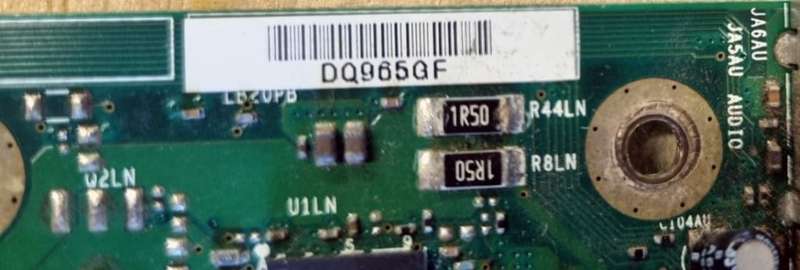

Intel Motherboard - DQ965GF

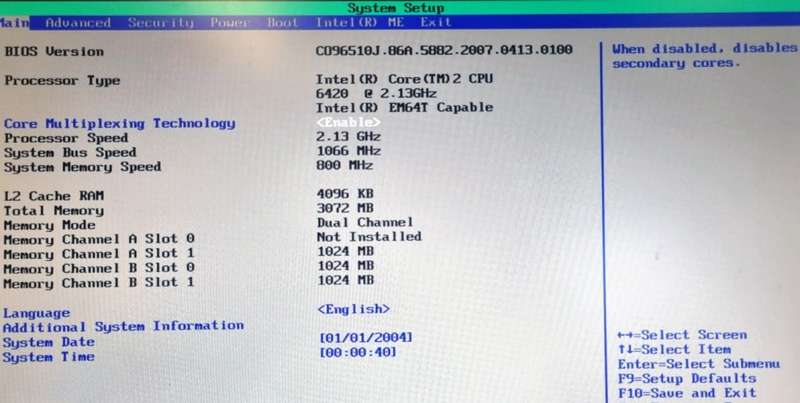

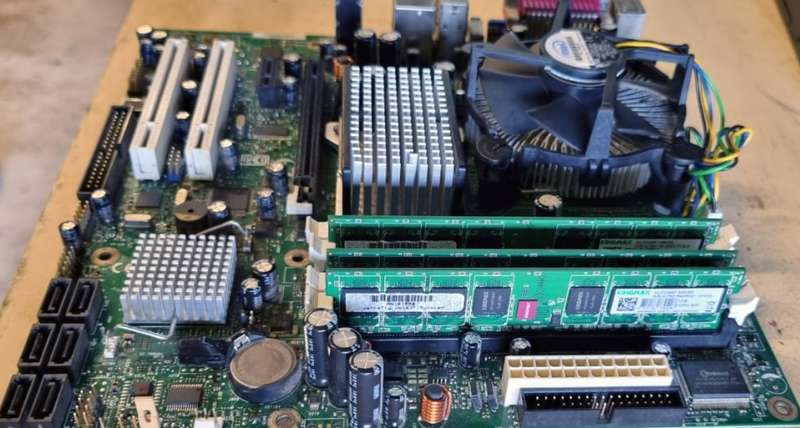

Board includes an Intel Core2 6420 2.13GHz CPU as well as 3GB of memory. It was tested as working with the aforementioned components but everything is sold voetstoots.

Form Factor:

microATX Form Factor (9.60 inches by 9.60 inches [243.84mm x 243.84mm])

Processor Support for the following:

Intel® Core2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus

Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus

Memory

Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets

• Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs
• Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs
• Support for up to 4 GB of system memory using DDR2 800 DIMMs

Chipset Intel® Q965 Express Chipset

• Intel® 82Q965 Graphics Memory Controller Hub (GMCH)
• Intel® 82801HO I/O Controller Hub (ICH8DO)
• Video Intel® GMA 3000 onboard graphics subsystem
• Audio 6-channel (5.1) audio subsystem using the SigmaTel* STAC9227 audio codec
• Legacy I/O Control Legacy I/O controller for diskette drive, serial, parallel, and optional PS/2* ports
• USB Support for USB 2.0 devices

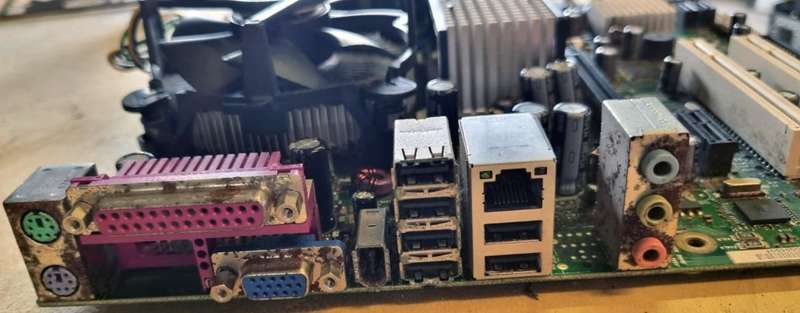

Peripheral Interfaces

• 10 USB ports
• One serial port
• One parallel port
• Six Serial ATA interfaces
• One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
• One diskette drive interface
• LAN Support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DM
• Gigabit Ethernet Controller
