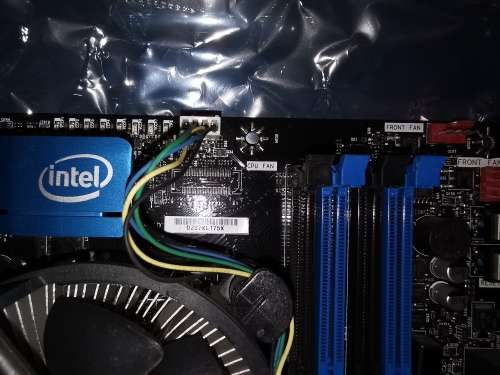

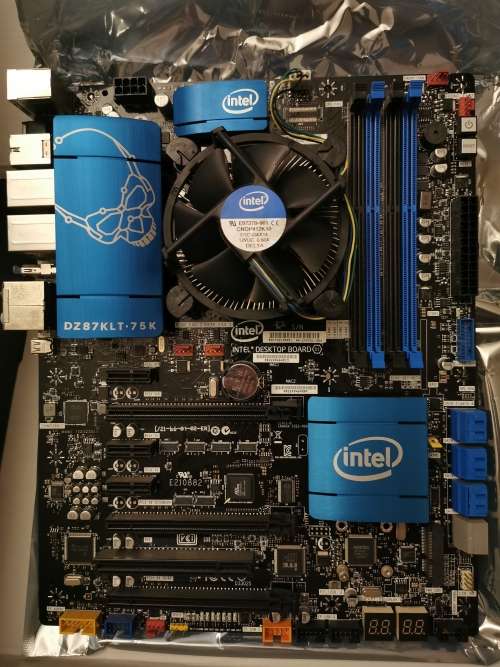

Intel DZ87KLT-75K Mainboard with i7-4770 CPU

General:
Board Form Factor: ATX
Socket: LGA1150
TDP: 150 W
Back-to-BIOS Button: Yes



Memory:
Max Memory Size: 32 GB
Memory Types: DDR3 1333/1600
Max # of Memory Channels: 2
Max # of DIMMs: 4
ECC Memory Supported: No



Expansion Options:
PCI Support: 1
PCIe x8 Gen 3: 1
PCIe x16 Gen 3: 1
PCIe x1 Gen 2.x: 3
PCIe x4 Gen 2.x: 1
PCIe Mini Card Slot: 1



I/O Specifications:
USB Ports: 16
USB 2.0 Configuration (External + Internal): 2, 6
USB 3.0 Configuration (External + Internal): 6, 2
SATA Ports: 8
SATA 6.0 Gb/s Ports: 8
RAID Configuration: 0,1,5,10
Audio (back channel + front channel): 8, 2
Integrated LAN: 10/100/1000 Mbps
Firewire: 1
Consumer Infrared Rx Sensor: Yes
S/PDIF Out Connector: 1
PS2 Ports: 1



Advanced Technologies:
Intel® HD Audio Technology: Yes
Intel® Matrix Storage Technology: Yes
Intel® Rapid Storage Technology: Yes
