Intel i3 4170 Socket 1150 - Includes Socket 1150 Stock Cooler & Thermal Grease

Includes Socket 1150 Stock Cooler & Thermal Grease

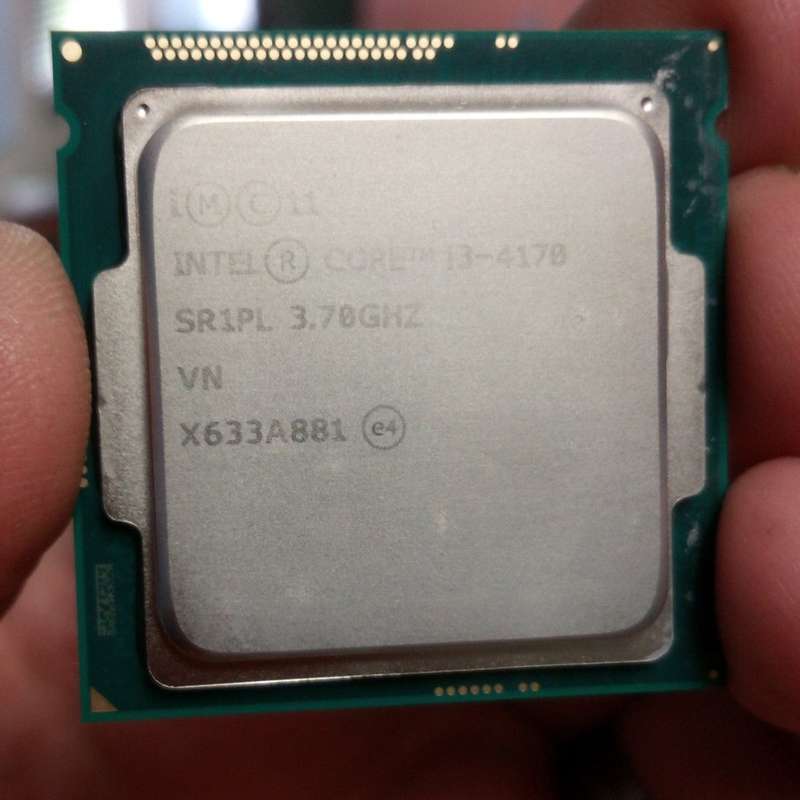

Intel i3 4170 Socket 1150

Processor Number
i3-4170
Status
End of Life
Launch Date
Q1'15
Lithography
22 nm
Recommended Customer Price
$117.00
Performance
# of Cores
2
# of Threads
4
Processor Base Frequency
3.70 GHz
Cache
3 MB
Bus Speed
5 GT/s DMI2
TDP
54 W
Supplemental Information
Embedded Options Available
No
Conflict Free
Yes
Datasheet
View now
Learn how Intel is pursuing conflict-free technology.
Memory Specifications
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V
Max # of Memory Channels
2
Max Memory Bandwidth
25.6 GB/s
ECC Memory Supported ‡
Yes
Graphics Specifications
Processor Graphics ‡
Intel® HD Graphics 4400
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.15 GHz
Graphics Video Max Memory
2 GB
Graphics Output
eDP/DP/HDMI/DVI/VGA
Max Resolution (HDMI 1.4)‡
4096x2304@24Hz
Max Resolution (DP)‡
3840x2160@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡
3840x2160@60Hz
Max Resolution (VGA)‡
1920x1200@60Hz
DirectX* Support
11.1/12
OpenGL* Support
4.3
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
3
Device ID
0x41E
Optimize popular games to play on Intel Graphics
Expansion Options
Scalability
1S Only
PCI Express Revision
Up to 3.0
PCI Express Configurations ‡
Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1150
Max CPU Configuration
1
Thermal Solution Specification
PCG 2013C
TCASE
72°C
Package Size
37.5mm x 37.5mm
Low Halogen Options Available
See MDDS
Advanced Technologies
Intel® Turbo Boost Technology ‡
No
Intel® vPro™ Technology ‡
No
Intel® Hyper-Threading Technology ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
No
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
Intel® TSX-NI
No
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
SSE4.1/4.2, AVX 2.0
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Stable Image Platform Program (SIPP)
No
Security & Reliability
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Trusted Execution Technology ‡
No
Execute Disable Bit ‡
Yes
