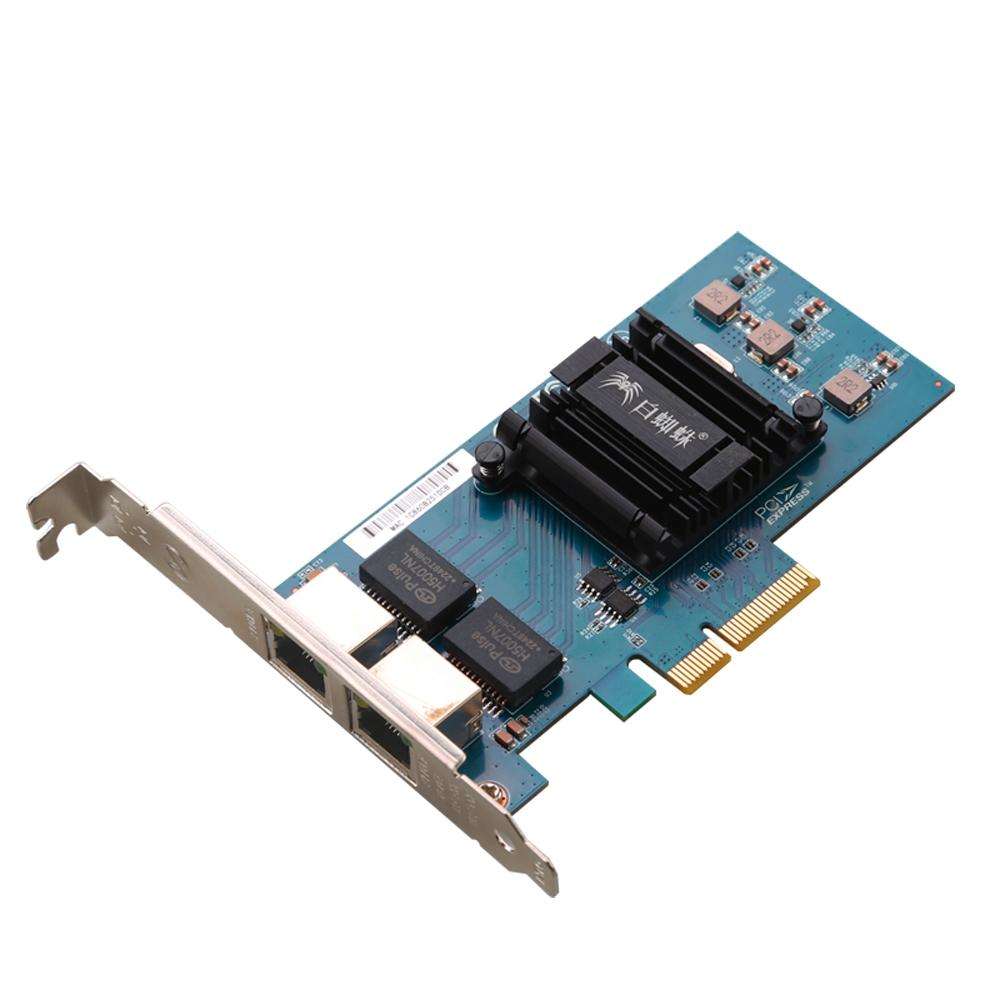

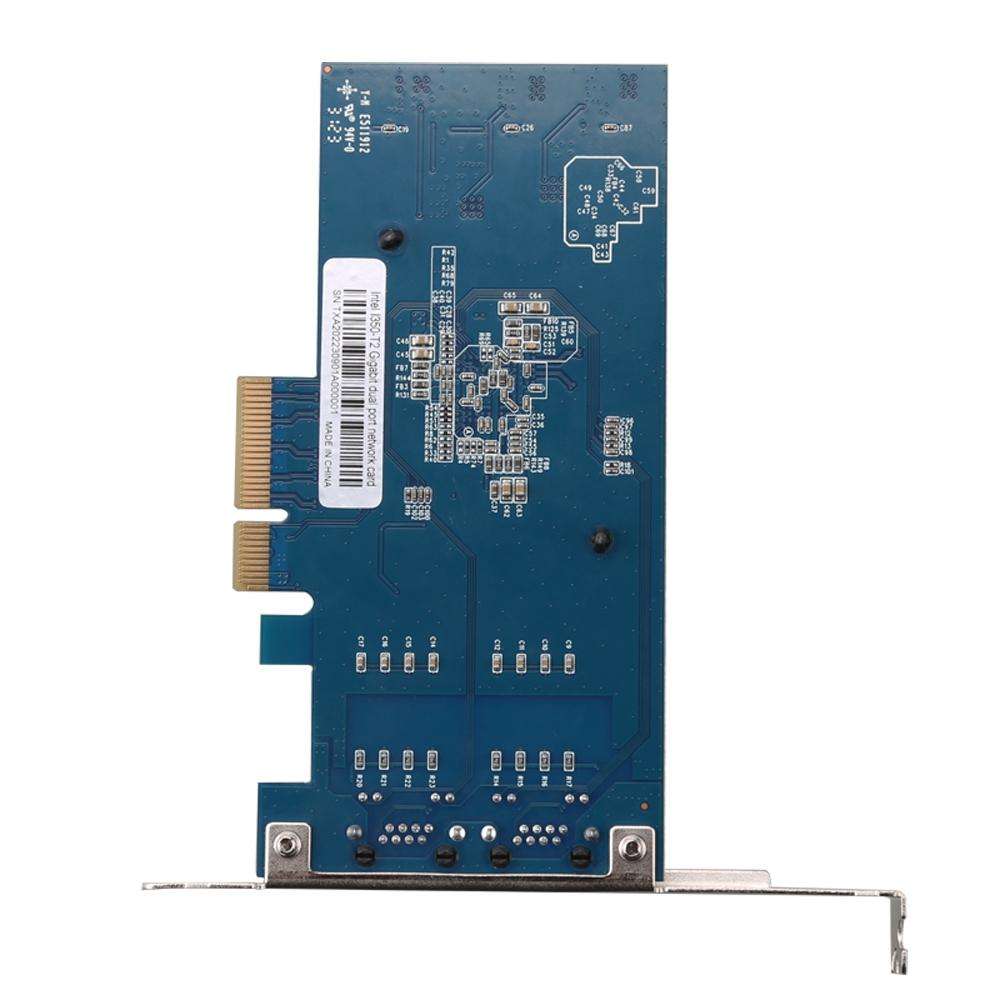

1. Chipset: Intel I350 Ethernet Controller
2. Ports: 2 x RJ45
3. Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
4. Data Rate: 10/100/1000 Mbps
5. Interface: PCI Express 2x
6. LED Indicator: 8 LEDs 10/100/1000 Mbps (Link/Action)
7. Dimensions: 130 x 68.5 x 17 mm
8. Supported Operating Systems: DOS, Novell ODI
Windows XP 32-bit (64-bit), Windows Server 2003 32-bit (64-bit), Windows Vista 32-bit (64-bit), Windows 7 32-bit (64-bit)
Windows 8 32-bit (64-bit), Windows 8.1 32-bit (64-bit)
Windows Server 2008 32-bit (64-bit), Windows Server 2008 R2 32-bit (64-bit) and Windows Server 2012
Windows Server 2012 R2 Linux 2.4 series kernel, 2.6.x, 3.x FreeBSD 7.x or most FreeBSD, UnixWare/Open Unix 8 Sun Solaris x86, VMware, Xen4
9. Environment: Operating temperature: 0°C to 55°C, relative humidity: 10%-90% (non-condensing); Storage temperature: -0°C to 80°C, relative humidity: 5%-90% (non-condensing)
10. Other Features: Halogen-free dual-port Gigabit Ethernet adapter with fiber interface option; Innovative power management features including Energy Efficient Ethernet (EEE) and DMA aggregation for improved efficiency and reduced power consumption; Flexible I/O virtualization with port partitioning and up to 32 Quality of Service (QoS) virtual ports; Scalable iSCSI performance provides cost-effective SAN connectivity, supporting PCI A high-performance bridgeless design with Express x2.1 generation 5 GT/s, it supports PCI Express xv2.1 (5 GT/s), features a low-profile, standard-height design, automatic crossover detection (MDI/MDI-X), and IEEE 1588 and 802.1AS implementation.
11. Chipset Description: The Intel Ethernet Controller I350 is a single, compact, low-power component that supports quad-port and dual-port Gigabit Ethernet designs. The device provides four fully integrated Gigabit Ethernet media access control (MAC) and physical layer (PHY) ports, as well as four SGMII/SerDes ports that can connect to external PHYs. The I350 supports PCI Express x (PCIe v2.1 (2.5 GT/s and 5 GT/s)). The device supports two-port or four-port 1000BASE-T implementations using the integrated PHY. It can be used in server system configurations such as rack-mount or pedestal servers, in add-on NICs, or in LAN-on-motherboard (LOM) designs. Another possible system configuration is for blade servers. Here, the I350 can support up to 2 SerDes ports as LOM or mezzanine cards. It can also be used for embedded applications such as switch add-in cards and network appliances.
EDA0087105
