Code Name : Products formerly Ivy Bridge
Vertical Segment
Desktop

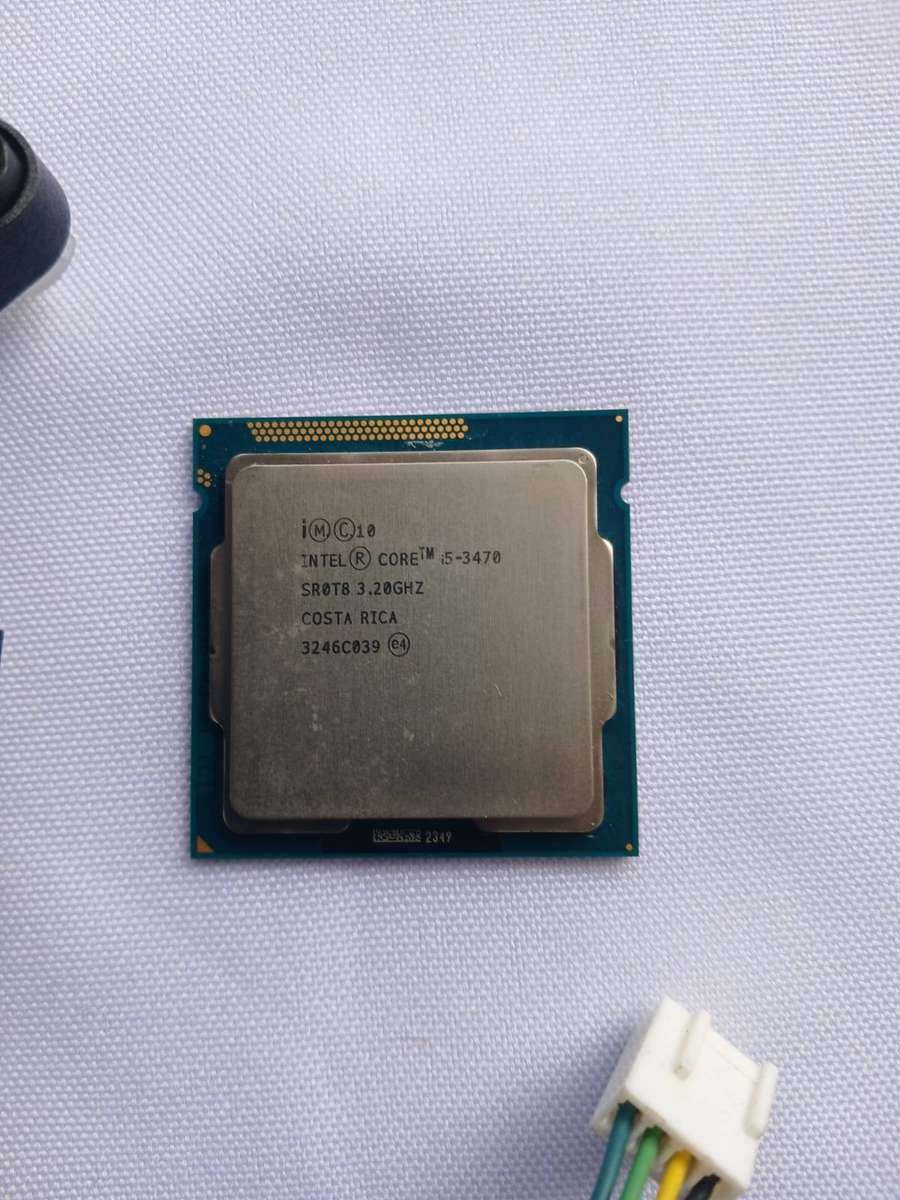

Processor Number i5-3470
Lithography 22 nm
CPU Specifications
Total Cores 4
Total Threads 4
Max Turbo Frequency 3.60 GHz
Intel® Turbo Boost Technology 2.0 Frequency 3.60 GHz
Processor Base Frequency 3.20 GHz
Cache 6 MB Intel® Smart Cache
Bus Speed 5 GT/s
TDP 77 W
Supplemental Information
Marketing Status : Discontinued
Launch Date Q2'12
Servicing Status End of Servicing Lifetime
End of Servicing Updates Date Tuesday, December 31, 2019
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 1333/1600
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
ECC Memory Supported No
GPU Specifications
GPU Name Intel® HD Graphics 2500
Graphics Base Frequency 650 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Intel® Quick Sync Video Yes
Intel® InTru 3D Technology Yes
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported 3
Device ID : 0x152
Expansion Options
PCI Express Revision 3.0
PCI Express Configurations up to 1x16, 2x8, 1x8 & 2x4
Package Specifications
Sockets Supported FCLGA1155
Max CPU Configuration : 1
Thermal Solution Specification 2011D
TCASE 67.4°C
Package Size : 37.5mm x 37.5mm
Advanced Technologies
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology No
Intel® Transactional Synchronization Extensions No
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Security & Reliability
Intel vPro® Eligibility Intel vPro® Platform
Intel® Secure Key Yes
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Anti-Theft Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Perfect working condition.
