| ESSENTIALS | |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | 2.5" Drive |
| # of Internal Drives Supported | 1 |
| Embedded Storage | 4 GB |
| Embedded Options Available | Yes |
| TDP | 5 W |
| DC Input Voltage Supported | 12-19 VDC |
| Back-to-BIOS Button | No |

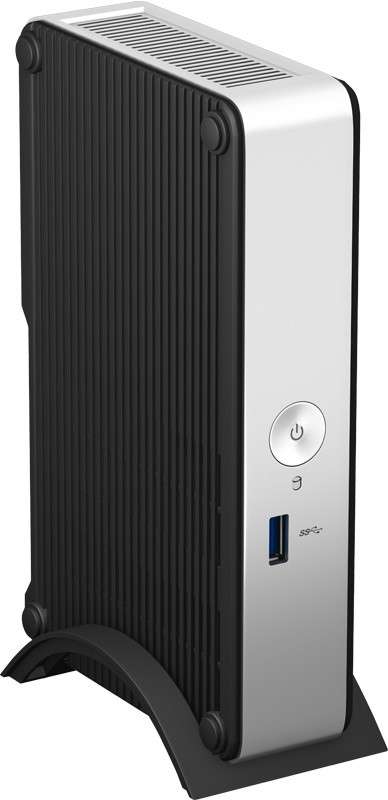

| Description | Atom/Fanless/TPM/4GB-eMMC/HDMI/VGA/LAN/2.5¿ ready |
| Processor Included | Intel® Atom¿ Processor E3815 (512K Cache, 1.46 GHz) |
| Warranty Period | 3 yrs |
| MEMORY SPECIFICATIONS | |
| Max Memory Size (dependent on memory type) | 8 GB |
| Memory Types | DDR3L-1066 1.35V SO-DIMM |
| Max # of Memory Channels | 1 |
| Max Memory Bandwidth | 8.53 GB/s |
| Max # of DIMMs | 1 |
| GRAPHICS SPECIFICATIONS | |
| Integrated Graphics | Yes |
| Graphics Output | HDMI, VGA, eDP |
| # of Displays Supported | 2 |
| EXPANSION OPTIONS | |
| PCI Express Revision | Gen2 |
| PCIe Mini Card Slot (Half Length) | 1 |
| PCIe Mini Card Slot (Full Length) | 0 |
| I/O SPECIFICATIONS | |
| USB Revision | USB3, USB2 |
| # of USB Ports | 6 |
| USB 2.0 Configuration (External + Internal) | 2 3 |
| USB 3.0 Configuration (External + Internal) | 1 (Front) |
| Total # of SATA Ports | 1 |
| Max # of SATA 6.0 Gb/s Ports | 0 |
| # of eSATA Ports | 0 |
| # of Serial Ports | 2 |
| Serial Port via Internal Header | Yes |
| Audio (back channel + front channel) | Back panel headphone/microphone jack |
| Integrated LAN | 10/100/1000Mbps |
| Integrated Wifi | Wireless antennas pre-assembled |
| Integrated Bluetooth | No |
| Consumer Infrared Rx Sensor | No |
| PACKAGE SPECIFICATIONS | |
| Max CPU Configuration | 1 |
| Package Size | 190mm x 116mm x 40mm |
| ADVANCED TECHNOLOGIES | |
| Intel® Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® vPro Technology | No |
| TPM | Yes |
| TPM Version | 1.2 |
| Intel® HD Audio Technology | Yes |
| Intel® Rapid Storage Technology | No |
| Intel® Virtualization Technology (VT-x) | Yes |
