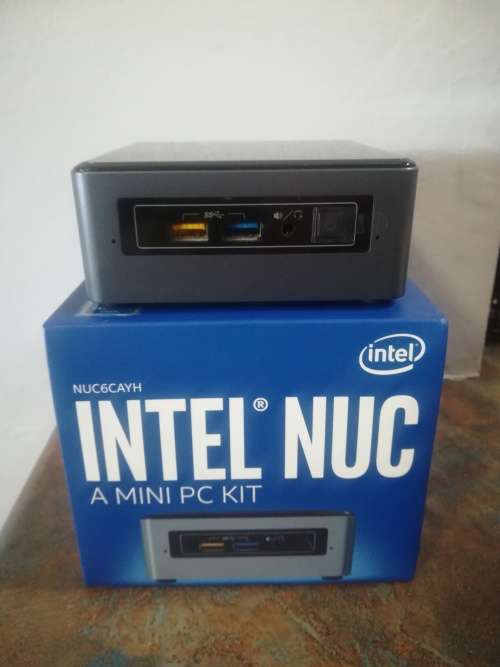

The Intel® NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. For businesses, students, educators, and DIYers.
Quick Spec:
Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz) Processor Included
2.5" Drive Internal Drive Form Factor
VGA (HDB15); HDMI 2.0 Graphics Output
Please note: No Operating System/No memory/No Hard Drive Included
Features:
Pint-sized Power
The Intel® NUC is a mini PC with the power of a desktop, packing features for entertainment, gaming, and productivity in a 4x4 form factor.
Energy Optimized, Media Savvy
With Intel® NUC, you get an immersive media experience and responsive interaction while consuming a small amount of power relative to a full-sized PC.
Flexibility for Future Growth
Due to its portable size and ease of installation, the Intel® NUC makes it easy to add devices and scale up rapidly based on changing productivity needs.
Specifications:
Essentials:
Board Form Factor - UCFF (4" x 4")
Socket - Soldered-down BGA
Internal Drive Form Factor - 2.5" Drive
# of Internal Drives Supported - 1
DC Input Voltage Supported - 12-19 VDC
Processor Included - Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
Warranty Period - 3 Years
Memory Specifications:
Max Memory Size (dependent on memory type) - 8 GB
Memory Type - DDR3L-1600/1866 1.35V SO-DIMM
Max # of Memory Channels - 2
Max Memory Bandwidth - 14.9 GB/s
Max # of DIMMs - 2
ECC Memory Supported - No
Graphics Specifications:
Integrated Graphics - Yes
Graphics Output - VGA (HDB15); HDMI 2.0
# of Displays Supported - 2
Expansion Options:
PCI Express Revision - Gen3
PCI Express Configurations - M.2 slot with PCIe x1 lane
Removable Memory Card Slot - SDXC with UHS-I support
M.2 Card Slot (storage) - 22x30
I/O Specifications:
USB Revision - 2.0, 3.0
# of USB Ports - 6
USB 2.0 Configuration (External + Internal) - 0 + 2
USB 3.0 Configuration (External + Internal) - 2B 2F + 0
Total # of SATA Ports - 1
Max # of SATA 6.0 Gb/s Ports - 1
Audio (back channel + front channel) - 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN - 10/100/1000
Integrated Wifi - Intel® Wireless-AC 8265 + BT 4.2
Integrated Bluetooth - Yes
Consumer Infrared Rx Sensor - Yes
S/PDIF Out Connector - TOSLINK
Additional Headers - CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Advanced Technologies:
Intel® Virtualization Technology for Directed I/O (VT-d) - Yes
Intel® vPro™ Technology - No
TPM - No
Intel® HD Audio Technology - Yes
Intel® Virtualization Technology (VT-x) - Yes
Intel® Platform Trust Technology (Intel® PTT) - Yes
Intel® Data Protection Technology:
Intel® AES New Instructions - Yes
