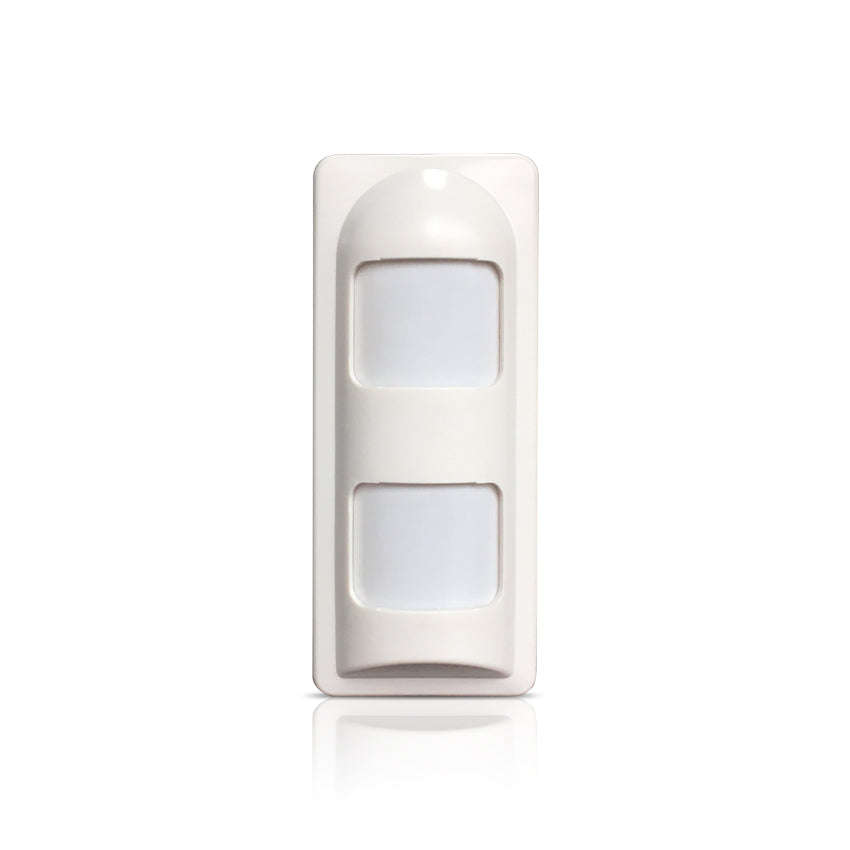

Intelligent dual PIR and microwave Outdoor alarm motion Detector

• Microwave Outdoor alarm motion Detector
• DRO micro radar+2 independent dual PIR detection technology.
• Adopts multi-grades intelligent signal processing software, full analysis and processing of al kinds of false alarm
• Adopts micro power-consumption 8 digits CMOS single chip control
• Professional grade IP-65 water-proof design, fit for fully outdoor installation
• Double layer filtering system, anti strong light interference
• MW anti-masking technology, can detect the attempt of blocking MW or PIR channel.
• Unique anti-masking and trouble output.
• AND/OR modes for option, fit for various kinds of environments.
• MW range adjustable.
• With high/low sensitivity selection
• Unique full-range temperature compensation technology.
• Anti strong EMI interference
• EI control mode for optio

Technical Parameter:
Operation voltage/current 9-16V/DC 25mA
Detection distance 12m 110?
Installation height 1.5m.-2.4m
MW frequency 10.525GHz
Sensitivity L/H for option
RFI/EMI protection >30V/m 500MHz
Alarm output 100m A/24V
Anti masking/trouble output 100m A/24V
Tamper output 300m A/24V
Operation temperature 20C/+40C
Operation humidity 5%-95%(RH)
Anti white light >10000LUX
Operation mode Dual-tech or single-tech alarm mode for option
Detection speed 0.2m/s to 3.5m/s
