Correct Connet Way:
POSITIVE FROM THE BATTERY TO POSITIVE OF INVERTER and NEGATIVE FROM THE BATTERY TO NEGATIVE OF THE INVERTER!
(+...connect...+,-...connect...-)
Packaged included:
1 x Inverter
1 x User manual
1 x Ultra-thick battery cable
(2 x Ultra-thick battery cable 5000W/6000W)
Specifications:
| Type: | Solar inverter |

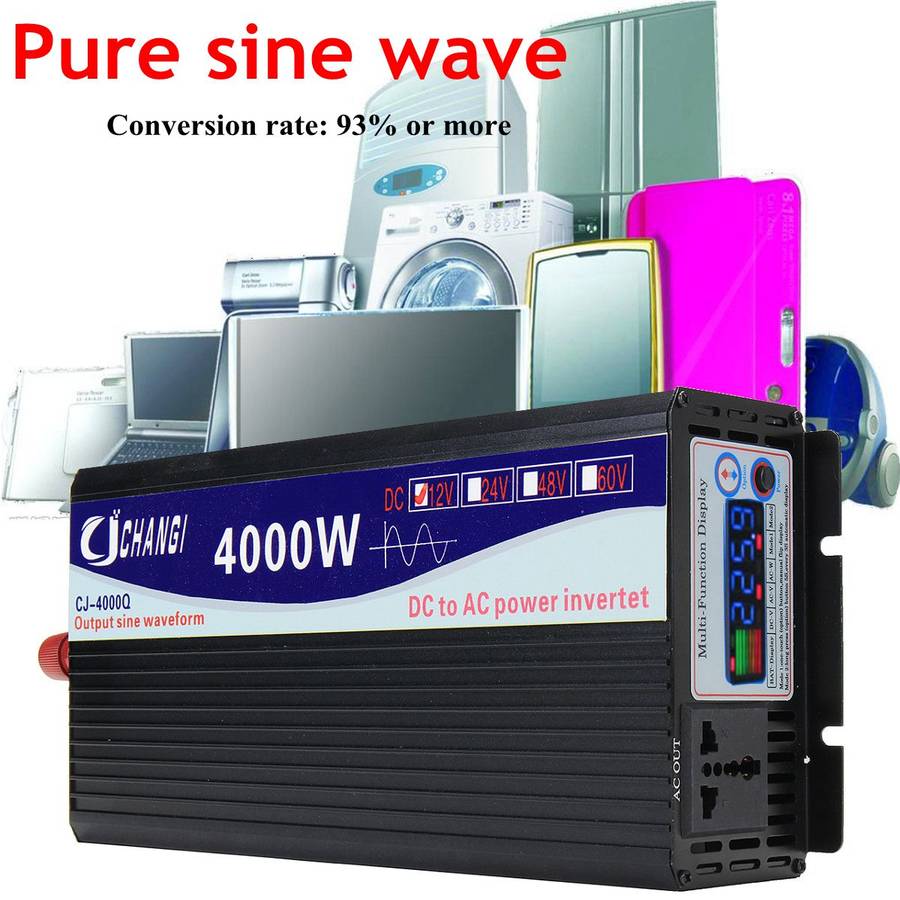

| Output voltage waveform: | Pure sine wave |
| Power: | 3000W / 4000W / 5000W / 6000W |
| Output voltage: | 220V |
| Input voltage: | 12V/24V |
| Output frequency: | 50Hz |
| Low-voltage protection: | 9.5V/ 20V |
| High-pressure protection: | 16V/30V |
| Conversion rate: | 93% or more |
| Size: | 30*15*CM(3000W) / 35*15*7CM(4000W) /
38*32*8.5CM(5000w)/42*22*10CM((6000W) |
Features:
-High-precision circuit board.
-Built-in intelligent control chip.

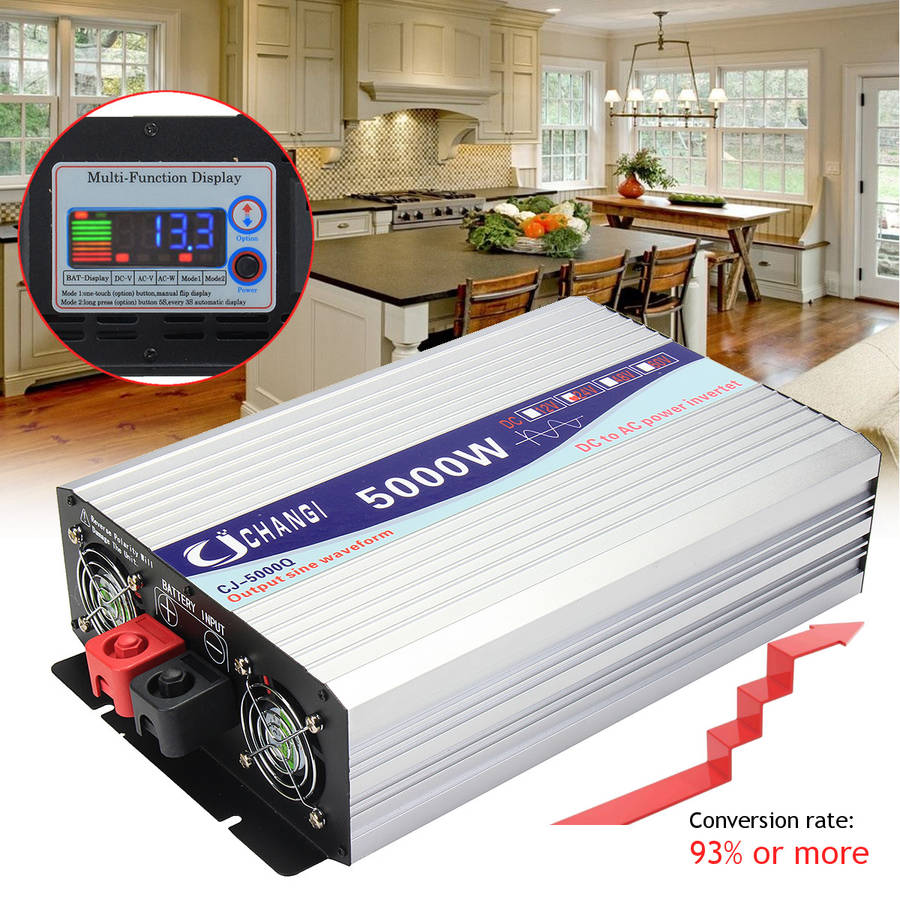

-Color LCD screen integration.
-Dual cooling fans to extend the life of the inverter.

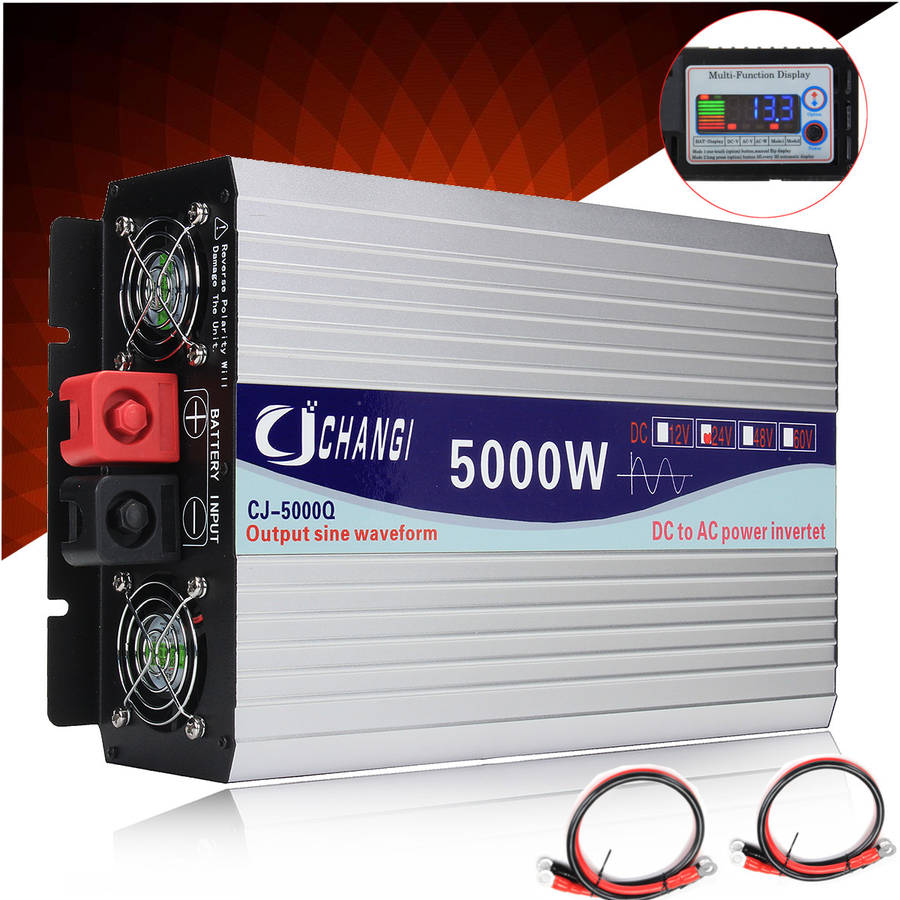

-Screw terminal. Pluggable plug, easy to replace the cable.

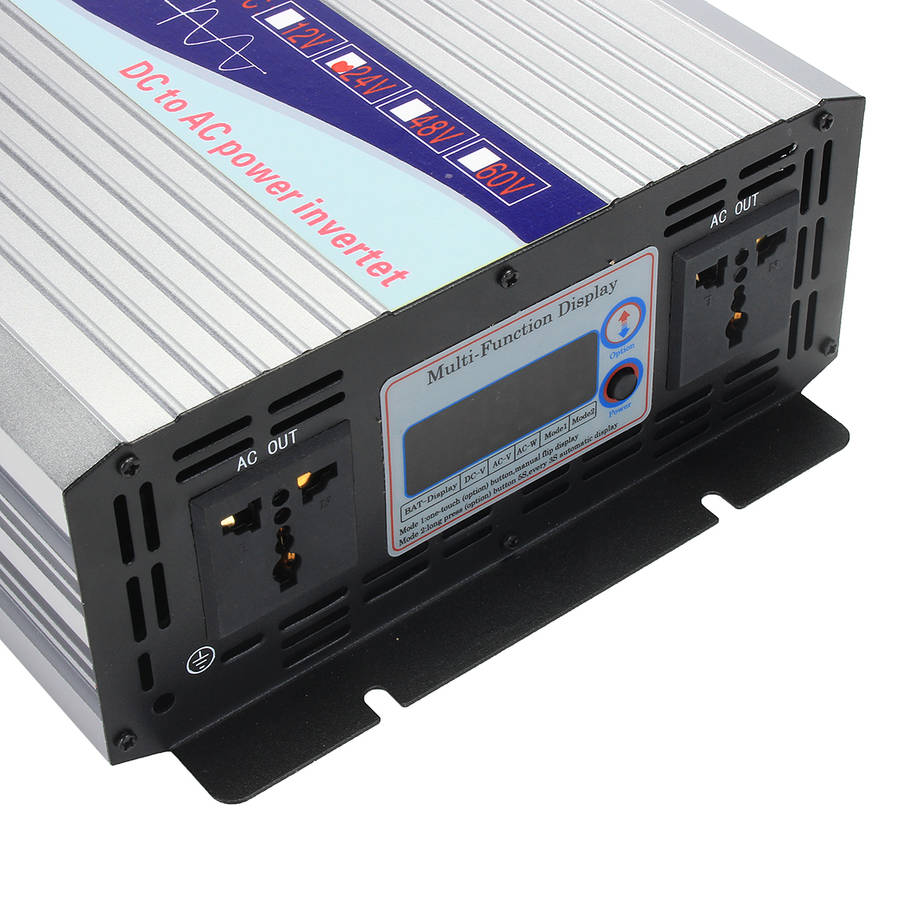

-Universal three-hole socket, strong compatibility,most appliances are suitable.
-Can display the remaining battery capacity, input voltage, output voltage and load power.
-Pure sine wave, smart filter, no interference on the electrical, to protect electrical appliances.

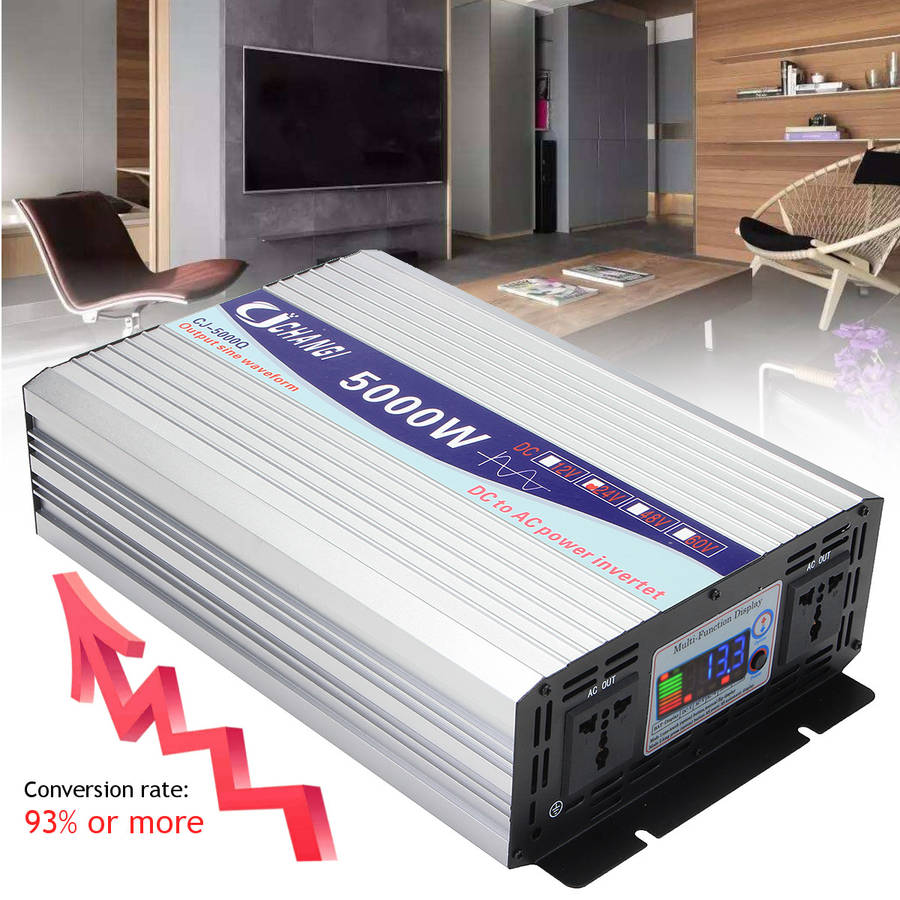

-Up to 93% conversion rate, reduce the conversion loss of 30%, increase 30% continuous power.
-Using STM chip technology, high reliability, seismic resistance, solder joint defect rate is low, reducing battery and radio frequency interference.
-Aluminum-magnesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
-Six intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection.
-Intelligent temperature control fan, make the inverter more quiet. When the temperature ≤ 45 ¿¿¿, the fan stops working, when the temperature ≥ 45 ¿¿¿, the fan began to work.
-Buzzer reminder device. Once any protection of the inverter is triggered, the inverter immediately disconnects the power supply and the load enters a protection mode and reminds people through a buzzer reminder.
Tips:There is little mistakes instruction written in user manual)
