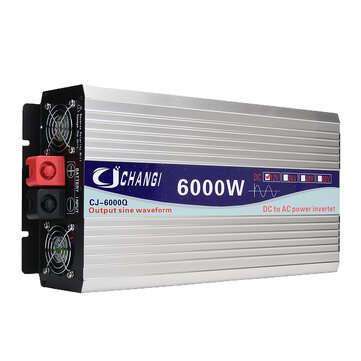

Specifications:| Type: | Solar inverter |
| Output voltage waveform: | Pure sine wave |

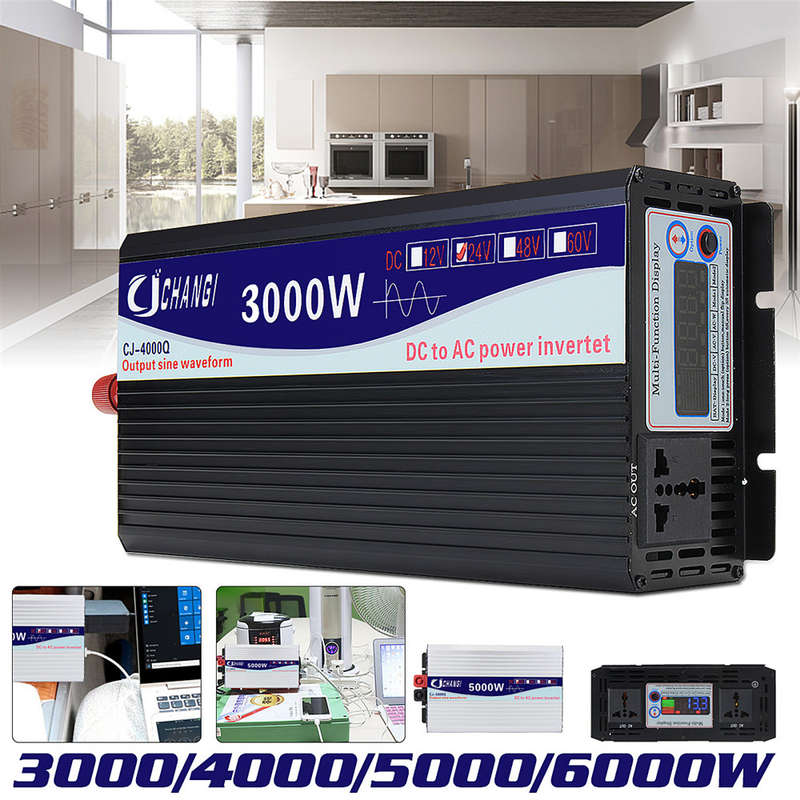

| Power(Rated power): | 3000W (1500W)/ 4000W (2000W)/ 5000W (2500W) / 6000W (3000W) |
| Output voltage: | 240V |
| Input voltage: | 12V/24V |
| Output frequency: | 50Hz |
| Low-voltage protection: | 9.5V/ 20V |
| High-pressure protection: | 16V/30V |
| Conversion rate: | 93% or more |

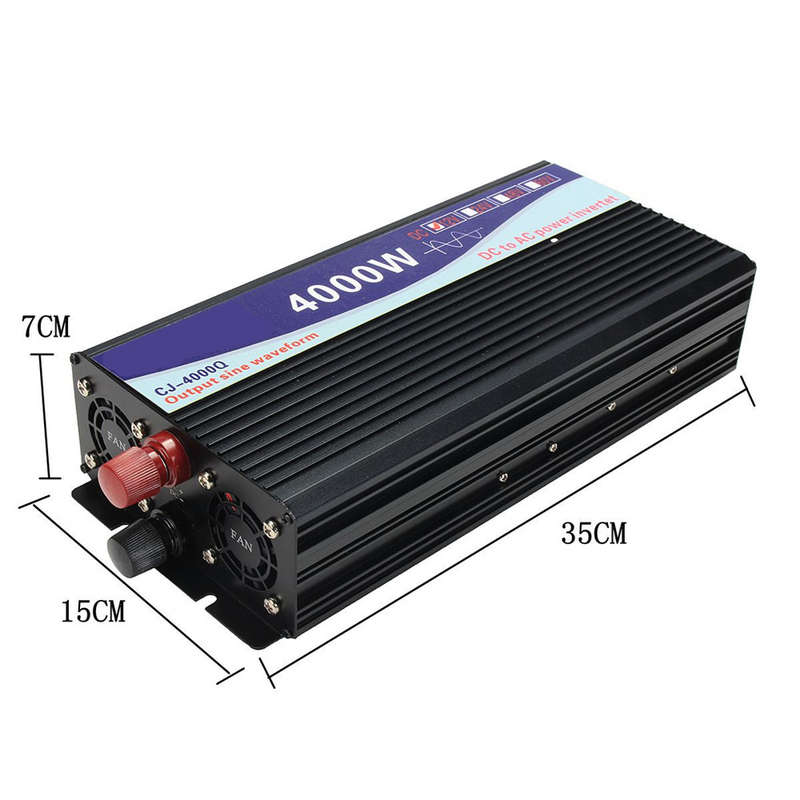

| Size: | 27*15*7CM(3000W) / 30*15*7CM(4000W) /
38*23*10CM(5000w)/48*23*10CM((6000W) |
Features:-
High-pre-cision circuit board.
-Built-in
intelligent control chip.

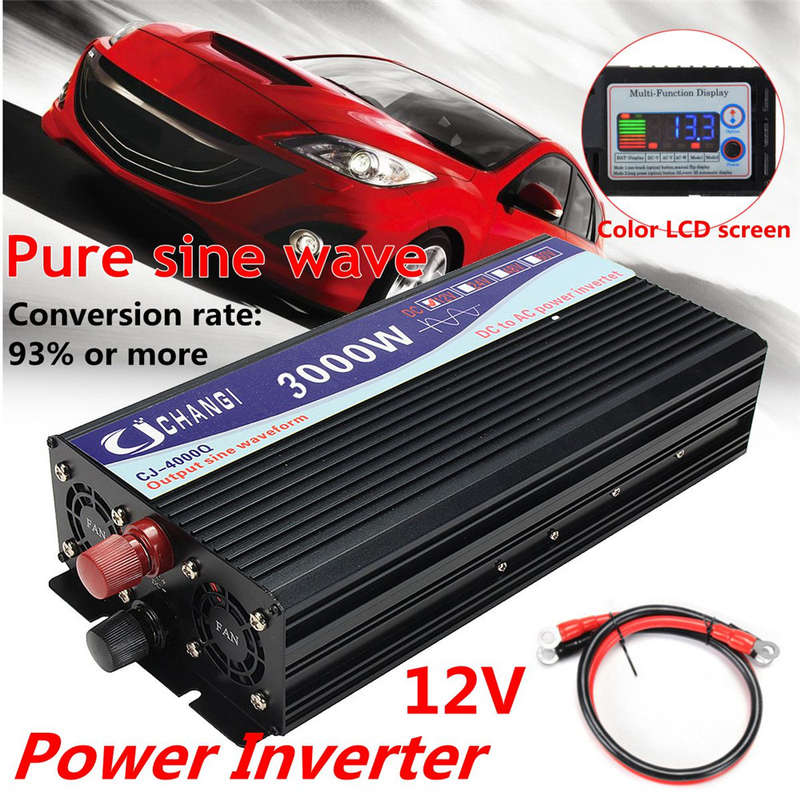

-Color
LCD screen integration.
-
Dual cooling fans to extend the life of the inverter.
-Screw terminal. Pluggable plug, easy to replace the cable.
-Universal three-hole socket, strong compatibility,
most appliances are suitable.
-Can
display the remaining battery capacity, input voltage, output voltage and load power.
-

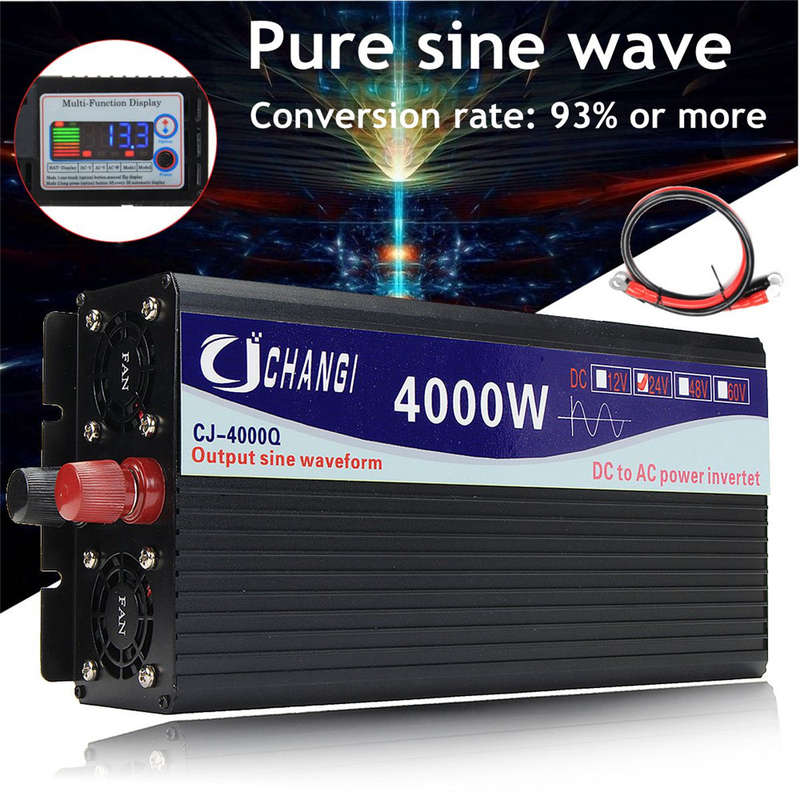

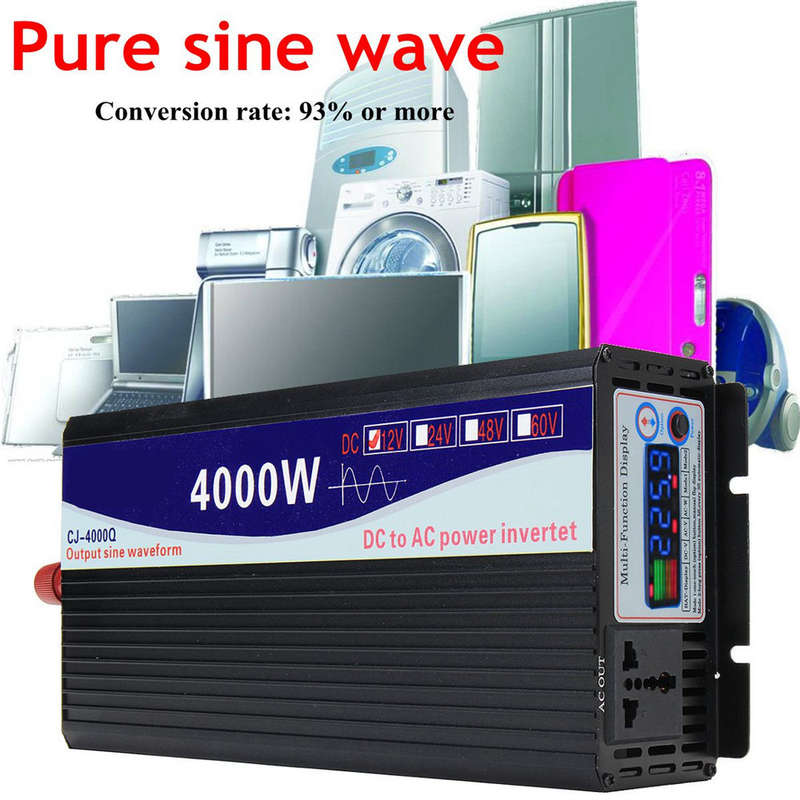

Pure sine wave, smart filter, no interference on the electrical, to protect electrical appliances.
-Up to 93% conversion rate, reduce the conversion loss of 30%, increase 30% continuous power.
-Using
STM chip technology, high reliability, seismic resistance, solder joint defect rate is low, reducing battery and radio frequency interference.
-Alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.

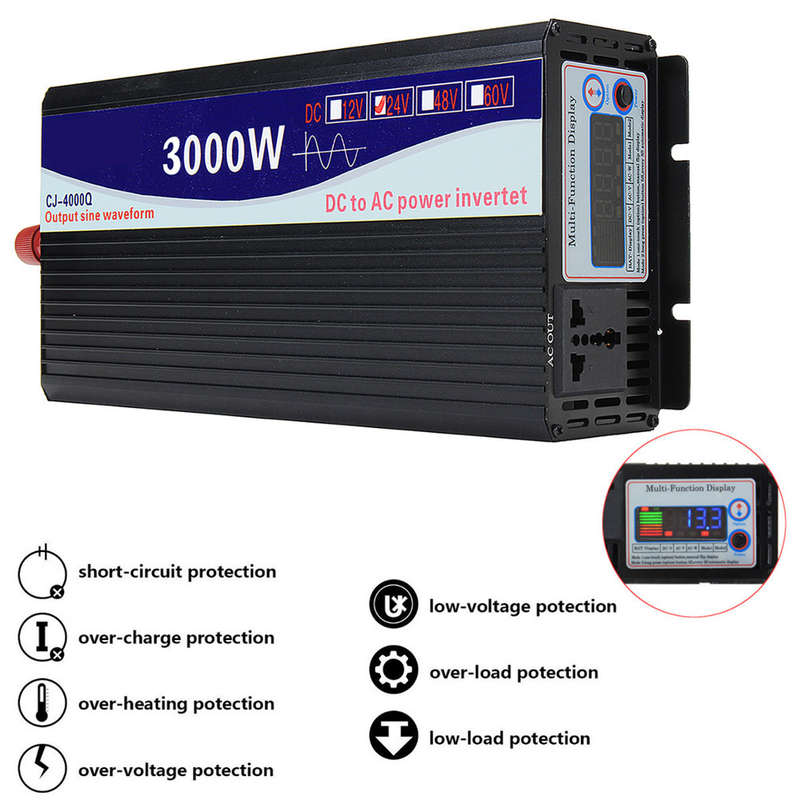

-Six intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection.
-Intelligent temperature control fan, make the inverter more quiet. When the temperature ≤ 45 ℃, the fan stops working, when the temperature ≥ 45 ℃, the fan began to work.
-
Buzzer reminder device. Once any protection of the inverter is triggered, the inverter immediately disconnects the power supply and the load enters a protection mode and reminds people through a buzzer reminder.

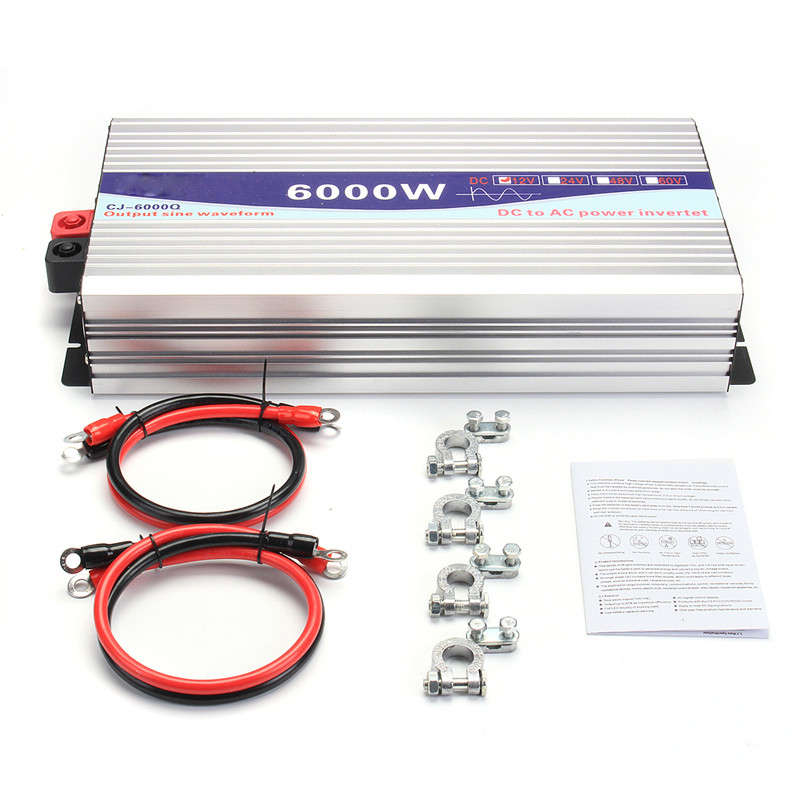

Packaged included:1 x Inverter
1 x User manual
1 x Ultra-thick battery cable
(2 x Ultra-thick battery cable 5000W/6000W)

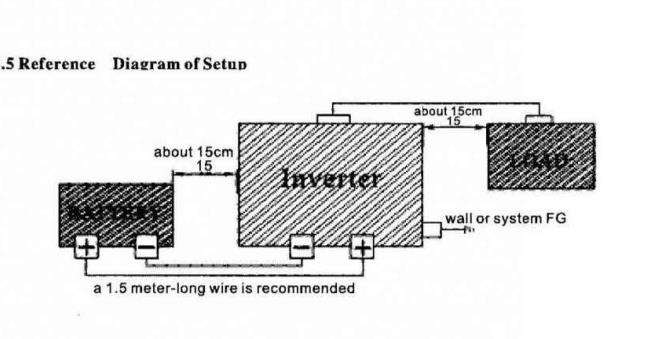

Correct Connet Way:POSITIVE FROM THE BATTERY TO POSITIVE OF INVERTER and NEGATIVE FROM THE BATTERY TO NEGATIVE OF THE INVERTER!(+...connect...+,-...connect...-)
