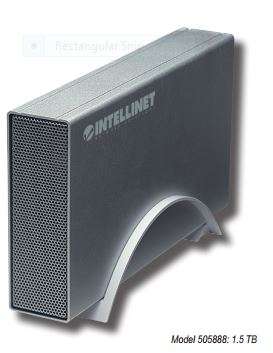

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™ Gigabit SATA
NAS, Model 505888 (1.5 TB) or Model 505895 (3 TB). Either model provides an
easy solution for home and office users who require the benefits of the 3 S’s:
speed, streaming and abundant storage space.
You can install a SATA hard drive — up to 1.5 TB for Model 505888 and up to 3 TB
for Model 505895 — for extremely fast access to data storage on your network. If
more space is needed, you can connect two additional USB HDDs. And with the
convenient power-saving design, the SATA NAS will put the HDD to sleep if it isn’t
needed — saving more than 80 percent of its power.
With a Gigabit network connection, this device provides ultra-fast data throughput,
making it the perfect network storage unit for smaller work groups. Plus, it allows
you to stream videos and photos through the media player in your home
entertainment center, and streams MP3 files to your media player via iTunes and
downloads files via the BitTorrent network to the NAS without your PC being on.
Detailed instructions in this user manual make installation reasonably quick and
simple so you’ll soon be enjoying the benefits of all these popular features:
• Holds one (Model 505888) or two (Model 505895) 3.5” SATA-I or SATA-II hard
drives (up to 1.5 TB each, not included)
• Model 505895 supports RAID configurations (RAID 0, 1, JBOD)
• Hi-Speed USB ports to connect an additional external USB hard drive or USB
printer or USB memory stick
• Supported USB hard drive file systems: FAT32 and NTFS
• Made from high-quality aluminum for optimized heat dissipation
• Cooling fan automatically adjusts to internal temperature (Model 505895 only)
• Integrated iTunes Digital Audio Access Protocol (DAAP) server delivers audio
streams to any iTunes-compatible media player on the network
• Built-in FTP server allowing remote users to upload and download files
• BitTorrent client to download files from the BT network while having your
computer turned off
• Cross-platform file sharing for Windows, Linux and Mac OS
• Supported file serving protocols: CIFS (Samba), FTP and NFS
• Supports user groups and user accounts with quota management
• User (name/password) and Sharing Level (read/write) security
• Supports Self-Monitoring Analysis and Reporting Technology-enabled (SMART)
hard drives
• Adjustable hard drive spin-down time
• Easy Web-based configuration via
