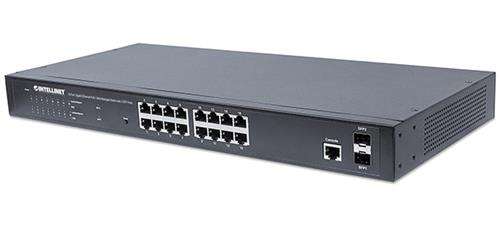

Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports - IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 374 W, Endspan, 19" Rackmount, Retail Box, 1 year Limited Warranty
Product Overview:
The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports (561198) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with sixteen Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1,000 Mbps.
Highlights:
Provides power and data connection for up to 16 PoE network devices
Save installation cost by delivering data and power over existing network cables
10/100/1000 auto-sensing ports automatically detect optimal network speeds
Two small form-factor pluggable GBIC module slots (SFP)
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Power output up to 30 watts per port*
PoE power budget of 374 watts
36 Gbps switch fabric
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring
The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
SNMP Management and Remote Monitoring (RMON)
SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
IPv4/v6 dual protocol
Supports VLAN (tag-based and port-based)
Provides IEEE 802.1x port-based security
Supports link aggregation (trunking)
Supports bandwidth control per port
Supports port mirroring
Supports two types of QoS: port-based and DSCP
Broadcast storm control with multicast packet rate settings
512 kBytes buffer memory
Supports 8k MAC address entries
Supports jumbo frames up to 9 kBytes
Supports Rapid Spanning Tree/Spanning Tree protocol
Store and forward switching architecture
Full/half duplex operation
IEEE 802.3x flow control for full duplex
Configuration via Web browser, Telnet or SSH
Remote Reboot/restart
LEDs for power, link/activity and PoE
Two high-volume cooling fans ensure perfect ventilation
