Intellinet Antenna Cable CFD200 N Type Male

Product Overview

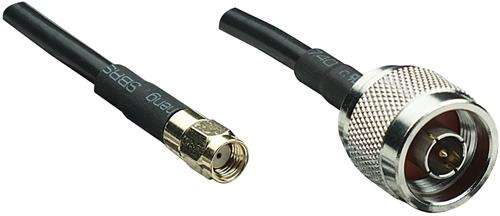

The Intellinet Antenna Cable CFD200 ,N-type Male to RP SMA Female Connector 1.8 metre could be used to connect routers, PCI cards, access point, etc. It will bring you much convenience. Very easy to use

Highlights
 N-Type Male to RP SMA Female Connector
 Fit for : Router, PCI Card, Access Point;
 Cable Length : 1.8 Metres











Specifications
 Stock Code 522137
 Description Intellinet Antenna Cable RG 58/U CFD200 ,N-type Male to RP SMA Female Connector 1.8 metre
 Signal loss of 0.25 dB per feet
 N-type Male/RP-SMA Female connectors
 Impedance: 50 Ohms (+/- 3 Ohms)
 Centre conductor: Strand bare copper wire, outside diameter (O.D.): 0.8 mm +/- 0.2 mm
 Insulation: Solid Polyethylene, outside diameter (O.D.): 2.9 mm +/- 0.1 mm
 Shield: Bare copper wire, outside diameter (O.D.): 3.12 mm +/- 0.008 mm
 Teflon jacket: PVC, outside diameter (O.D.): 5 mm +/- 0.01 mm
