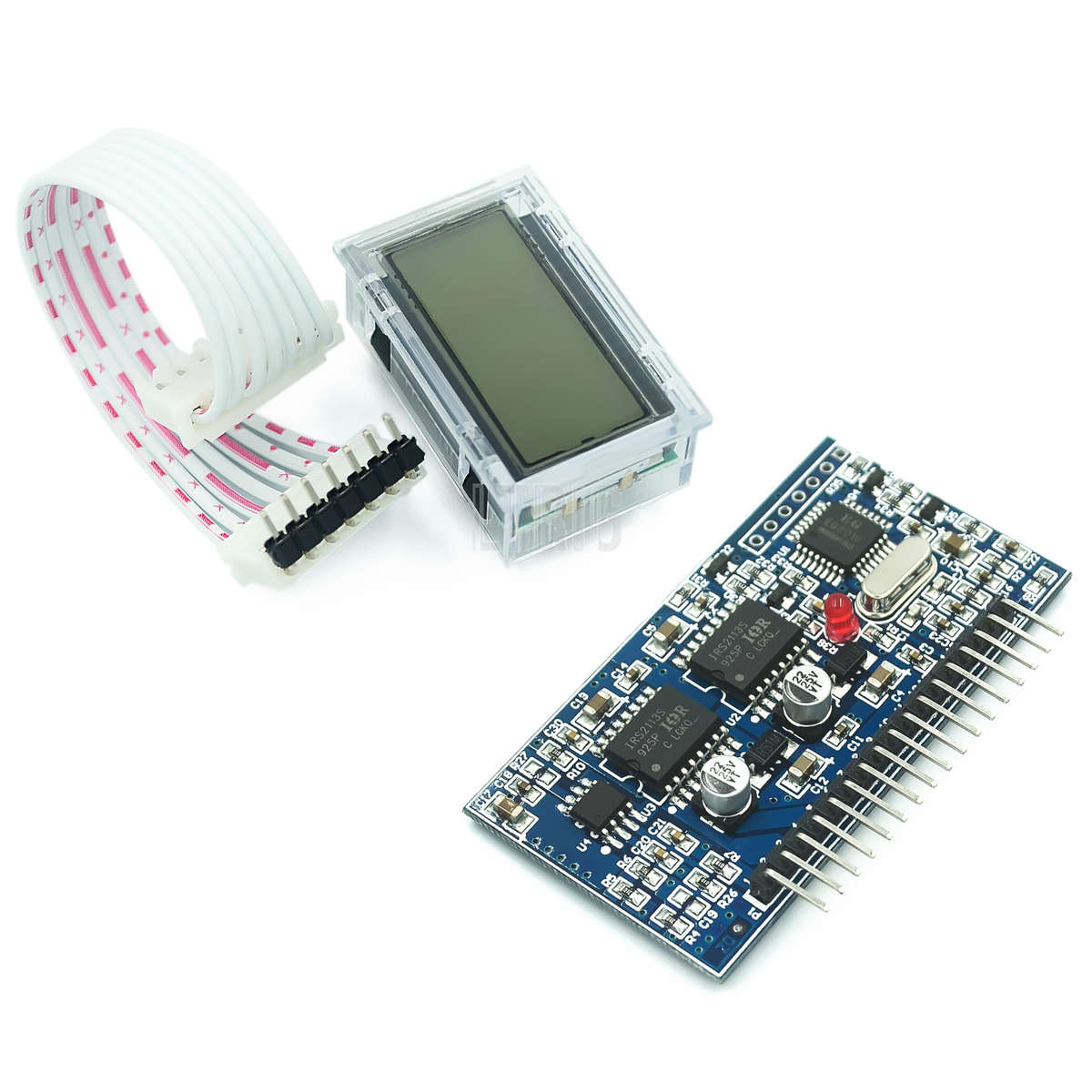

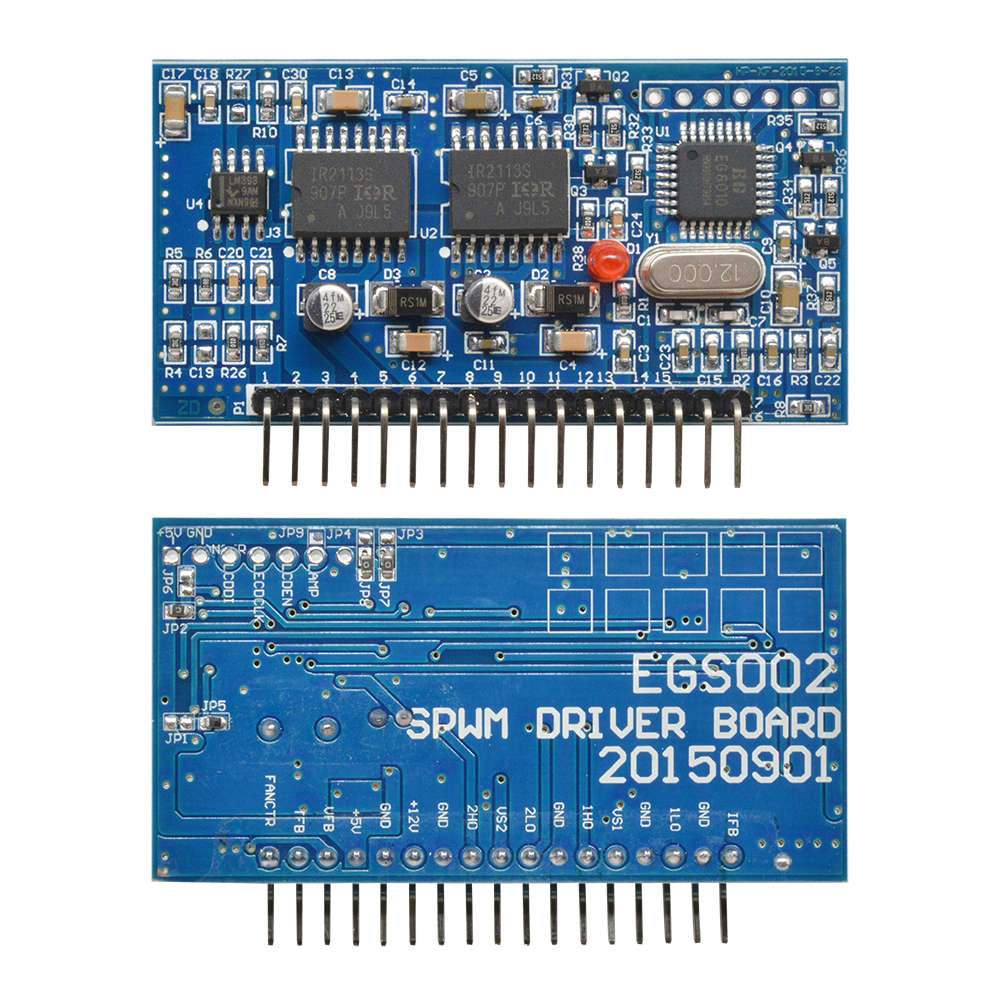

Inverter Driver Module Board 5V Pure Sine Wave EGS002 EG8010+LCD Display
New
R209.95
Closed
4 Oct 23 01:15
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Wild En Weide, Richards Bay
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Monday, 20 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Customer ratings:
Product code
Id-1984
Bob Shop ID
581383275
Description:
EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions.
Features:
-5V single power supply
-Pin set up four kinds of pure sine wave output frequency: fixed frequency 50 hertz pure sine
wave; 60 hertz fixed frequency pure sine wave; 0-100 hertz pure sine wave frequency is adjustable; 0-400 hertz pure sine wave frequency is adjustable.
-Unipolar and bipolar modulation
-Comes with dead band control, pin set up 4 dead time: 300nS dead time; 500nS dead time; 1.0uS dead time; 1.5uS dead time
-External 12MHz crystal oscillator
-PWM carrier frequency 23.4KHz
-Voltage, current, real time temperature feedback
-Overvoltage, under voltage, overcurrent and overheating protection
-Soft-start mode pin setting the response time of 1S
-Serial communication to set the output voltage, frequency and other parameters External
-External serial port 128 * 32 LCD module 1602 display the voltage, frequency, temperature and electric current of the inverter and other information;
Applications:
-Single phase pure sine wave inverter
-PV Inverter
-Wind power inverter
-Uninterruptible Power Supply UPS System
-Digital generator system
-IF power
-Single-phase motor speed controller
-Single-phase inverter
-Sine wave dimmer
-Sine wave regulator
-Sine wave generator
LCD description:
In the use of the LCD, Connection EGS002 driver board and LCD cable must use shielded cable, otherwise. Inverter, high-voltage high-current environment will seriously interfere with the operation of the drive plate
Package included:
1 x Pure sine wave inverter driver board
1 x LCD
1 x Cable
EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions.
Features:
-5V single power supply
-Pin set up four kinds of pure sine wave output frequency: fixed frequency 50 hertz pure sine
wave; 60 hertz fixed frequency pure sine wave; 0-100 hertz pure sine wave frequency is adjustable; 0-400 hertz pure sine wave frequency is adjustable.
-Unipolar and bipolar modulation
-Comes with dead band control, pin set up 4 dead time: 300nS dead time; 500nS dead time; 1.0uS dead time; 1.5uS dead time
-External 12MHz crystal oscillator
-PWM carrier frequency 23.4KHz
-Voltage, current, real time temperature feedback
-Overvoltage, under voltage, overcurrent and overheating protection
-Soft-start mode pin setting the response time of 1S
-Serial communication to set the output voltage, frequency and other parameters External
-External serial port 128 * 32 LCD module 1602 display the voltage, frequency, temperature and electric current of the inverter and other information;
Applications:
-Single phase pure sine wave inverter
-PV Inverter
-Wind power inverter
-Uninterruptible Power Supply UPS System
-Digital generator system
-IF power
-Single-phase motor speed controller
-Single-phase inverter
-Sine wave dimmer
-Sine wave regulator
-Sine wave generator
LCD description:
In the use of the LCD, Connection EGS002 driver board and LCD cable must use shielded cable, otherwise. Inverter, high-voltage high-current environment will seriously interfere with the operation of the drive plate
Package included:
1 x Pure sine wave inverter driver board
1 x LCD
1 x Cable
