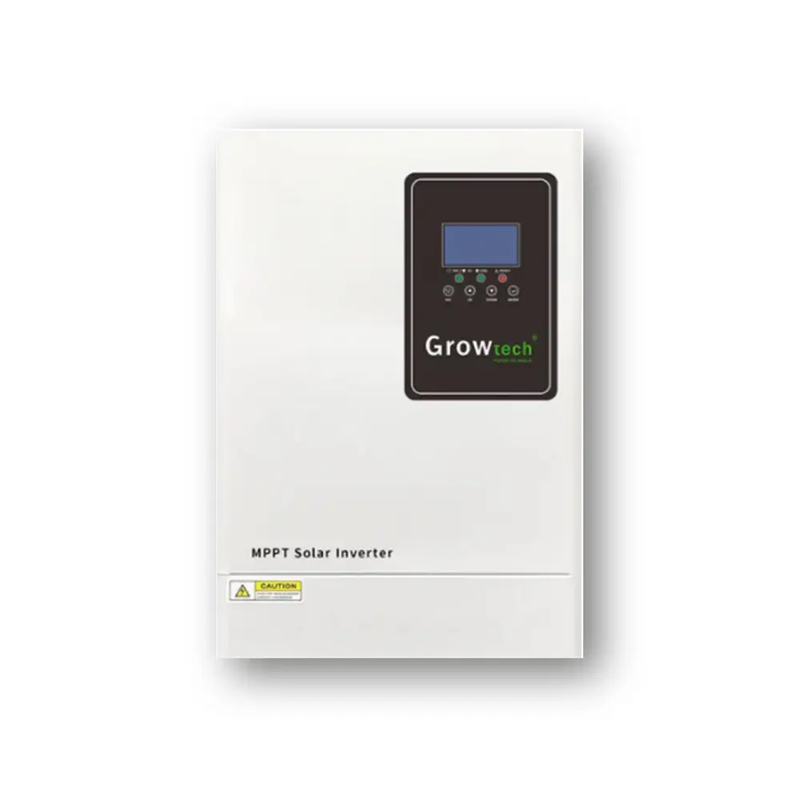

Growtech 5.5KW 48v Mppt Hybrid Solar Inverter 100A 120V-450VDC
Delivery can take anything from 2-3 business days depending on your location. We need at least a day for order processing. Your order will be sent via the courier guy , lead time 2-3 business days . Alternatively collection can be made in Pretoria
Pure sine wave
Output power factor 1.0
High PV input voltage range 500Vdc Max Built-in MPPT solar charge controller
Detachable dust cover for harsh environment Support multiple output priority: UTL, SOL, SBU, SUB
WiFi remote monitoring optional Capable to work without battery
Battery equalization function to optimize battery performance and extend lifecycle
Please note that is a Single Phase Non Parallel Inverter System / Wi-Fi Dongle Is Not Included And Currently Not Available
Specification
Stock Code SOLGTMP5548
Growtech 5500VA 48VDC Pure Sine Wave Solar Inverter
Product Type Single Phase Non Parallel Inverter System
Output Power factor 1.0
DC Input 48VDC 127A
DC Output 54VDC
AC Input Voltage 220-230VAC 40A
AC Output Power 5.5KVA /5000W
Surge Power Voltage 11000VA
Maximum Input Current 60A
Maximum Charge Current (PV+AC) 100A
Nominal Operating Frequency:50/60HZ 23.9A
Battery Voltage: 48VDC
Battery Floating Voltage 54VDC
Battery Overcharge Protection 63VDC
Charging Method CC /CV
Maximum Peak Efficiency Battery to Inverter 93%
Maximum Peak Efficiency Solar PV to Inverter 97%
Solar PV Charger Type MPPT
Maximum Solar PV Array Power 5500W
Maximum Solar PV Input Current 18A
Maximum Solar PV Charge Current 100A
Minimum Solar PV DC Voltage Range 120VDC-450VDC
Maximum Solar PV DC High Voltage 500VDC
Maximum 100A MPPT Solar Charge Controller
Communication Interface RS232
Dimensions DxWxH 438x295x105
Weight 9.0kg
- 1-Year Warranty
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
