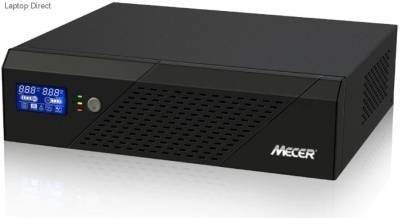

INVERTERS MECER 1200VA

Features

Simulated sinewave inverter

Wide input voltage range

12VDC or 24VDC available

Overload and short circuit protection

LCD display for comprehensive information

Optional solar charger

MODELIVR-1200LBKS
CAPACITY1200VA/ 720W
INPUT
Voltage230 VAC
Acceptable Voltage Range90-280 VAC
Frequency50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)± 10%
Efficiency (Peak)82%85%
Transfer Time20 ms typical
Waveform (Batt. Mode)Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage12 VDC24 VDC
Floating Charge Voltage13.7 VDC ±2%27.4 VDC ±2%
Low Battery Alarm Voltage10.2Vdc ±2%20.4Vdc ±2%
Shutdown Voltage9.9Vdc ±2%19.8Vdc ±2%
Overcharge Protection15.0Vdc ±2%30.0Vdc ±2%
Maximum Charge Current10 A or 20 A (Selectable)
SOLAR CHARGER (Optional) Solar Charge controller not included,will request to purchase separately
Maximum PV Array Open Circuit Voltage40 VDC60 VDC
Operating Voltage Range15~18 VDC30~32 VDC
Maxmum Solar Charge Current50 A
PROTECTION
Full ProtectionOverload, short circuit and polarity reserve protection
PHYSICAL
Dimension, D X W X H (mm)300 x 360 x 88
Net Weight (kgs)4.64.8
OPERATING ENVIRONMENT
Humidity0 to 90% Relative Humidity(Non-condensing)
Operating Temperature0? to 40?
Storage Temperature-15? to 50?
