IP66 Waterproof Enclosure | Small 100x68x50

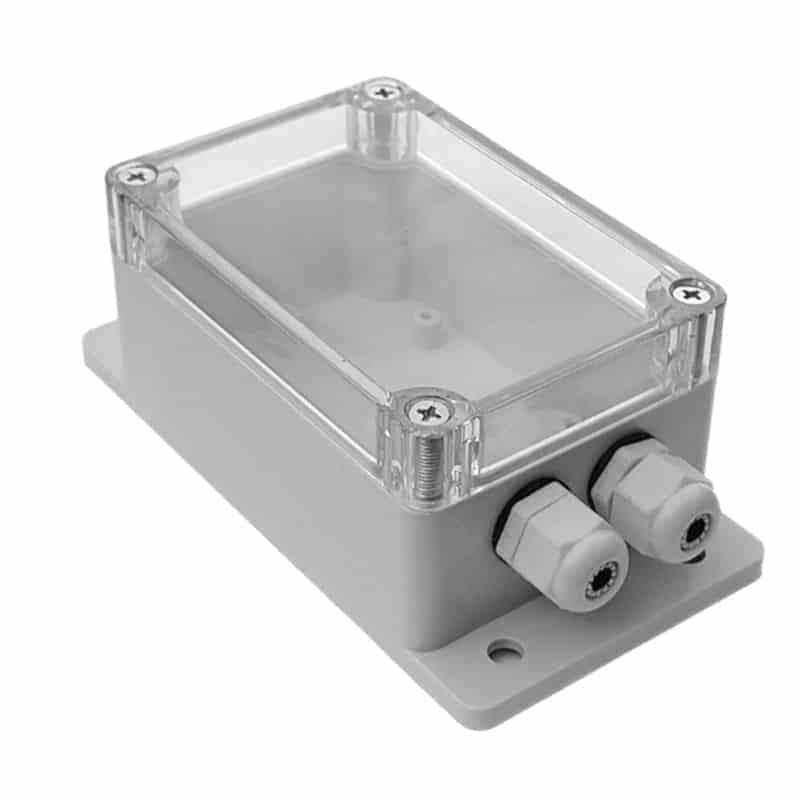

Small IP66 Waterproof enclosure

A high-quality waterproof enclosure that can be used with several of our range of Basic Switches including our Relay PC Board switches. The environmental rating of the enclosure is IP66.

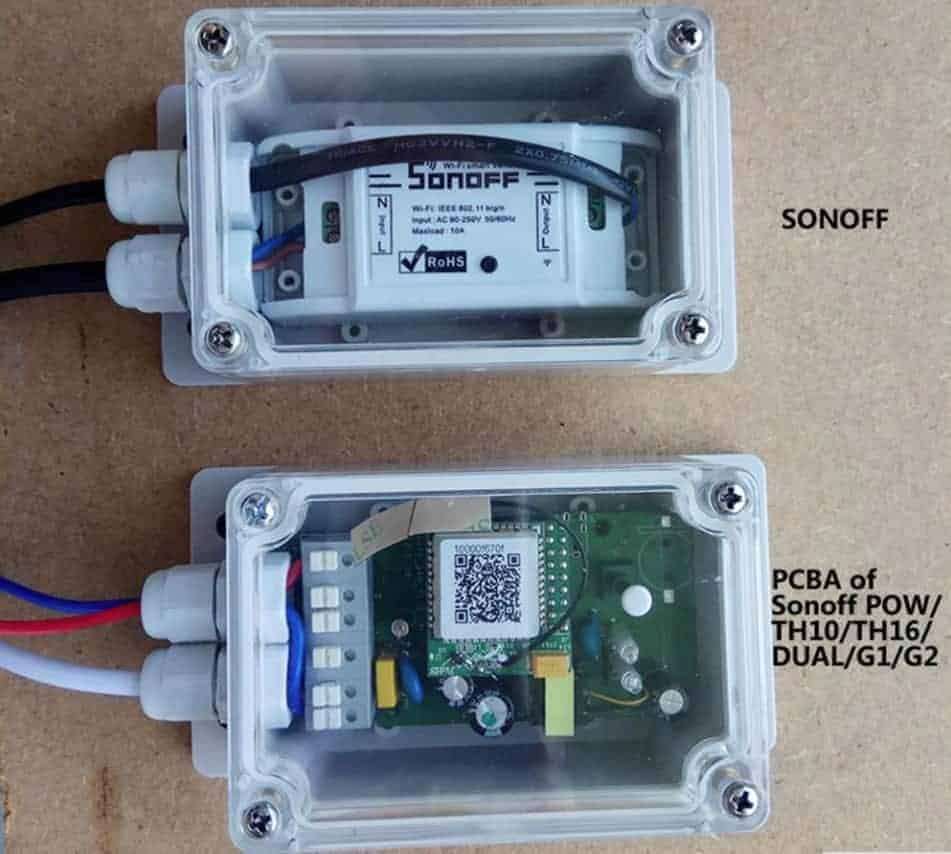

Suitable for the below switches (in certain instances you may need to remove the switch OEM casing)

• 20A smart switch PCB only (outer switch shell must be removed)
• 1 & 2 Ch smart relay boards
• 30A does NOT fit, requires Medium

Specification for IP66 Waterproof Case: see additional Images for more detail)

• Environmental rating: IP66
• Body Material: ABS V0
• Transparent Cover Material: PC V0

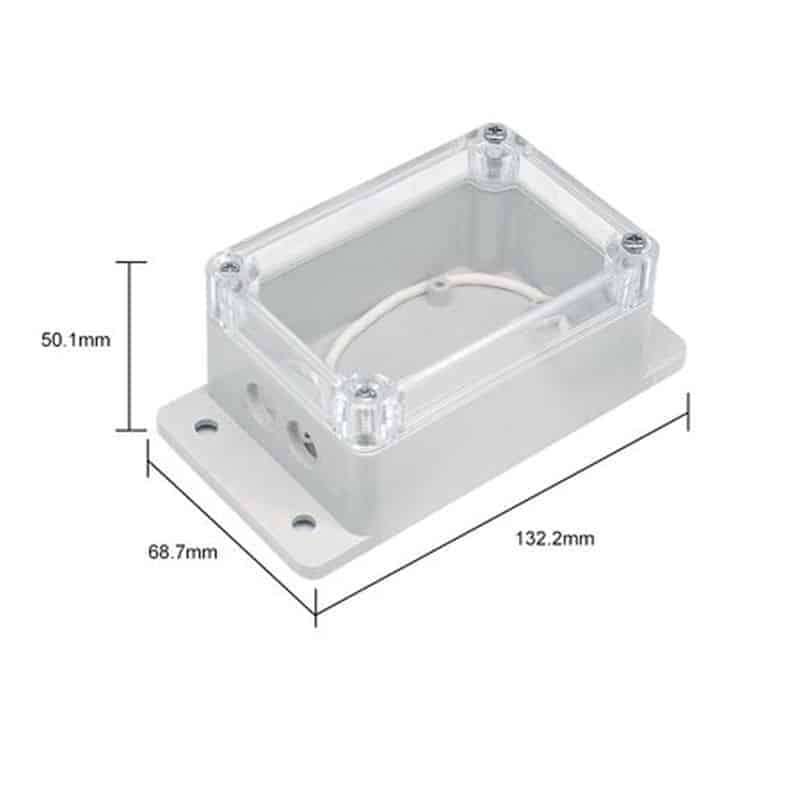

• Dimensions with outer mount flange: 132.2 x 68.7 x 50.1mm (L x W x H)
• Dimensions enclosure: 100 x 68 x 50.1 in mm (L x W x H)
• Weight: 145.0 g

Typical Uses (but not limited to)

• Security systems: Outdoor surveillance cameras, access control systems, and alarm systems.
• Industrial automation: Control panels, motor starters, and variable frequency drives.
• Renewable energy: Solar inverters, wind turbine controllers, and battery storage systems.
• Construction sites: Electrical junction boxes, control panels, and lighting fixtures.
• Mining industry: Remote control systems, sensor networks, and communication equipment.

In general, IP66 enclosures are used in any application where electrical components need to be protected from harsh environmental conditions, such as dust, water, extreme temperatures, and impact.

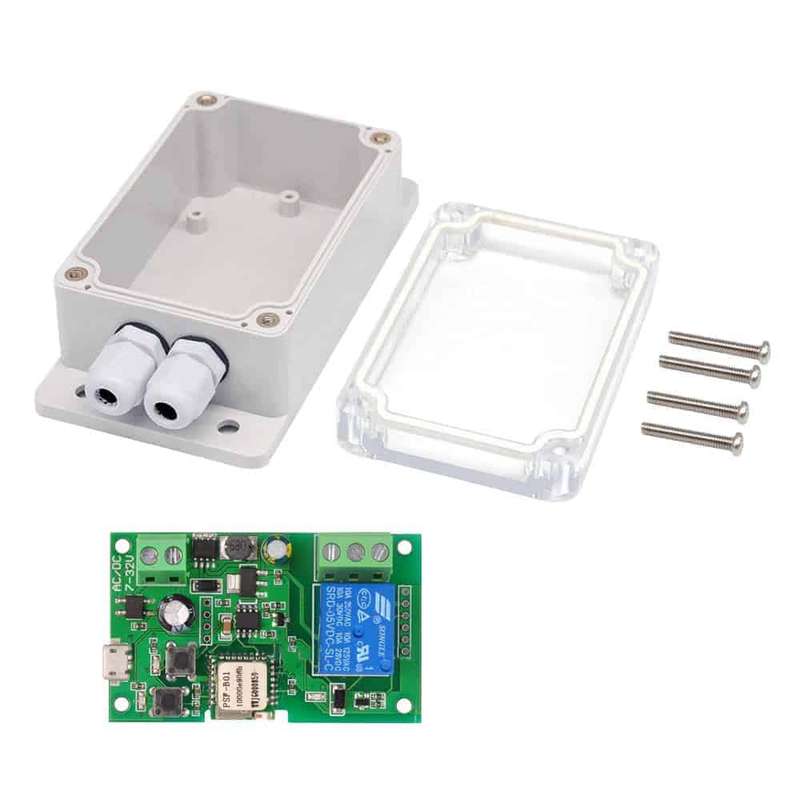

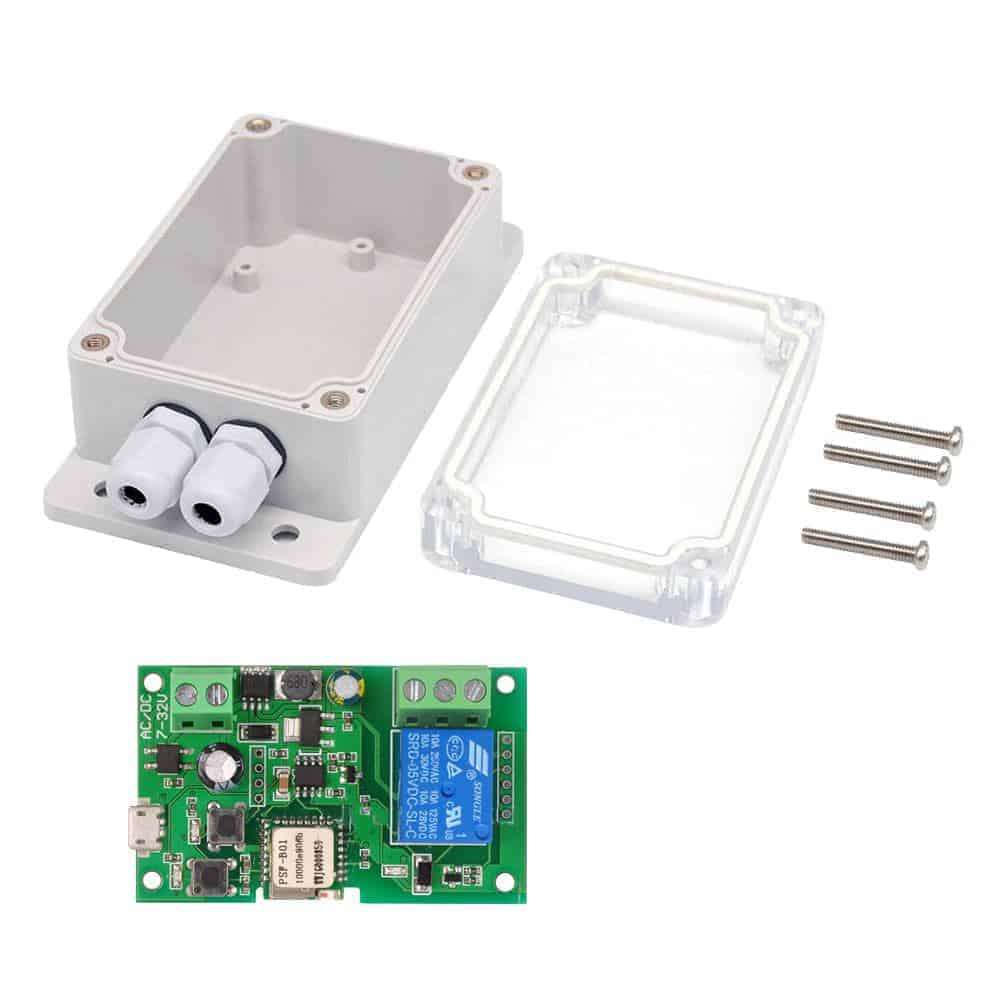

What's in the box?

• 1x Small IP66 Waterproof enclosure
• 2x PG7 Entry Glands
• 4x Lids Screws
• 1x Sealing band
