Description:

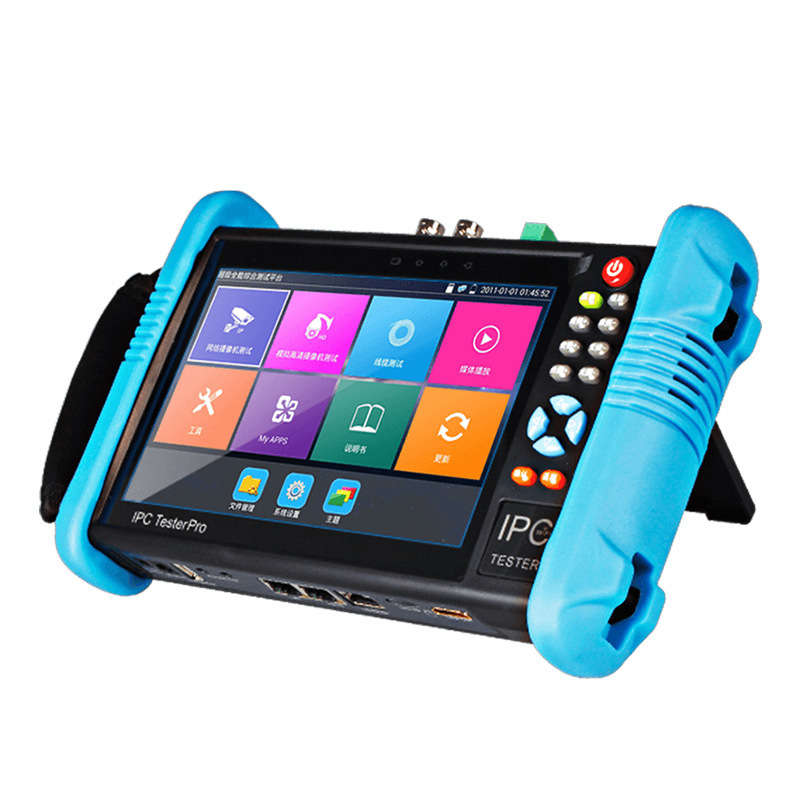

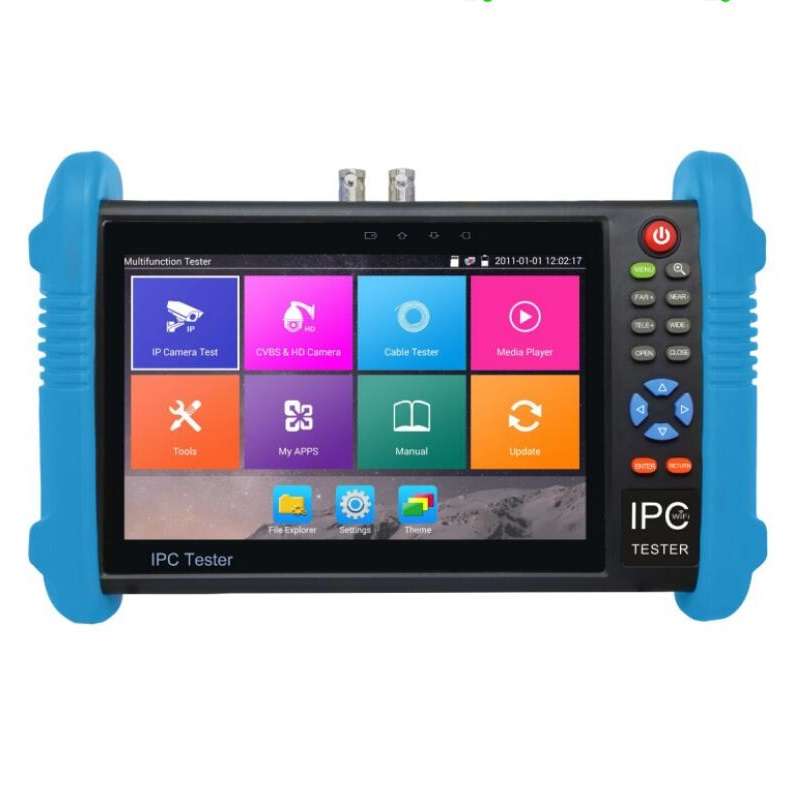

IPC-9800 Plus

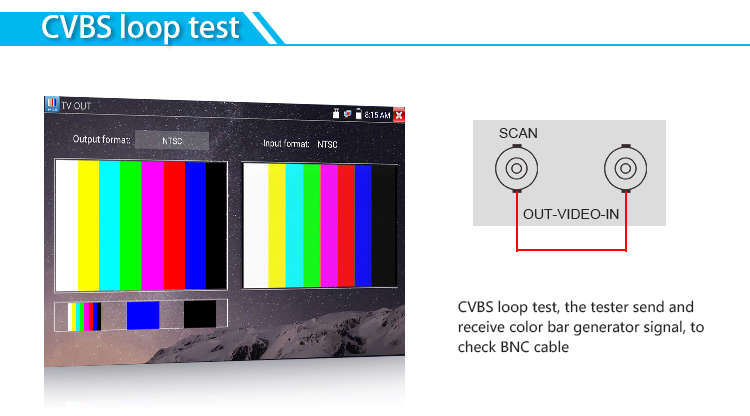

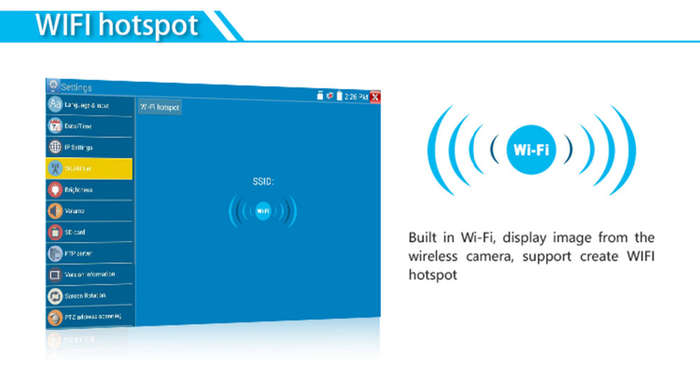

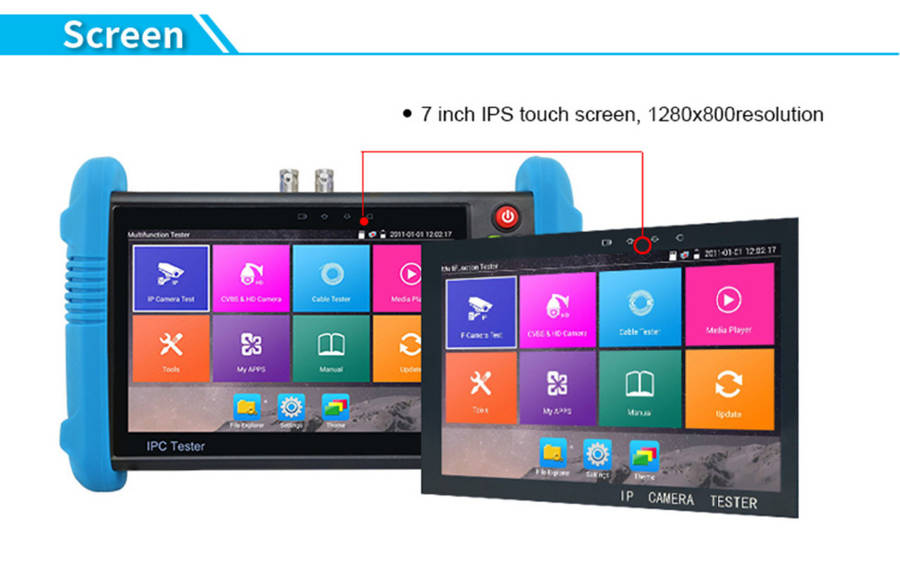

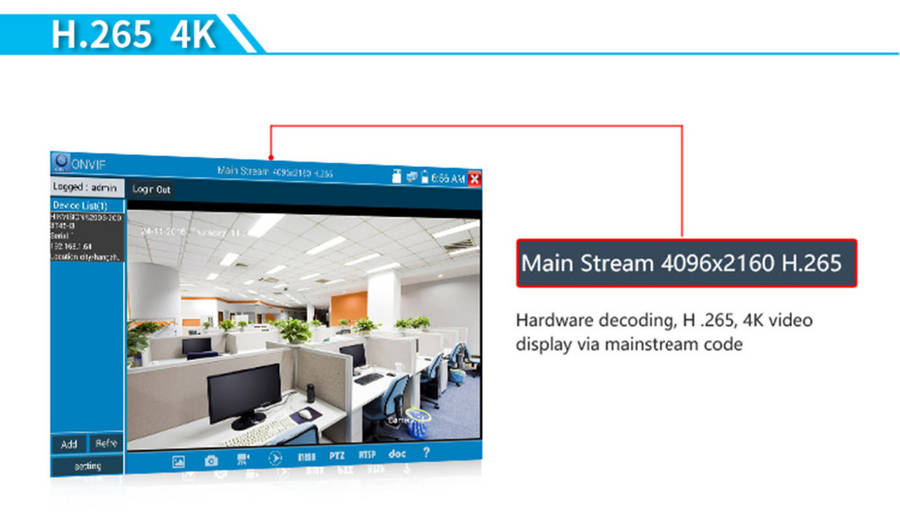

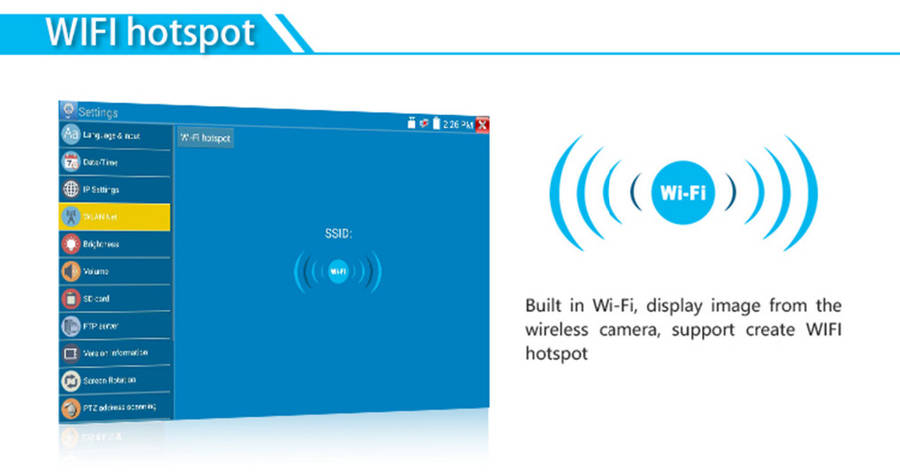

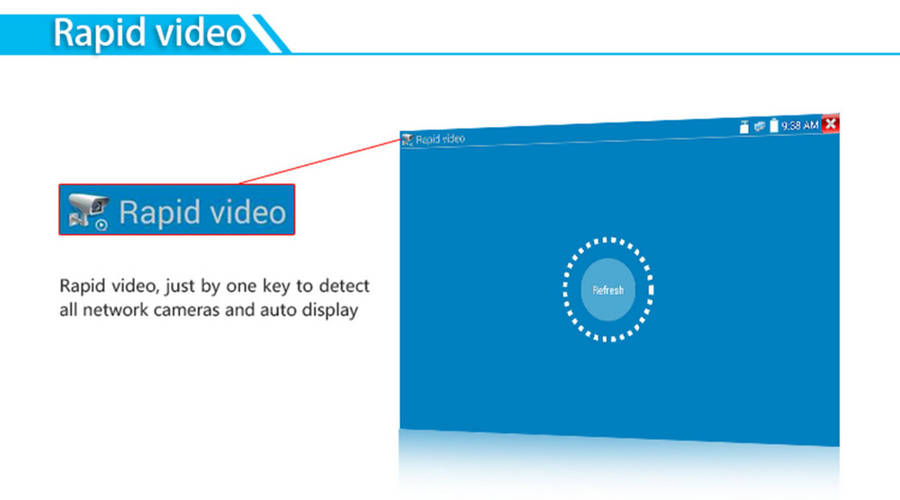

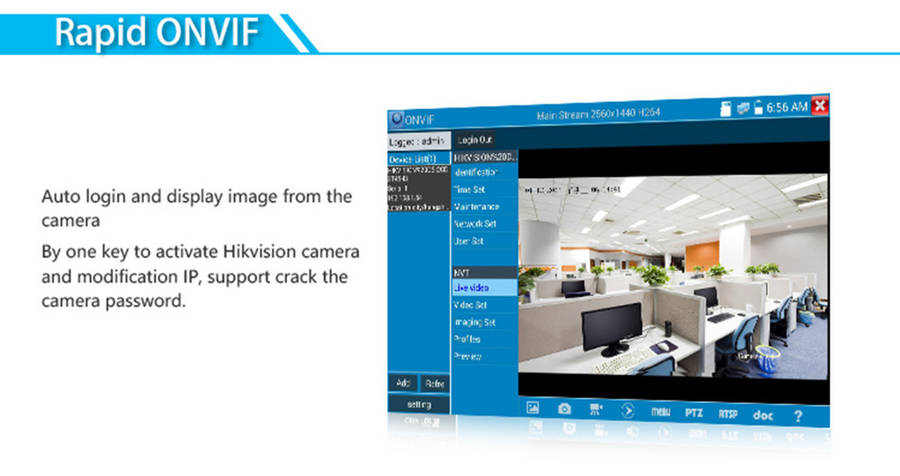

Camera test: ● 7 inch IPS touch screen, 1920*1200 resolution ● H.265 & H .264 IP, 4K video display via mainstream ● Rapid ONVIF, Auto log in & display image, create testing report ● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test ● CVBS camera test and PTZ control ● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera) ● Video level meter, peak video signal level, SYNC signal level, Colorful bar chroma level measurement* ● DC12V/3A power output, camera can be powered from DC 12Votage ● 48V PoE power output power ● Rapid video, just by one key to detect all network cameras and auto display ● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot ● CVBS loop test, the tester send and receive colorful bar generator signal, to check BNC cable ● Enhanced colorful bar generator, PAL/NTSC multi-system colorful bar video generator

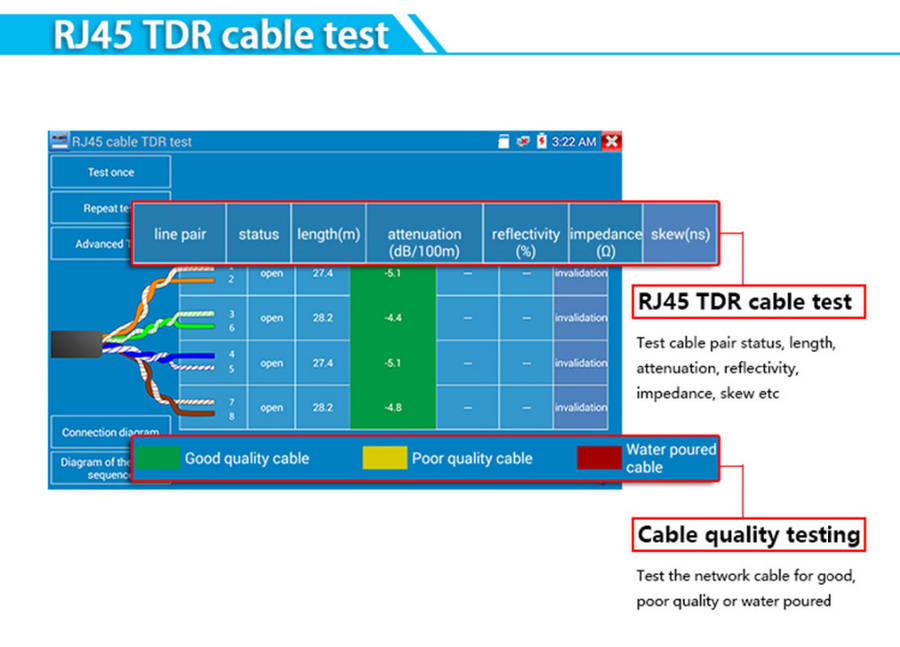

Cable test: ● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized ● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

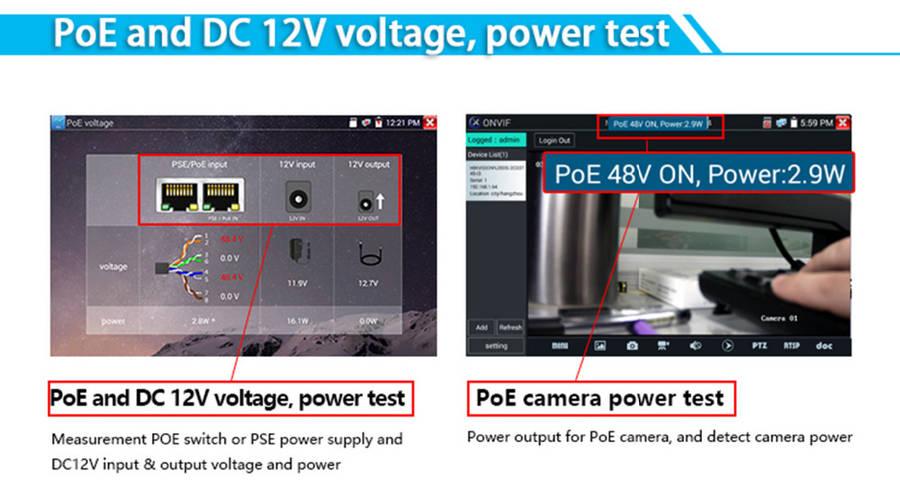

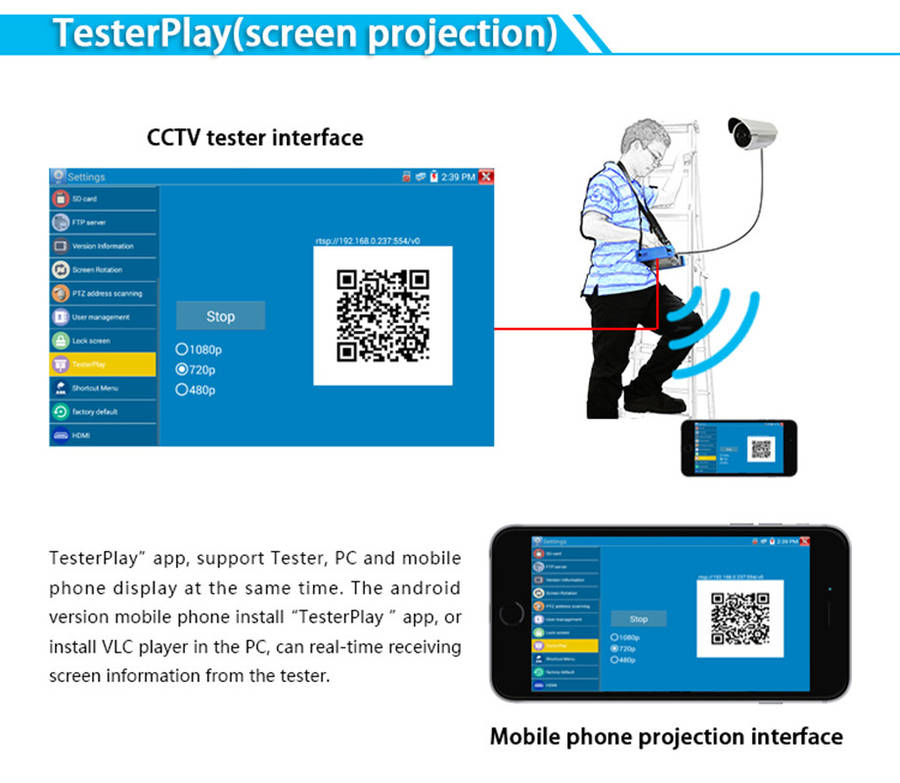

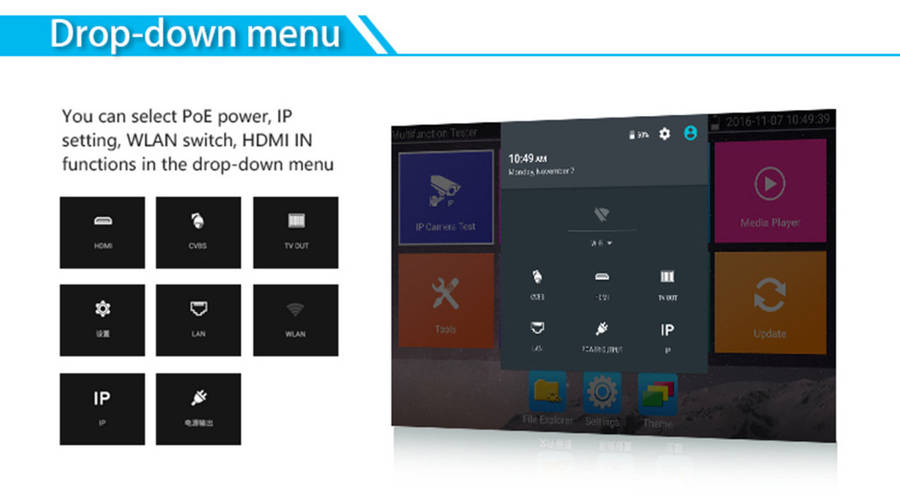

Other functions: ● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route ● POE & power information, DC12V& PoE power and voltage output /input measurement ● Tester Play: Tester, android version mobile phone and PC display at the same time ● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc ● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters ● Self -update software, you can install apps with android version ● Media player, 4K video files and MKV/MP4 media files play ● Quick office, quick office app (support excel, word, ppt format) doc. editable ● 8GB SD card including ● Display its genuine resolution of the IP camera images ● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools ● 7.4 V /7500mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours

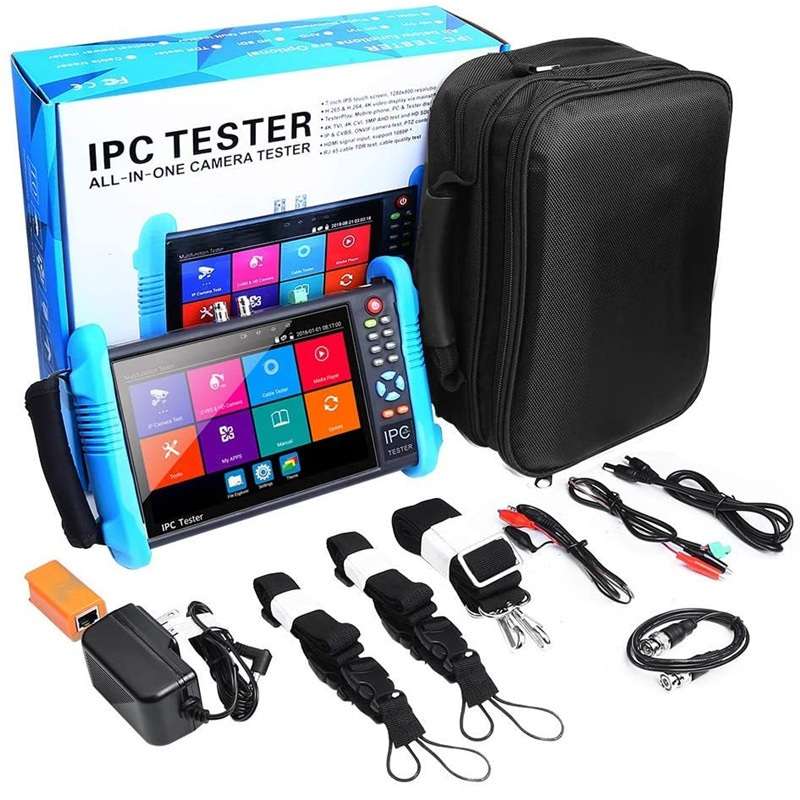

Package included:
1 x Host 1 x Tool bag 1 x Network cable test box 1 x Holding rope 1 x Original charger 1 x Lithium battery 1 x Power output conversion line 1 x RS485 control line 1 x Audio test line 1 x BNC video cable
Details picture:
|
