Product Description
IPTV Tv Stick Smart Tv Box HTML5 RTSP HLS Smooth Streaming
Key features to Create Your 3D & 4K HD Private Home Theater
4Kx2K@60fps -- 4K brings you the true-to-life picture quality. Enjoy the smoothing theater-quality HD video vision at home.
3D VIDEO PLAY -- Feel the shock of 3D cinema-like realistic view visions as long as your TV supports 3D function, or it just shows as normal effect.
HDMI 2.1 & HDR10 -- Ultra-fast running speed, transfer and process image much clearly and fast.
H.265 HEVC TECHNOLOGY -- Professional H.265 decoding technology saves 50% bandwidth resources and download time than H.264
VP9 DECODING -- Professional image processing ability for decoding and playing almost all popular audio and video formats.
So that you can enjoy 4K ultimate HD video and play thousands of android games in a large 4k screen, get a higher quality experience with less buffering.
Product Description

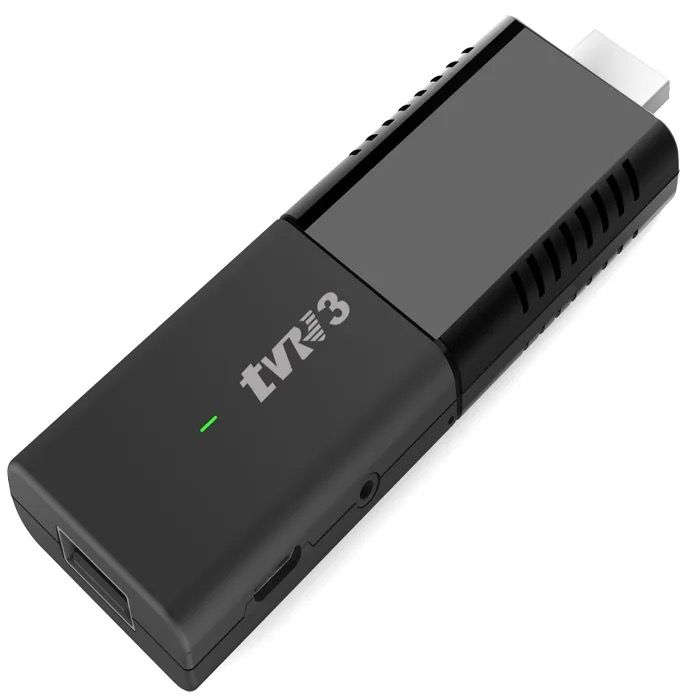

Android TV Stick: R2/R3
H.264/H.265 up to 1080P@60fps Video encoding
H.264/H.265 decoding up to 4K@60fps
Basic Parameters

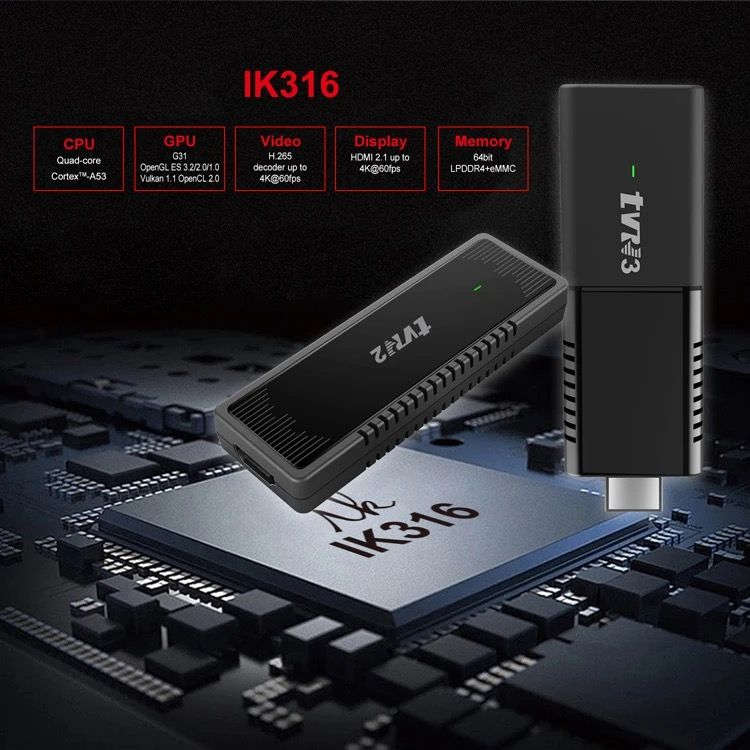

System SoC: Allwinner IK316
CPU: Quad core ARM Cortex-A53
GPU: Mali-G31,OpenGL ES3.2/2.0/1.0,Vulkan 1.1,OpenGL2.0
DRAM: 64bit LPDDR4 1GB (2GB Optional)
Flash: EMMC 8GB(16GB Optional)

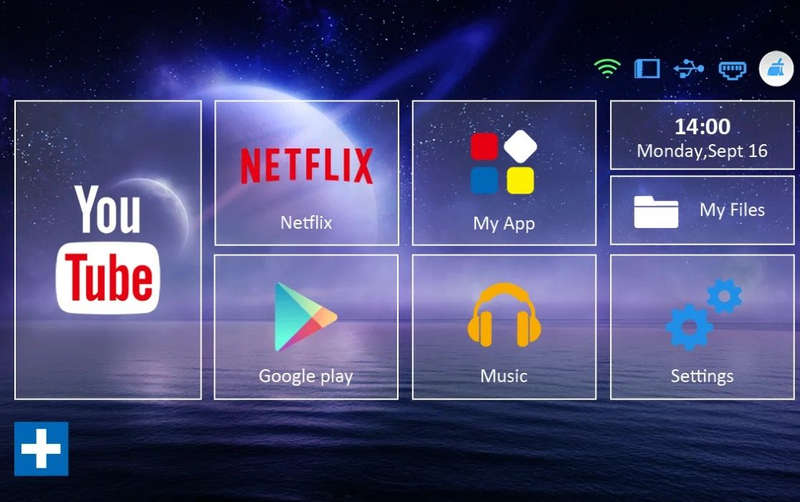

Launcher: Android OS
Language: Default English
OS: Android 10.0
Connectivity SV6256P Wi-Fi 2.4G+5GHz 802.11 a/b/g/n
I/O
Video Output HDMI 2.0a x 1
Audio Output HDMI 2.0a x 1

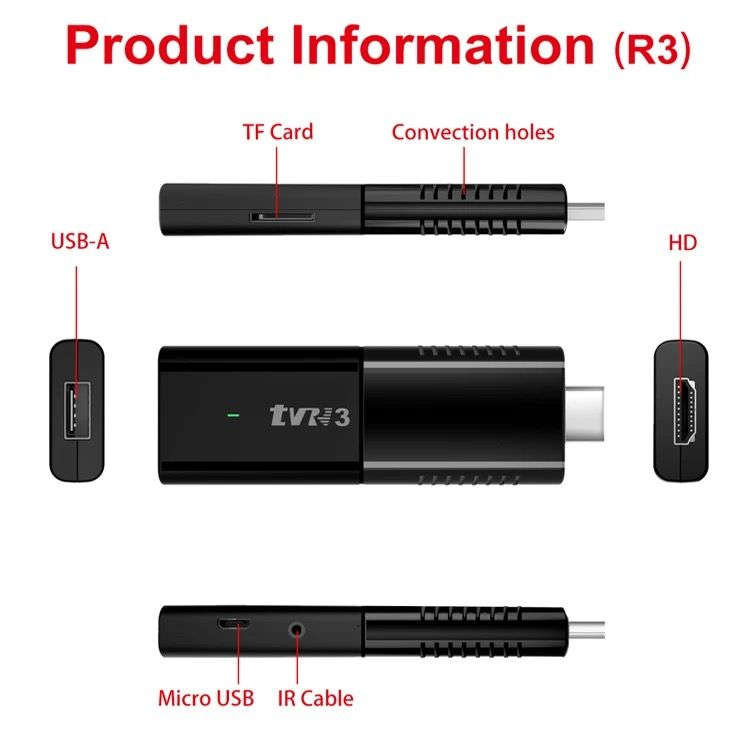

Peripheral Interface Update Recovery Key x 1, TF x 1(R3 supports)
Power Interface Micro USB DC 5V@1A ,with LED Indicator
Power Consumption 5W
Stanby Power <0.5W
Other Interface IR receiver,with extended line
Media
Video Decoder:
H.265 Main10@L5.1 up to 4K@60fps,
VP9 Profile 2 up to 4K@30fps,
AVS2 JuZhun 10bit Profile up to 4K@30fps,
H.264 BP/MP/HP@L4.2 up to 4K@30fps,
H.263 BP up to 1080p@30fps,
MPEG-4 SP/ASP@L5 up to 1080p@60fps,
MPEG-2 MP/HL up to 1080p@60fps,
MPEG-1 MP/HL up to 1080p@60fps,
Xvid up to 1080p@60fps,
Sorenson Spark up to 1080p@60fps,
VP8 up to 1080p@60fps,
AVS/AVS+ JiZhun Profile up to 1080p@60fps,
WMV9/VC1 SP/MP/AP up to 1080p@60fps,
JPEG HFIF file format up to 45MPPS,
Encoder:
H.264 BP/MP/HP,
H.264 supports I/P frame,and only support single reference frame,
MJPEG/JPEG baseline,
Maximum 16-megapixel(4096X4096)resolution for H.264 encoding,
H.264 encoding capability:1080p@60fps,
JPEG sanpshot performance of 1080p@60fps independently,
Supports the constant bit rate(CBR)/variable bit rate(VBR) bit rate control mode,ranging from 100Mbit/s,
Encoding of eight regions of interest(ROIs),
Format:
SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8 etc.
Audio Decoder:
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional )
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc.
Subtitle Format SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation
Photo Format HD JPEG/BMP/GIF/PNG/TIFF
Features
Network Streaming HTML5, RTSP, HLS, Smooth streaming
System Upgrading Upgrading via USB disk or internet
External Storage USB storage not less than 128GB (FAT32/NTFS)
APP TBD
Other Parameters
Packing List TV Stick x1;User manual x1;USB cable x1;HDMI cable x1;IR Cable x1;IR Remote x1
Operation Temperature 0~40 , Humidity<95%

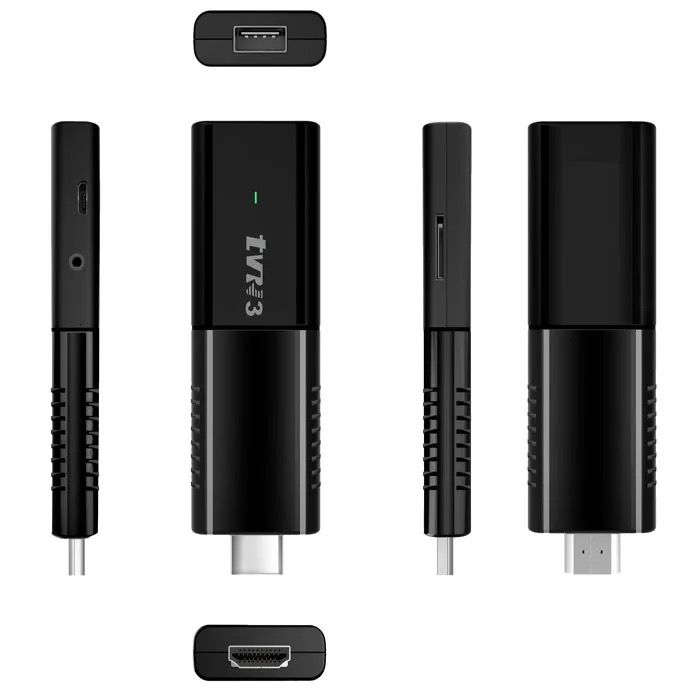

Physical characteristics Size: 99mmx33mmx12mm
Weight: TBD
Color:Black
Material: Plastic
Stickers MAC(QR code);Nameplate(Model Name)
What's in the box
1 x IPTV Quad Core Android Tv Stick 4k HTML5 RTSP HLS Smooth Streaming
