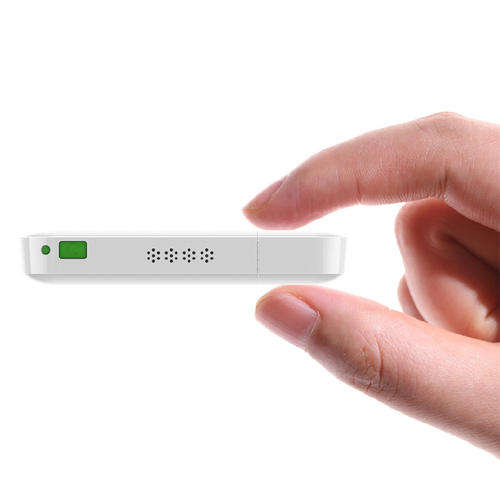

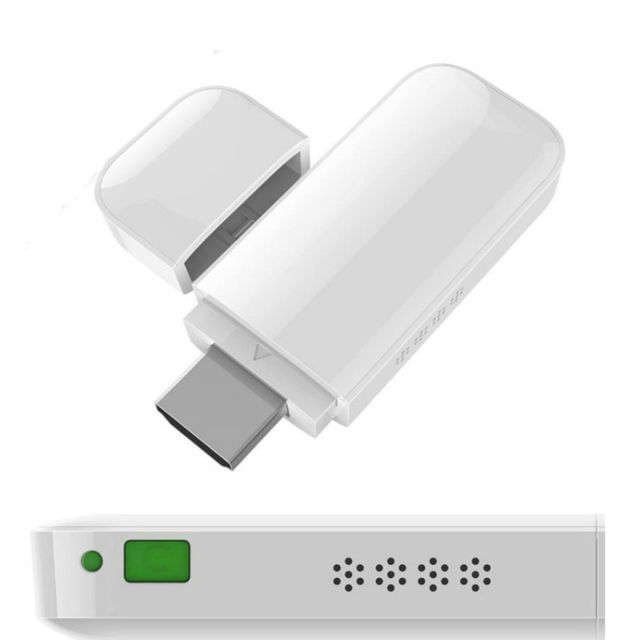

iPush AirPlay Wireless HDMI DLNA Wifi Display Receiver Transmission MediaShare

 Features:

• Support LCD/TV/Projector with HDMI interface sharing picture/video/music of Apple devices, Android 2.3 or 2.3 above smartphones /tablet PCs, Windows PC/laptop, blackberry phones, etc
• Support DLNA and AirPlay protocols

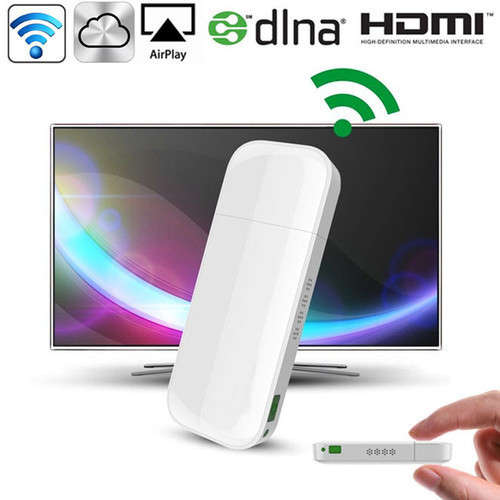

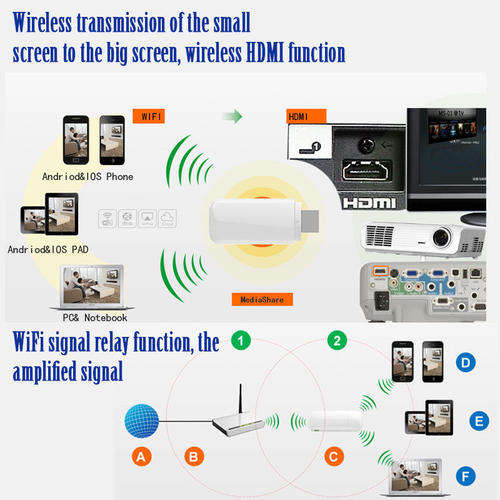

• Achieve the wireless interconnection between small screen handheld devices and large screen LCD/TV
• Support WiFi direct / AP mode, switched wirelessly via iPush software.
• Can directly download and play the online videos on your large-screen TV by operating the 6) applications in the handheld smartphone or tablet PC. (The cellphone/tablet PC only plays the role of remote control and you can continue the operation of other functions)
• Built-in high-speed 150M 802.11n Wi-Fi module and high sensitivity, high-gain antenna
• Support sharing 1080P HD and blu-ray online streaming, and local 720P multimedia content, and enjoy perfect picture quality.
• HD video multi-format supported.
• Exclusive Android based APK in Google Play for user-friendly experience. (Google Play: iPush)
• Low power consumption, low heat, and support charging via TV USB port or USB power adapter
• Small-sized, lightweight, convenient for travel

Specifications:

• OS: Linux 3.0.8
• CPU: ARM9, ATV6003
• Memory: DDR2, 128M
• Flash: 64M
• Wi-Fi: IEEE 802.11 b/g/n.
• HDMI: HDMI 1.3, HD video decoder (720p @ 60fps)
• DLNA: Digital Living Network Alliance (64M/128M DDR)
• Airplay: Support iOS multi-screen interactive (128M DDR)
• Audio Decoder: MP3, WMA, WAV, OGG, AAC, FLAC, 3GP, etc.
• Video Decoder: AVI, MKV, MPG, VOB, MP4, MPEG, FLV, DAT, MOV(H.264)WMV, ASF, RM, RMVB, 3GP, local content up to 720P, online up to 720P
• Picture Format: JPG, BMP, PNG, JIF, etc
• Power Source: 5V, 0.5A through Micro USB port
• Size: 73*28.6*12.3mm
• Weight: 20g

Preparing steps:

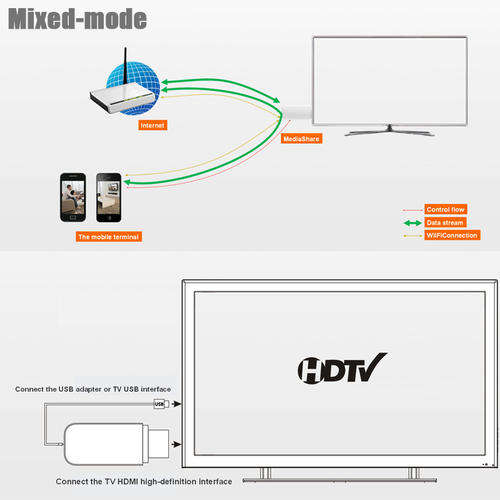

• Plug iPush into TV HDMI interface, standard HDMI extending line is recommended for better iPush experience
• Turn on TV and switch to HDMI channel
• Charge iPush via USB charger with minimum 1A power supply

User guide for android based product:

• Download and install iPush APK
• Entering Google Play Store, user search “iPush”, then download and install it, or user can scan two-dimensional code on TV screen
• iPush network setting: After starting up iPush, start up iPush APK and connect to iPush ID
• Start sharing local multimedia content or online streaming
• Sharing local multimedia content via iPush APK
• Online streaming: Connect to WIFI router and share online streaming via iPush APK, Connect android phone / tablet to the same WIFI router
• Switch on the online streaming APK installed in android phone / tablet (Please make sure the APK support DLNA agreement)
• Play the video in android phone / tablet and press DLNA icon to push online streaming to TV
• Please choose the iPush ID and press it for sharing

Package Contents:

• 1 x iPush Wifi Display Dongle
• 1 x USB Cable
• 1 x HDMI Extension Line
• 1 x User Manual
