Specifications
Color: Black
Cable length: 120cm
IR extend distance: Up to 25m(Depends on the quality and length of the cable)
Carrier frequency: Dual Band(30KHZ~50KHZ)
Receiving distance: 8m
MAX operating current: 15mA
Features:It can do control to the IR Signal source device by using the receiver IR (infrared) signal by the IR Receiver.
Control: To choose the CEC/IR extend function by manual (it needs to put the two IR Adapter switch to IR status).
Easy install and operation.
Power free.

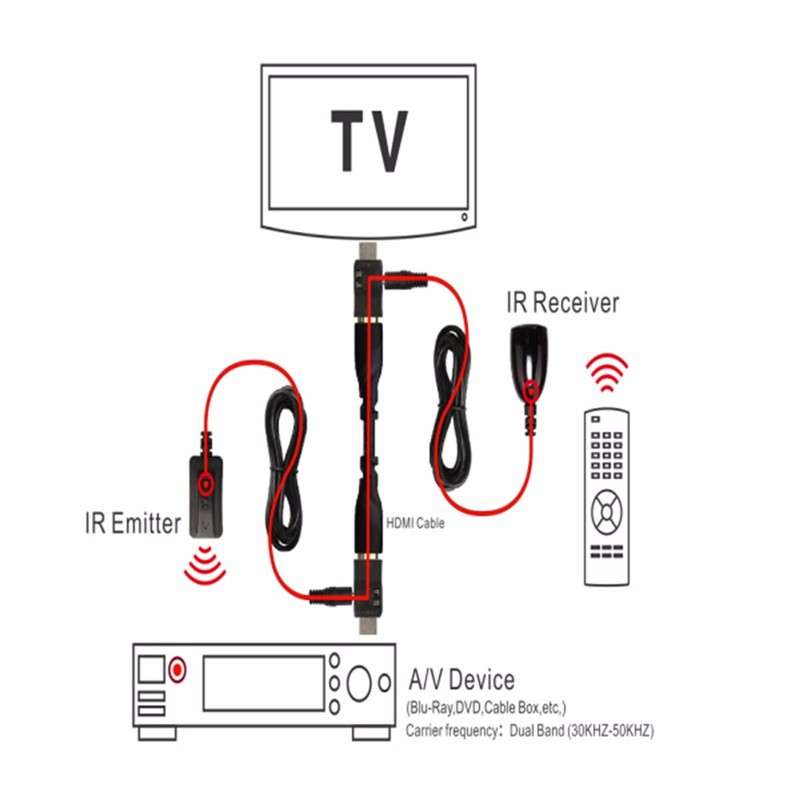

Usage instructions:
1. Use High Definition Multimedia Interface cable to connect the two IR Adapter High Definition Multimedia Interface input female port
2. Connect one of the two IR adapter output port with the signal source,
the other IR adapter output port to connect with display device
3. Connect one IR receiver with the IR-RX port of IR adapter
4. Connect the other IR emitter with the IR-TX port of IR adapter
Note:
Please use the standard High Definition Multimedia Interface Cable

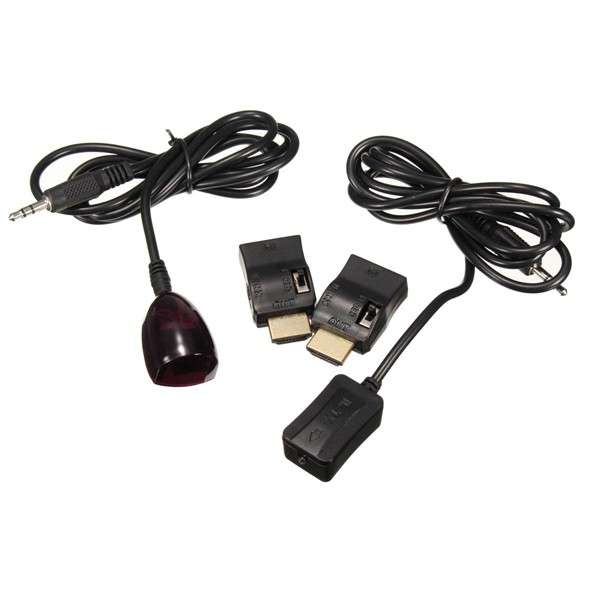

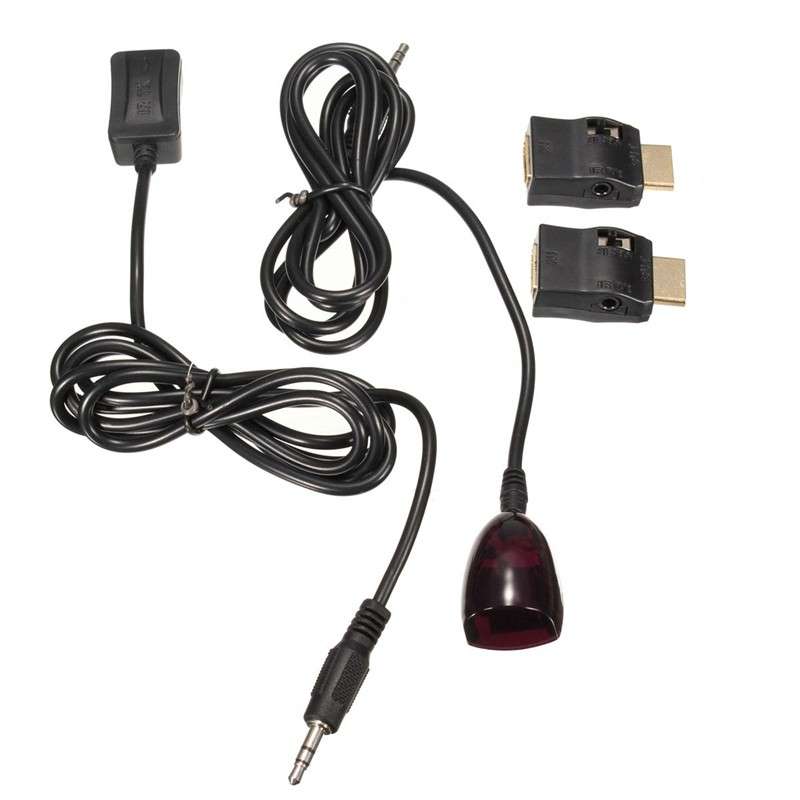

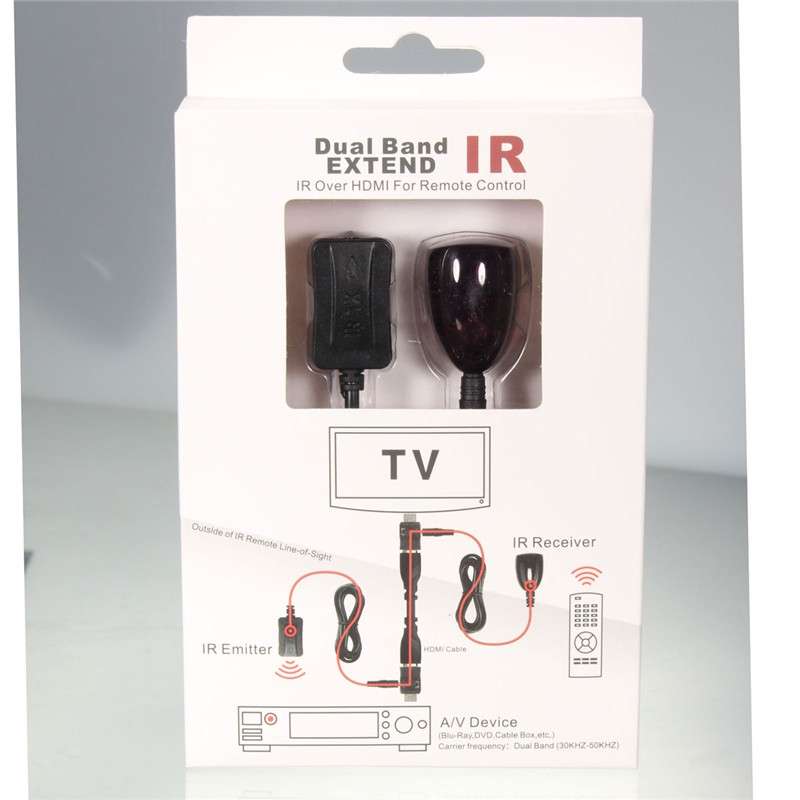

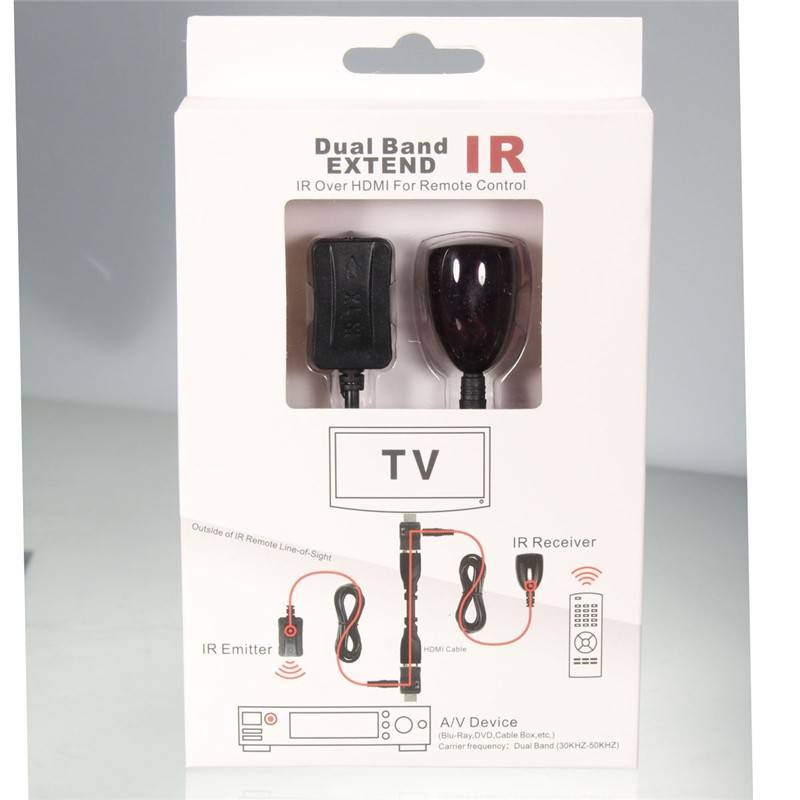

Package included:
2x IR Cables

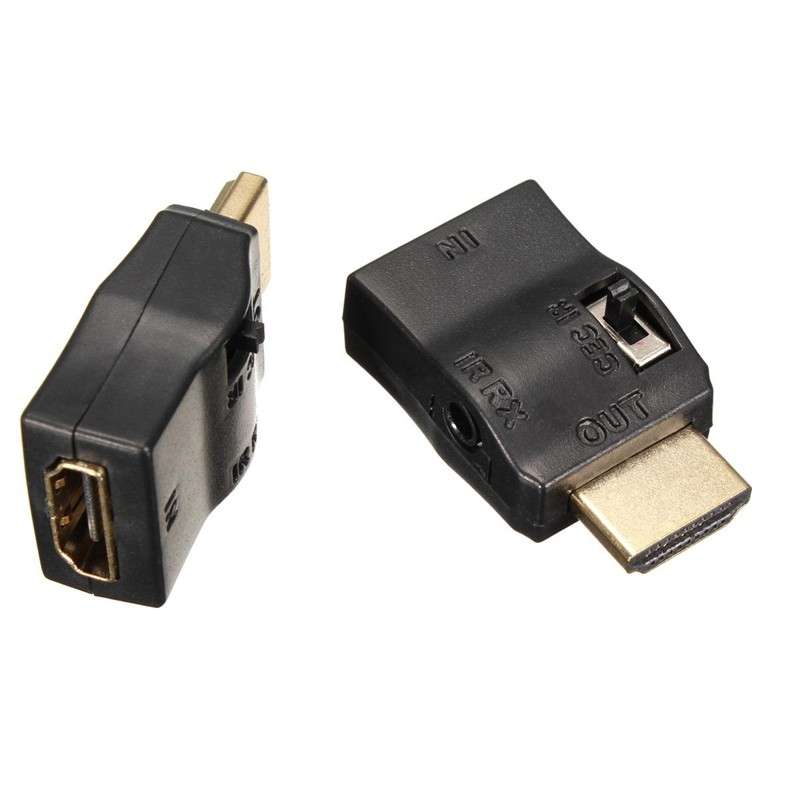

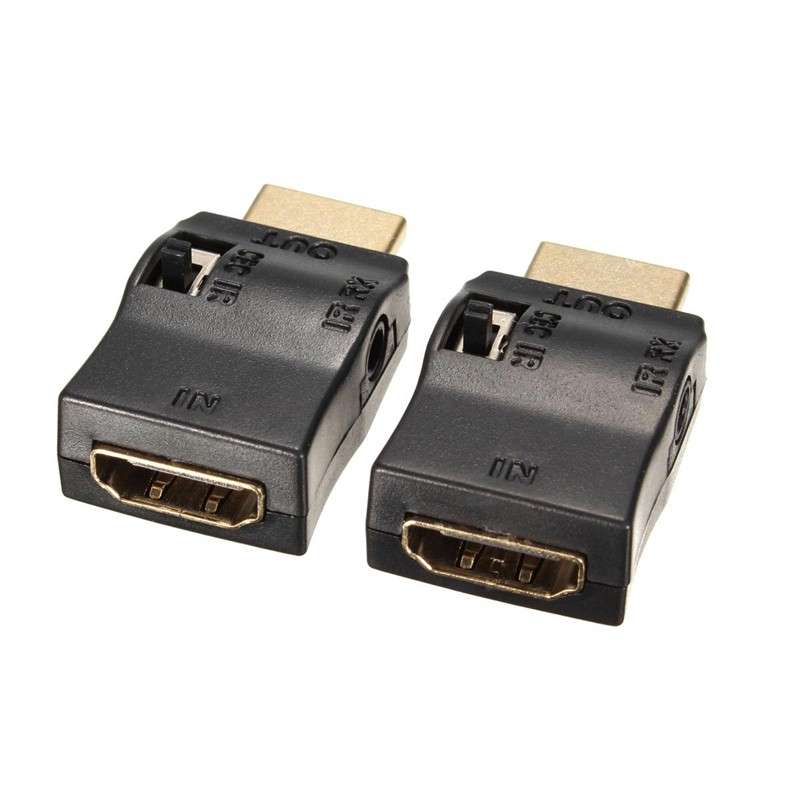

2x HDMI Male To Female IR Adapters

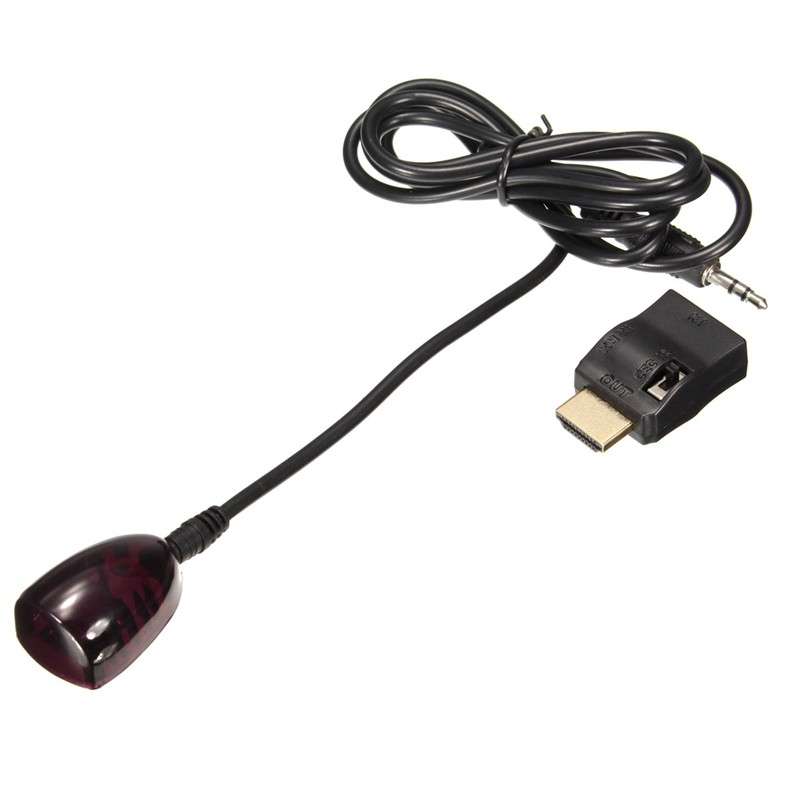

Pictures presentation:.
