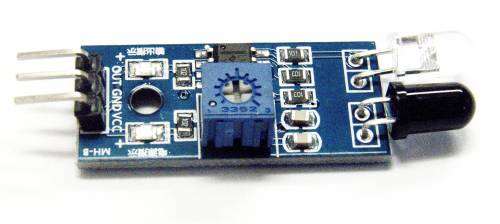

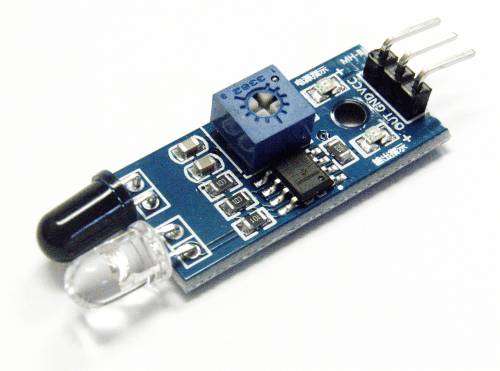

IR Infrared Obstacle Avoidance Sensor for Arduino ***LOCAL STOCK***

The sensor module adapts to ambient light, having an infrared emitting and receiving tube. The transmit tube emits infrared of a certain frequency, when the direction of an obstacle is detected (reflection surface), the reflected infrared is received by the reception tube. After the comparator circuit processes the signal, the green light will turn on, the signal output interface will output a digital signal (a low-level signal). You can adjust the detection distance potentiometer, the module has an effective distance range of 2 ~ 30cm. The working voltage is 3.3V- 5V.

Easy to assemble, easy to use features, can be widely used in robot obstacle avoidance, avoidance car, line count, and black and white line tracking and many other situations.

The sensor module output port "OUT" can be directly connected to the microcontroller IO can also directly drive a 5V relay; Connection: VCC-VCC; GND-GND; OUT-IO
The module can use a 3-5V DC power supply. When the power is turned on, the red power indicator lights up;
Board size: 3.2CM * 1.4CM


Package Included:

• 1 x IR Infrared Obstacle Avoidance Sensor for Arduino
