18" IR Touch Screen Touch Screen Panel with glass USB Powered
never used but without packaging

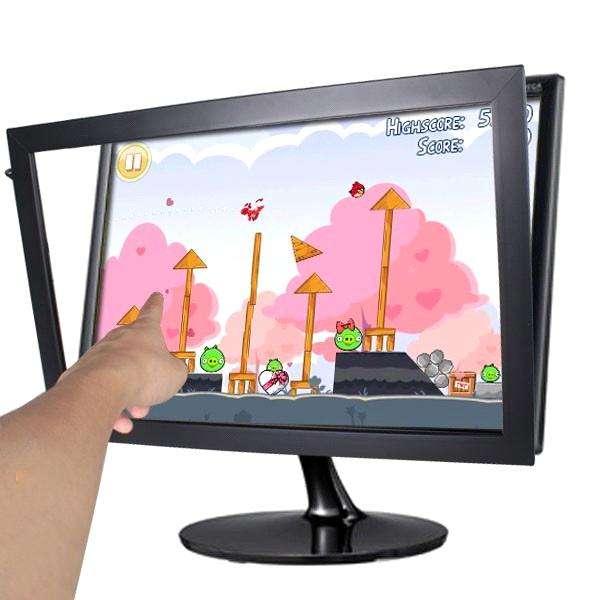

Turns your ordinary monitor into a touch screen instantly!!!
infrared touch screens features:
1. Win8 (32bits)/Win7 (32bits &64bits) Multi touch supporting
2. Touch speed & touch mode adjustable in the driver
3. Touch objects recognition can be set
4. Support "1-X"---One monitor working with X touch screens
5. Auto sleep when not using, prolong the touch screen lifetime.
6. Super low CPU utilization when working
7. Support SDK Software developing based on C/C++,C#/.Net,Flash/Flex/ AIR,Flash(AS 3.0),WPF, Java
8. Anti-light, anti-dust, can use in different environment.

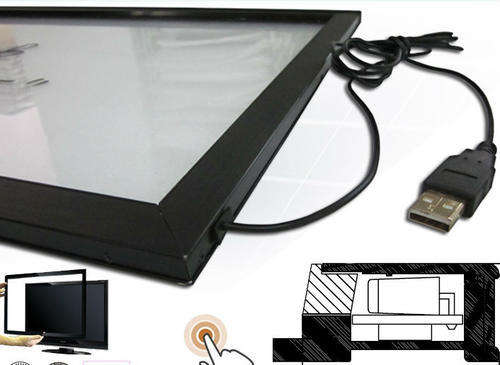

Installing of the touch screen:
The infrared touch screen is coming with the 3M double-faced tape, it is very easy to fix the touch screen overlay on the display surface 3M double-faced tape.
Compared with common technology, infrared can come with different multi touch points according to difference clients' requirements, no matter how many touch points (2/4/6/10/16/32 points) the performance is same, very good.
Since the infrared touch screen is made with more intensive sensors and more advanced design, the multi touch will still work even there are 10% sensors broken.
Infrared touch screen support WIN 7/WIN8 multi touch, Win XP/Mac Single touch, Andriod Single touch
Technology
Infrared
Touch Accuracy
±1mm, over 90% in sensitive touch area,resolution reported by USB is: 4096*4096
Response Speed
≤6ms
Touch Object
Finger, glove hand, or other opaque object
Touch Points
1 touch point
Touch time
No limited
Scan Speed
100fps
sampling rate
60ppi/s
Touch pressure
No
Min recognition objects
3mm*3mm, support super slim pen point touch
Working voltage
3.3V-5.0V
Average current
Less than 100mA
Anti-highlight
Yes
SDK Software Language
C/C++,C#/.Net,Flash/Flex/ AIR,Flash(AS 3.0),WPF, Java
Sleeping mode
Support (when there is no touch the touch screen will enter sleeping mode)
Surface durability
Hardness of glass is level 7
Compatible Operating System
Win/XP/Win7/win8/Mac
