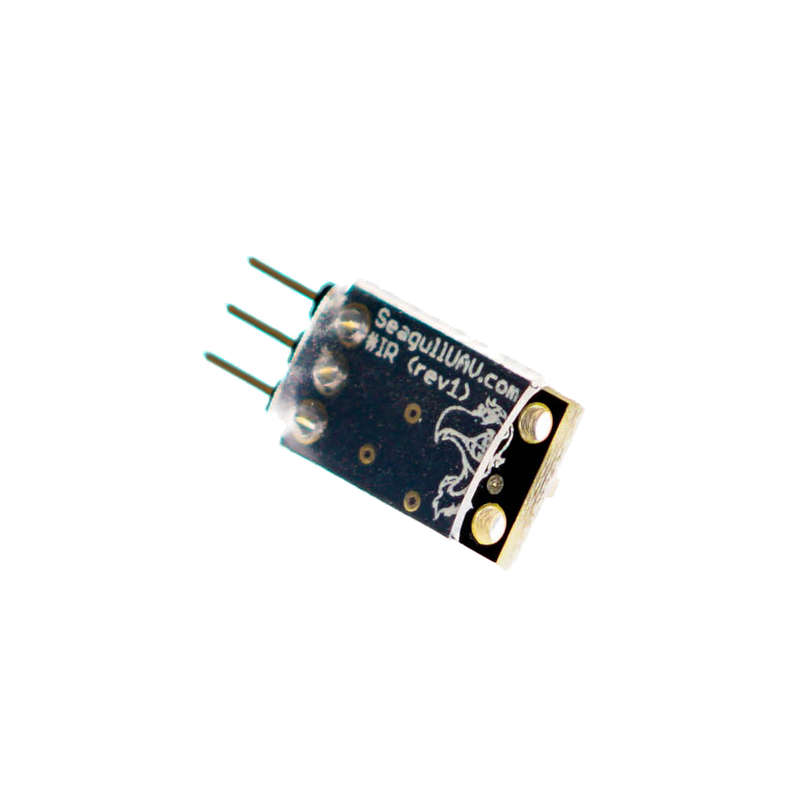

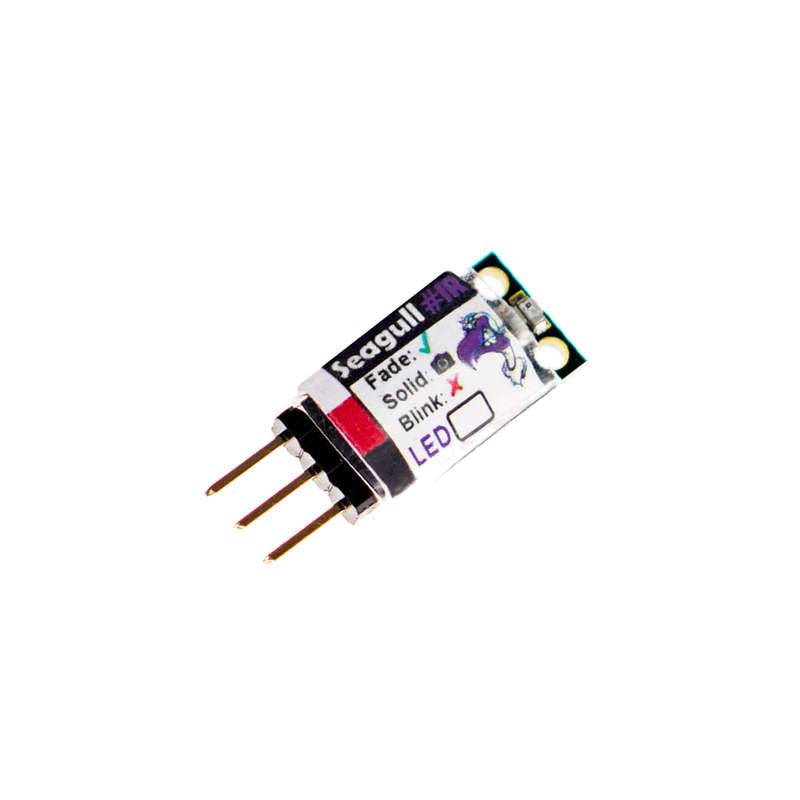

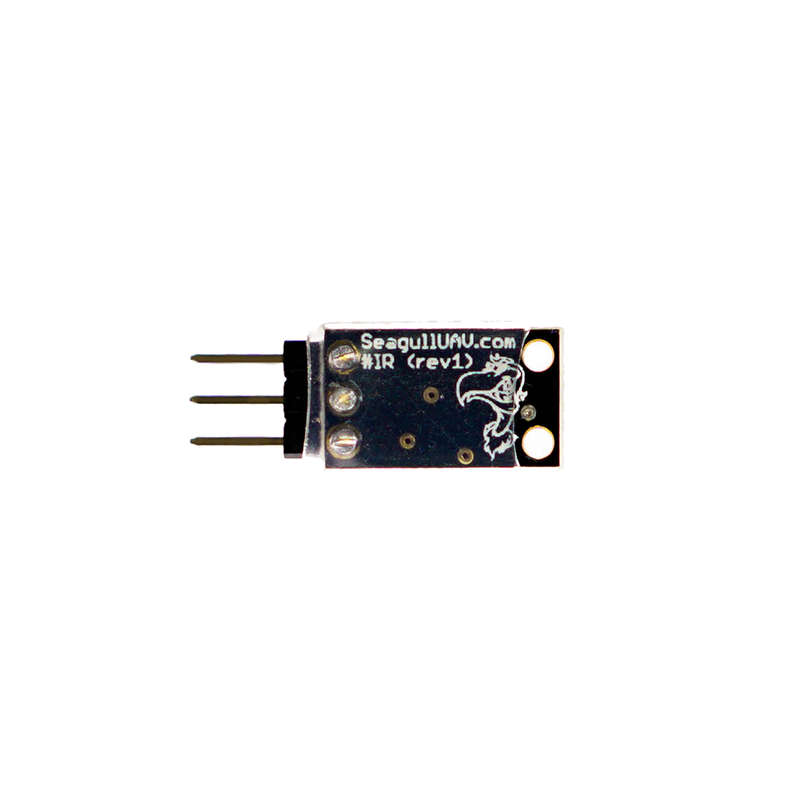

IR Trigger

IR is an infrared camera trigger !

Seagull #IR gives you control of your cameras shutter via infrared commands.
#IR will work with Sony, Nikon, Canon and Olympus cameras that are able to be triggered by an infrared remote. Servo cable is included with #IR making it really simple to get started !

#IR can easily trigger your camera either with your R/C transmitter from the ground, or let your Flight Controller do the job. A lot of camera brands and models are supported.


NOTE: Seagull #IR will work with all cameras listed - no matter which model your order it for !
( Your selection helps us create even greater products ! :) )


#IR is here to help you capture !

Working within Aerial photography, Geomapping, Agriculture analysis, 3D modelling or something else where you need to trigger your camera from a UAV platform?
We have a perfect solution for you, introducing Seagull #IR!

#IR is controlled by a single standard PWM servo signal from your R/C receiver and/or Flight Controllers like 3DR Pixhawk, APM 2.6, DJI Wookong, DJI A2 and many others with camera support.

NEW: Users of Sony cameras are able to use Video Record function as well, which is featured by #IR ( Video Record feature is ONLY supported by capable Sony cameras )




What it does

Seagull #IR support the following functions

Picture ( Shutter release action )
Video Record ( Video start/stop - NOTE: Only works with capable Sony cameras )


What it supports

The following hardware is supported

Flight Controllers: 3DR Pixhawk, APM 2.6, APM 2.5, DJI Wookong, A2 and many others with camera support
All R/C radio systems that interfaces with standard PWM signal (almost any radio system)


What you get

The following is part of this product

1 x Seagull #IR
1 x Servo cable ( 30cm length )


What it is

Details for this product

Dimensions: 23.5 x 9.8mm x 4.4 mm
Weight: 1g ( ~4g with servo cable)
Voltage: 3.5 5.5 volts ( 5 volts recommended )
Current: 22.5mA (maximum current draw)
Input signal: Standard R/C PWM servo signal ( between 1000 2000uS )


(Place a link to the below where you find it best suitable)
Link to Manual (www.seagulluav.com/manuals/Seagull_IR-Manual.pdf)
