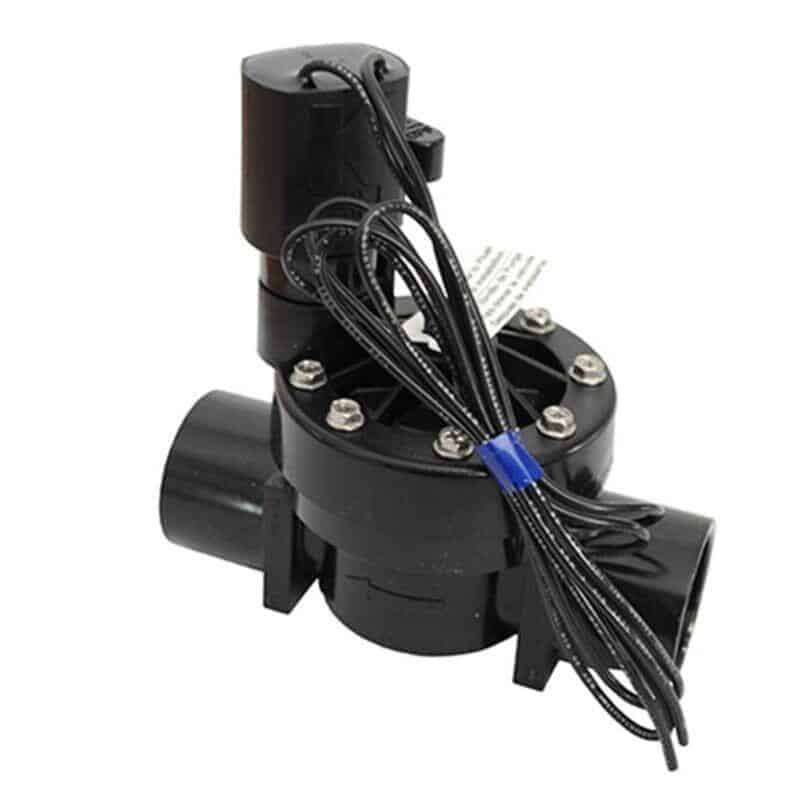

Irrigation Solenoid Valve K-RAIN | Pro150 Series Full Flow, 1" BSP 25mm, 24VAC

K-Rain is USA based company with numerous irrigation Patents. Top is not secured via a 'jar head screw' lid but rather via superior 8 stainless steel screws to ensure a great lasting and best performing unit. K-Rain's Pro Series 150 valves offer the irrigation professional a wide array of features and benefitsThe 1 valve has a removable metering pin and external bleed screw promoting easy maintenance and manual operationHeavy duty, corrosion and UV resistant PVC construction increases the life of the valveManual external bleed screw provides for manual operation in system start upManual internal bleed through solenoid providing for manual operation without discharging water outside the valveCaptured plunger allows for the solenoid to be removed without losing the internal plungerExternal bleed screw with removable metering pin allows for easy cleaning of he metering pin without disassembling the valveModel: KR7101-BSP / Colour: Black

Technical Specifications Irrigation Solenoid Valve:

• Input Voltage: 24VAC nominal (18 — 30VAC)
• In-Rush Current: 0.45A / 11Watts (upon initial activation)
• Holding Current: 0.25A / 6Watts (to hold the valve open)
• Pressure Rating: 0.68 - 10.34Bar max (10-150PSI)
• Thread: 1 Inch BSP (British Standard Part) = SA standard (fits all)

Features & Benefits

• Heavy Duty, Corrosion and UV Resistant PVC Construction — Increases the life of the valve.
• Manual External Bleed Screw — Provides for manual operation in system start up.
• Manual Internal Bleed through Solenoid — Provides for manual operation without discharging water outside the valve.
• Captured Plunger — Allows for the solenoid to be removed without losing the internal plunger.
• External Bleed Screw with Removable Metering Pin — Allows for easy cleaning of he metering pin without disassembling the valve.

Make your Irrigation System Smart

These solenoid valves are tested to work with our 'Smart Wifi Irrigation System', meaning you have full control of all aspects of your irrigation timing, water days, start end times etc. via the comfort of a single app on your cell phone. If you would like the system to switch off for a period of time following rain you will need to purchase a water detector [click here] and configure it using the IFTTT (IF This Then That) app. i.e. "if it rain switch off my irrigation for 3 days"Our Range of Smart WiFi Irrigation & Sprinkler controllers:Type 1 - Enclosure Type includes a Built-in 24VAC transformer

• 4 Zone [click here]
• 8 Zone [click here]
• 12 Zone [click here]

Type 2 - Panel Type - optional Transformer

• 4 Zone [click here]
• 8 Zone [click here]
