Irrigation Sprinkler Pop-Up & Nozzle | K-RAIN NP4 + KVF10 | 6m Diameter Spray, 25cm height

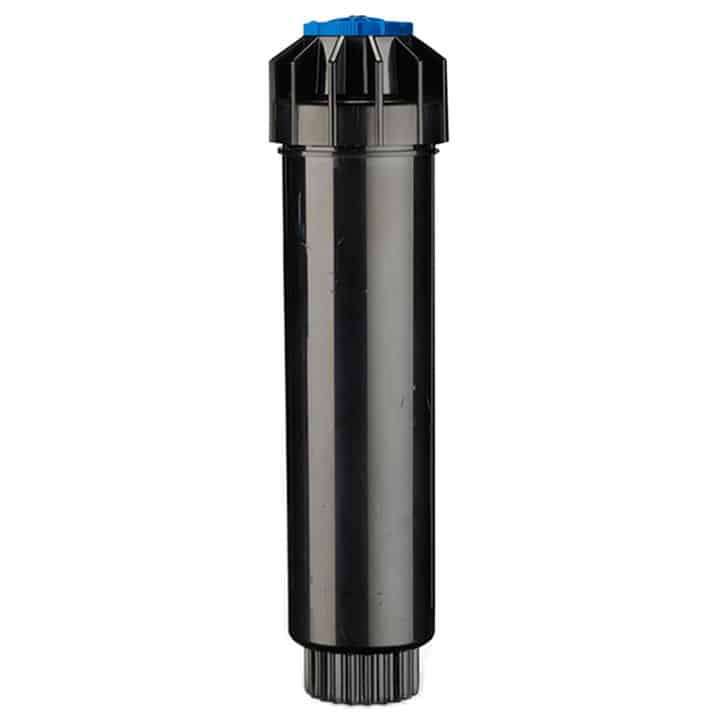

Irrigation Pop-Up with Nozzle, complete set.

K-Rain is USA based company with numerous irrigation Patents. NP pop-up sprays are built with the contractor in mind. With the narrow profile, replacement is effortless. The durable seal ensures leak-free operation and extends product life.

FEATURES AND BENEFITS - model series KVF10:

• Most popular combination of spray body & nozzle namely. Blue or Brown nozzle supplied - depending on availability
• Spray body / Pop-Up 25cm (extended raised length), model series NP4.
•  Nozzle Spray Head 0-360 degrees adjustable , 6 meter spray diameter), model series KVF10FEATURES AND BENEFITS:
• Provides flexibility in system design.
• Accepts Female Threaded Nozzles.
• Stainless Steel Retraction Spring Provides reliable retraction of the riser in all soil conditions.
• Ratcheting Riser Allows for easy pattern alignment by turning the riser.
• Narrow Profile Body Easy to retrofit with existing systems.

SPECIFICATIONS:

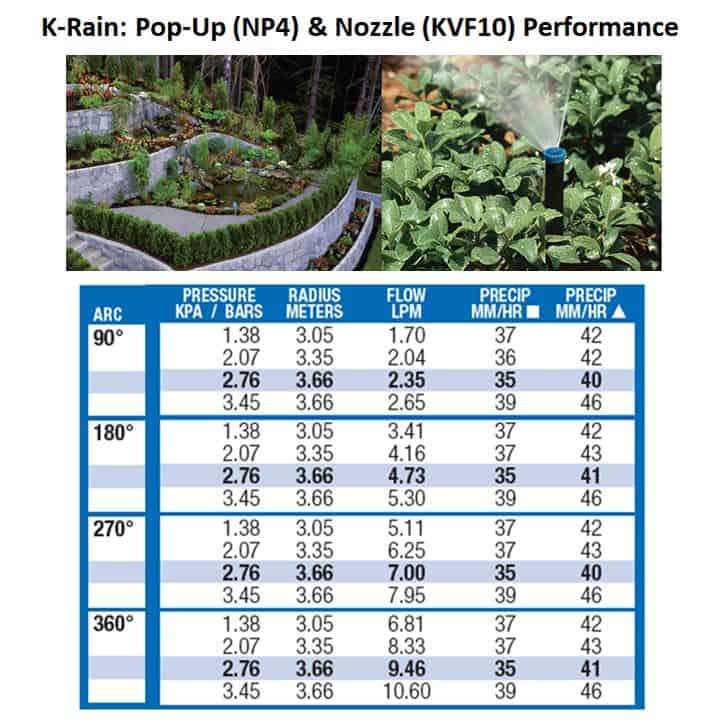

• Spray Distance 6m diameter (3m either side of the nozzle)
• Pressure Rating: 20 70 PSI (1,4 3,5 bars)
• Inlet: 1/2" (1,3 cm) NPT Female Thread

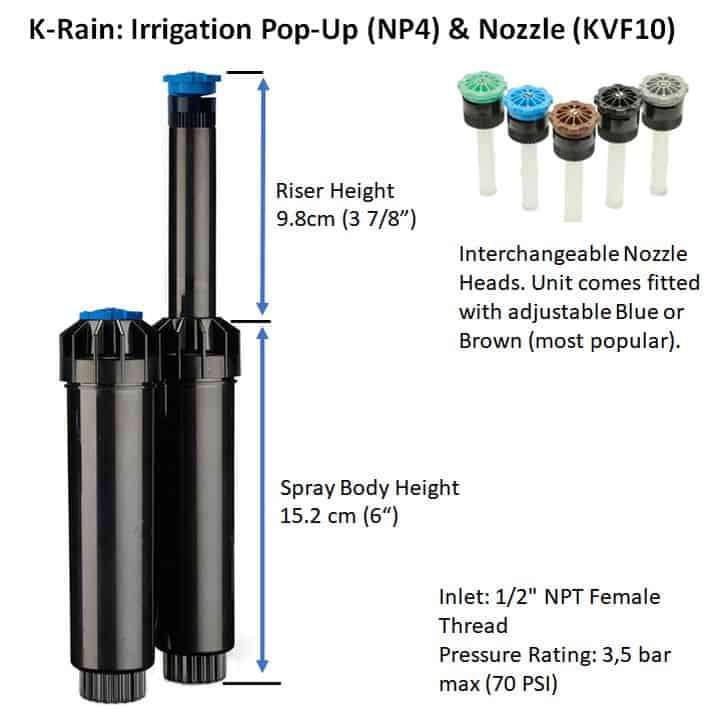

• Spray Body Height: 6" (15,2 cm)
• Riser Height: 3 7/8" (9,8 cm)

Optional Items:

Our Range of Smart WiFi Irrigation & Sprinkler controllers:

Type 1 - Enclosure Type includes a Built-in 24VAC transformer

• 8 Zone [click here]
• 12 Zone [click here]
• 4 Zone [click here]
• Solenoid Valve 1" 25mm / 24VAC operation [click here]

Type 2 - Panel Type - optional Transformer or for smart upgrades use your existing 24VAC transformer

• 6 Zone [click here]

What's in the Box?

1x Irrigation Pop-up & Spray Nozzle
