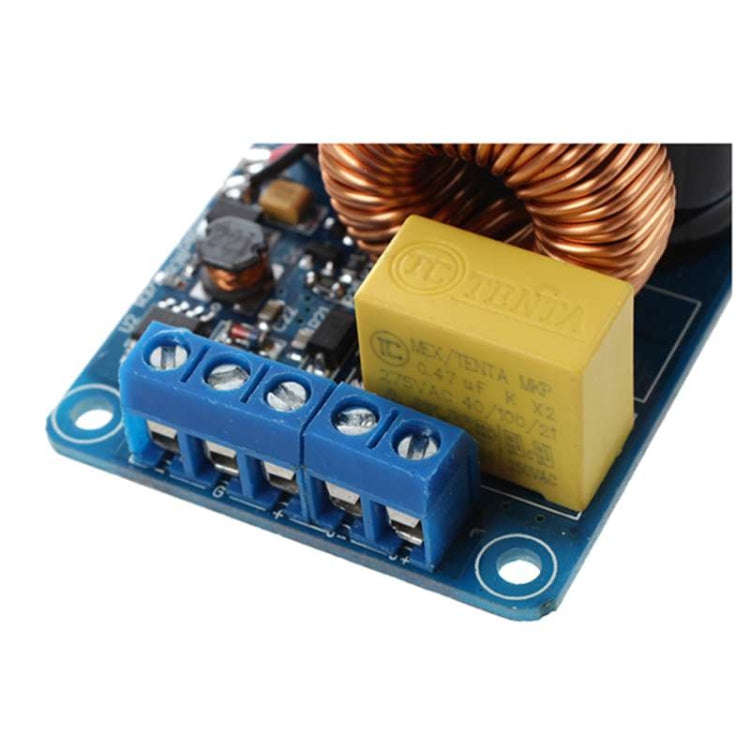

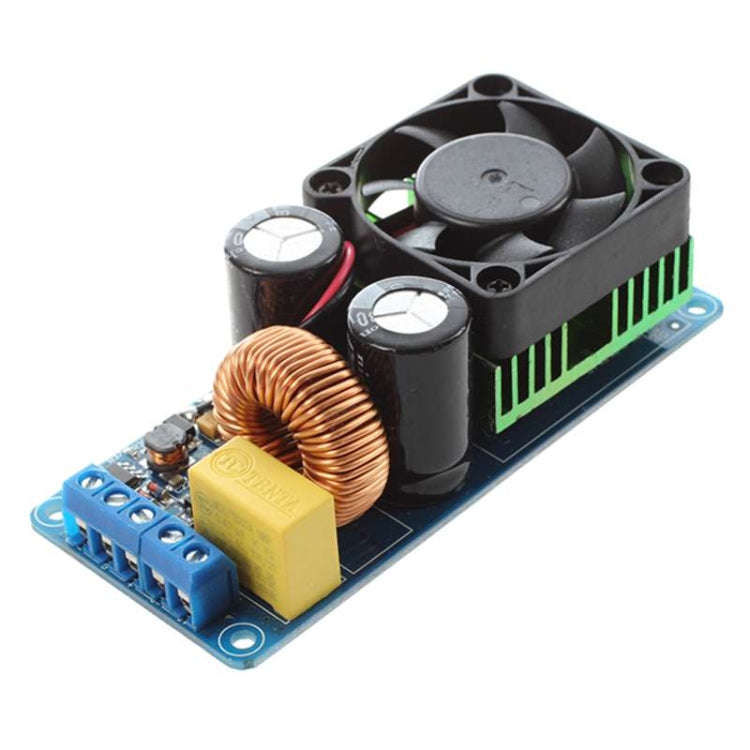

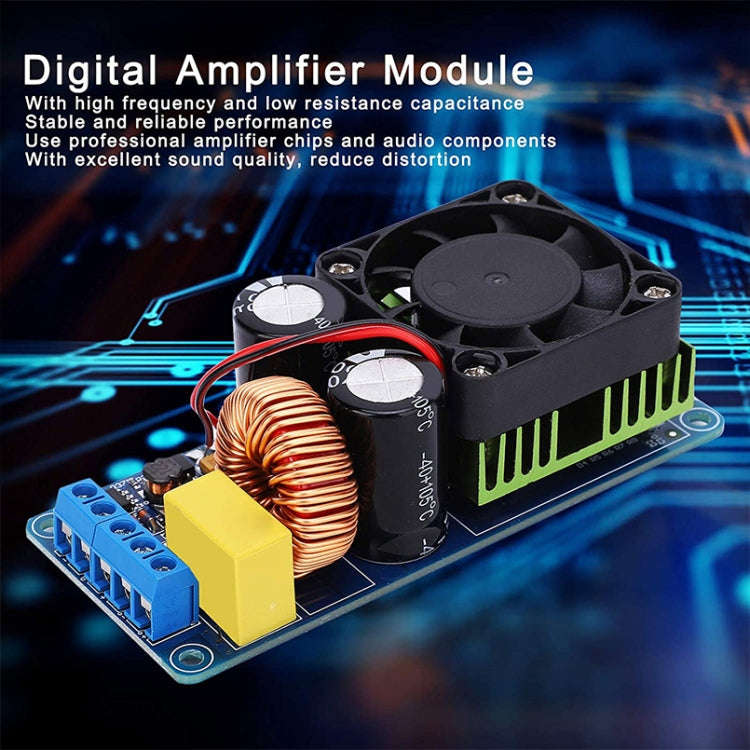

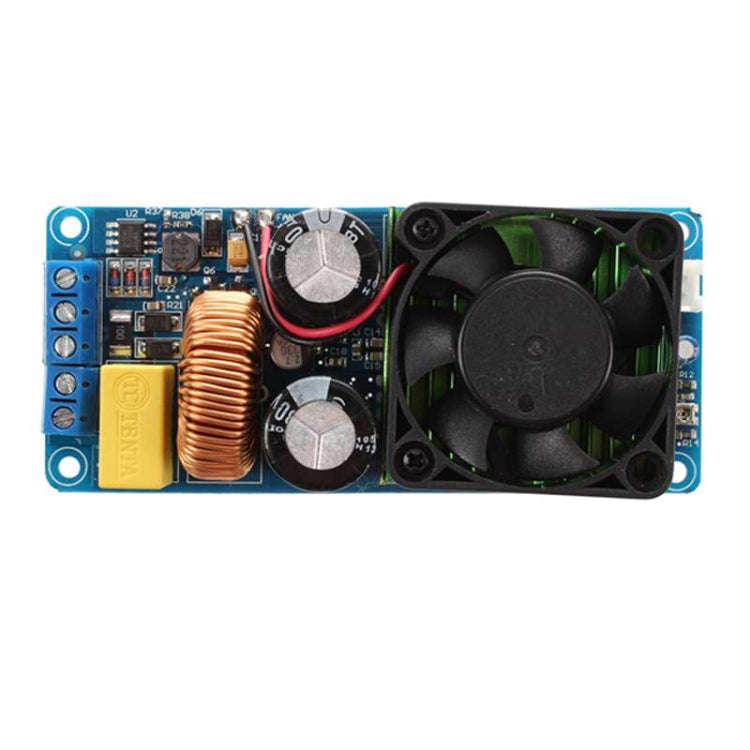

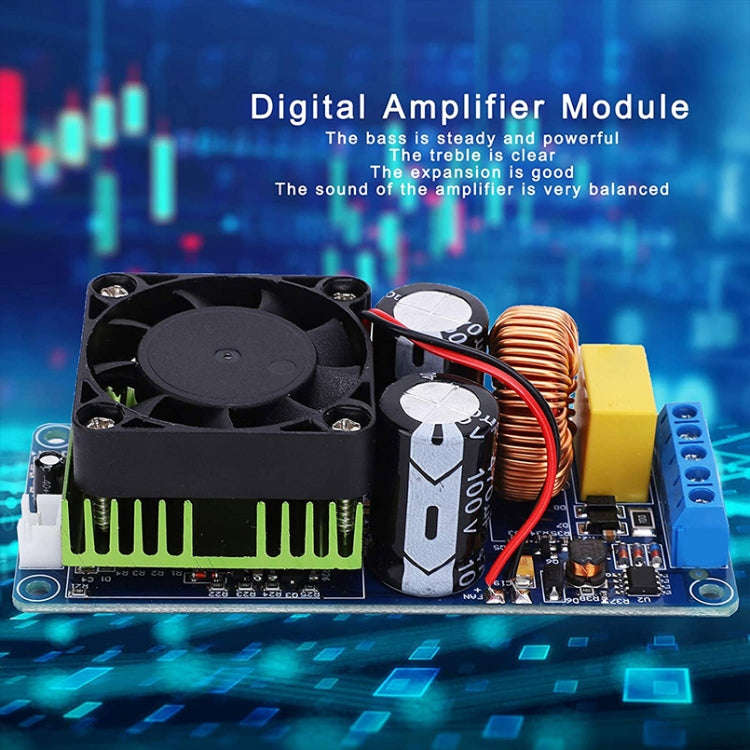

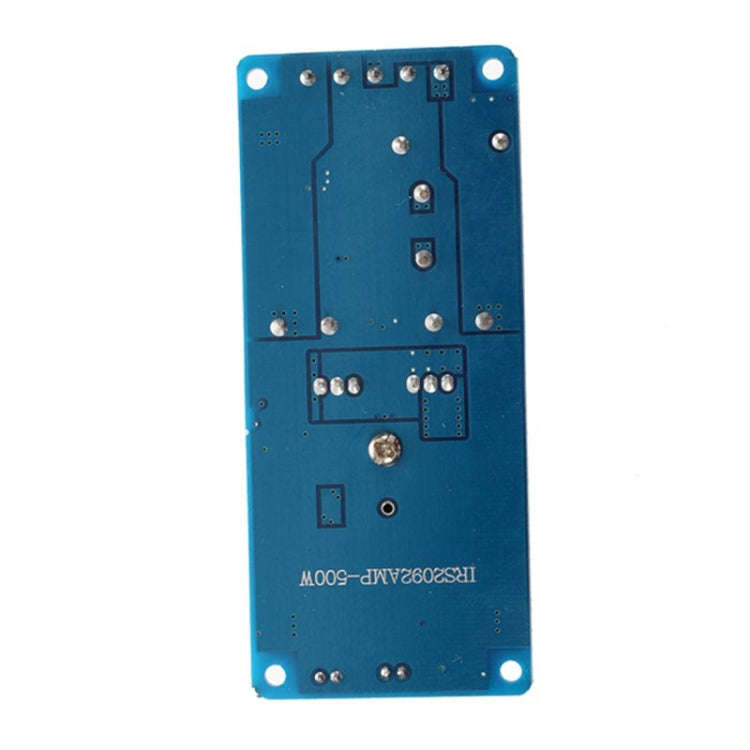

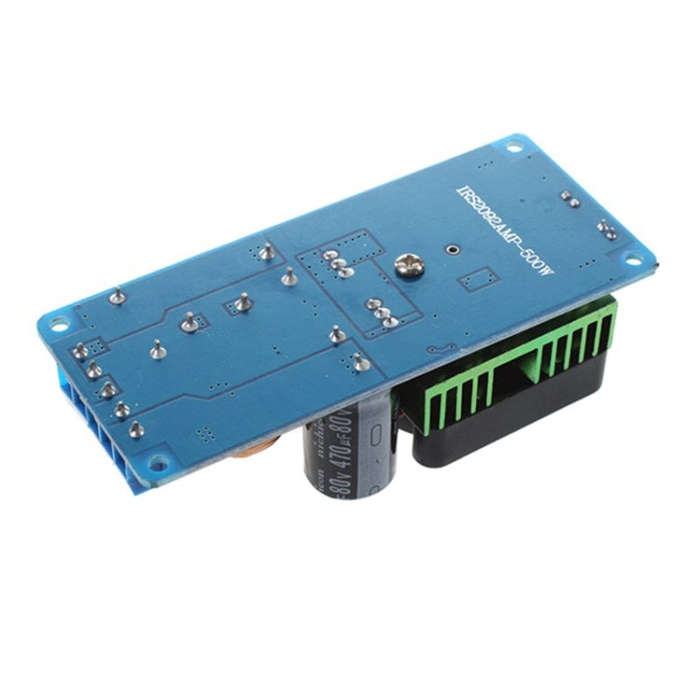

IRS2092S High Power 500W Class D HIFI Digital Amplifier Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD04242444
Bob Shop ID
605075354
1. Power supply: DC dual power supply 58 70v
2. Rated output power: 500w ( 65v power supply, 4 ohm load, 10% deformation)
3. Efficiency: greater than 90%
4. S / N ratio: 90db
5. Total harmonic distortion:
380w (+/- 65 power 4 ohm speaker, distortion <0.1%)
280w (+/- 65 power 8 ohm speaker, distortion <0.1%)
6. Frequency range: 20Hz-20kHz
7. Voltage magnification: 36 times
8. Input sensitivity 1.5v (RMS)
9. Output short circuit protection: yes
10. Output DC bias protection Speaker protection: yes
11. Overheat protection: Yes, the temperature of the radiator is higher than 100 degrees Celsius, turn off the output!

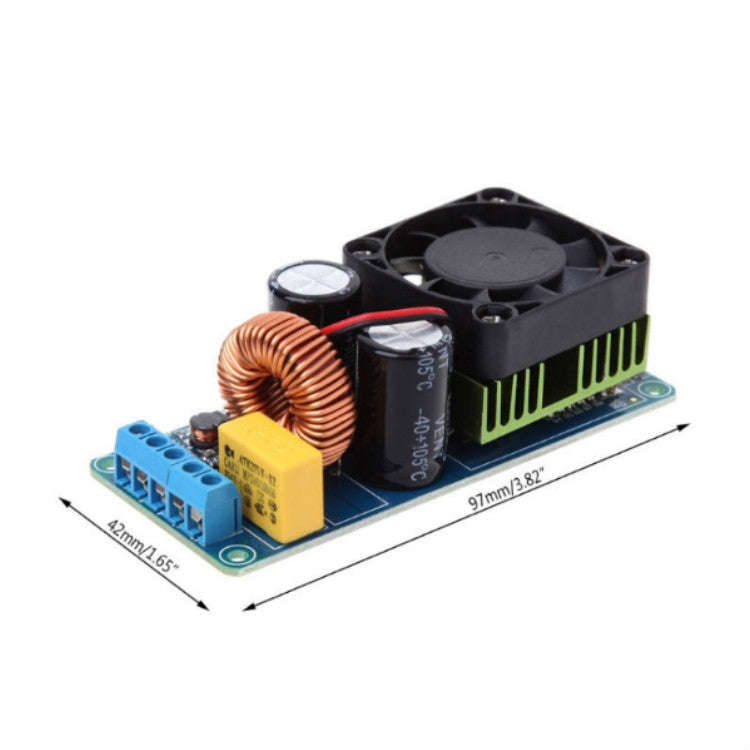

12. Product size: about 100 50 30mm
13. Net weight: 100g
