IRSW20A USB HID Reflective Photoelectric Switch
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
SYA0015386
Bob Shop ID
611579101

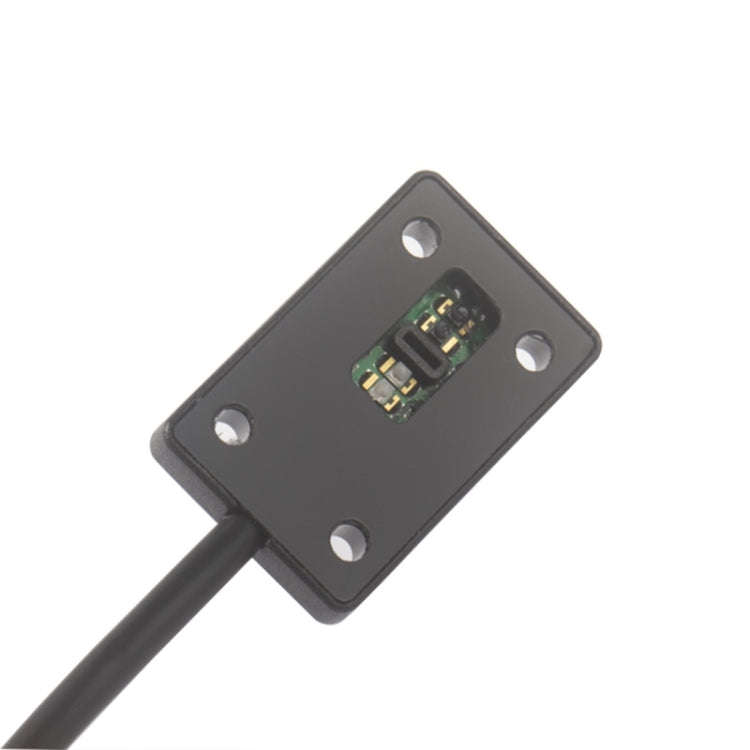

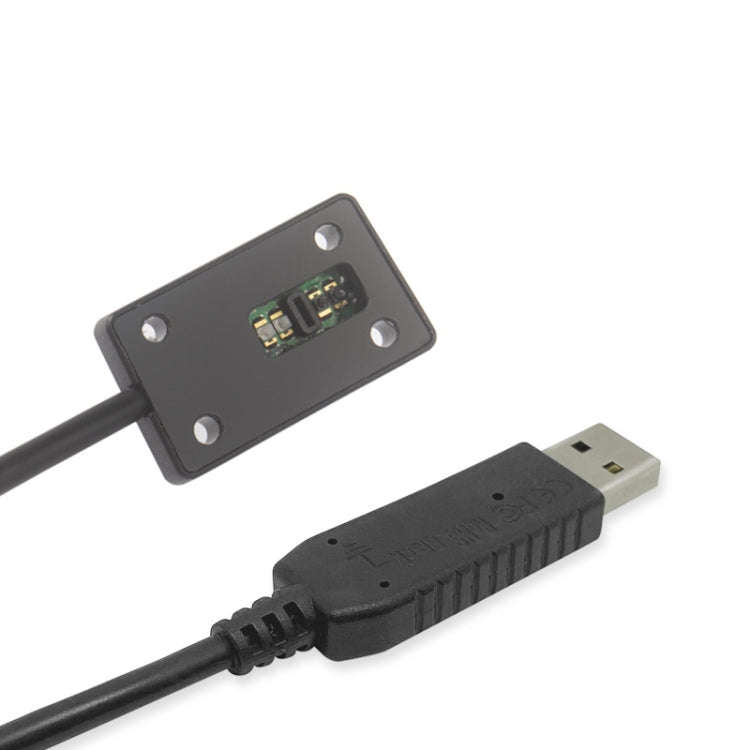

1. The reflective photoelectric switch (IRSW20A) is a customizable USB button. It is equivalent to a standard HID USB keyboard and mouse. You can set the switch function to any button, combination, mouse or string by setting the support software. After the definition is completed, no software cooperation is required during use.
2. Products are widely used in printers, copiers, game consoles, factory testing, instrument control, equipment, etc., as well as mobile monitoring, proximity switch monitoring and occasions where it is not convenient to use mechanical switches to improve efficiency.

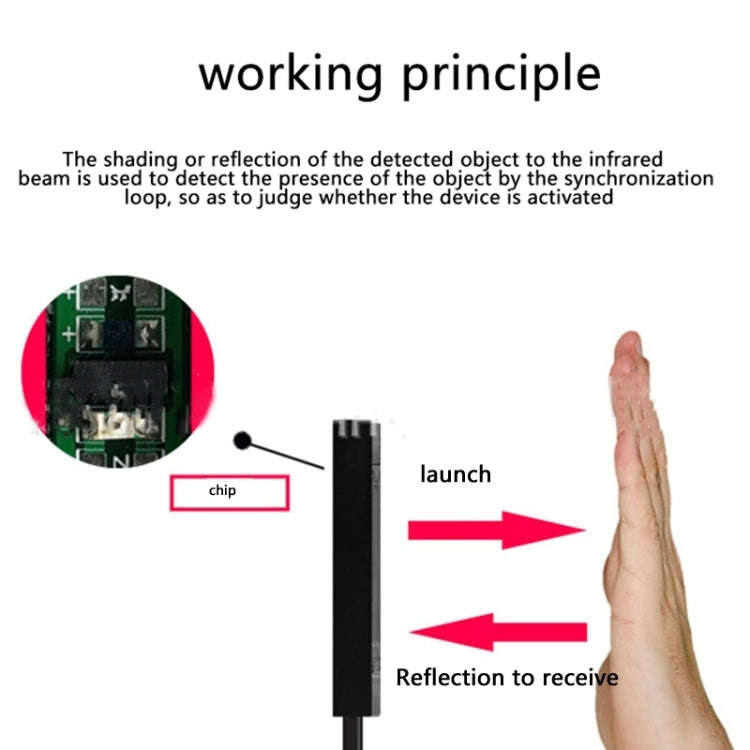

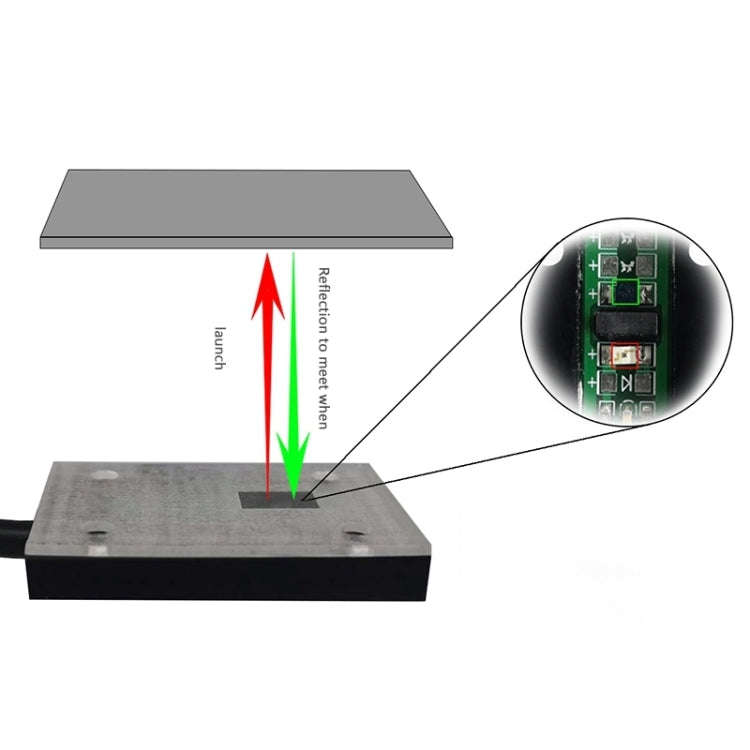

3. The switch adopts reflective photoelectric trigger mode. The infrared emitting tube inside the panel emits invisible infrared light. When an object approaches the panel, infrared light will be reflected back to the panel through the object. Switch actions.The trigger distance between the object and the panel can be adjusted by matching software. The effective trigger distance is about: 0-50mm.
4. Provide button definition setting software based on Windows system. After setting, you can use it in the following systems: Dos, Win 2000, Win XP, Win vista, Win 7, Win 8, Win10, Linux, Mac, Android.
Note: It is recommended to use some white smooth materials with better reflective properties, such as white paper, to obtain better reflective effects.To prevent false triggering, this product is not suitable for environments with strong sunlight such as outdoors and balconies.
Product specifications:
1. Product name: reflective photoelectric switch
2. Rated voltage: 5 V
3. Operating frequency: 3600 times/hour
4. Scope of application: office, game, industry, specific use for the disabled
5. Colour:black
6. Material: ABS
7. Line length: 2m

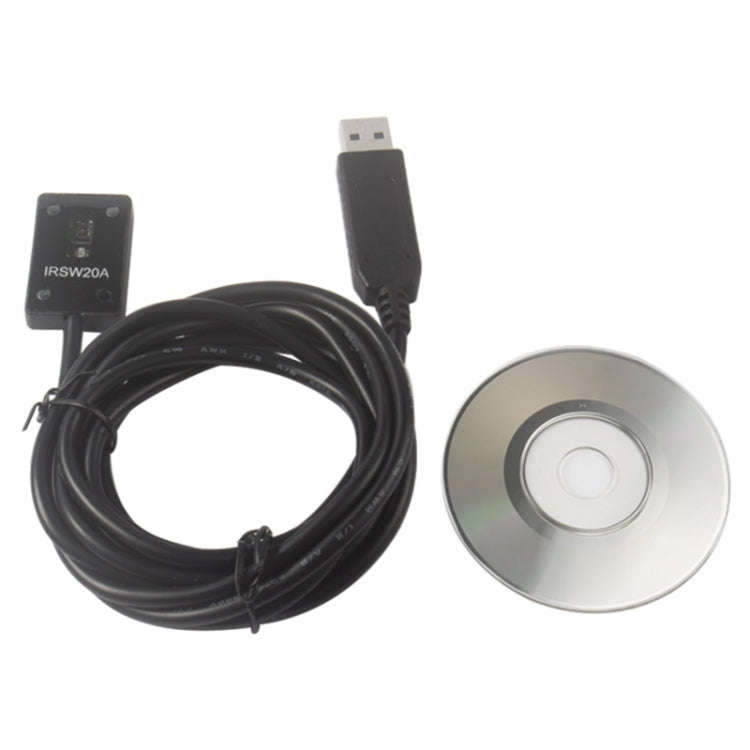

Package Contents:
- HID Reflective Photoelectric Switch x
(Only the above package content, other products are not included.)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
