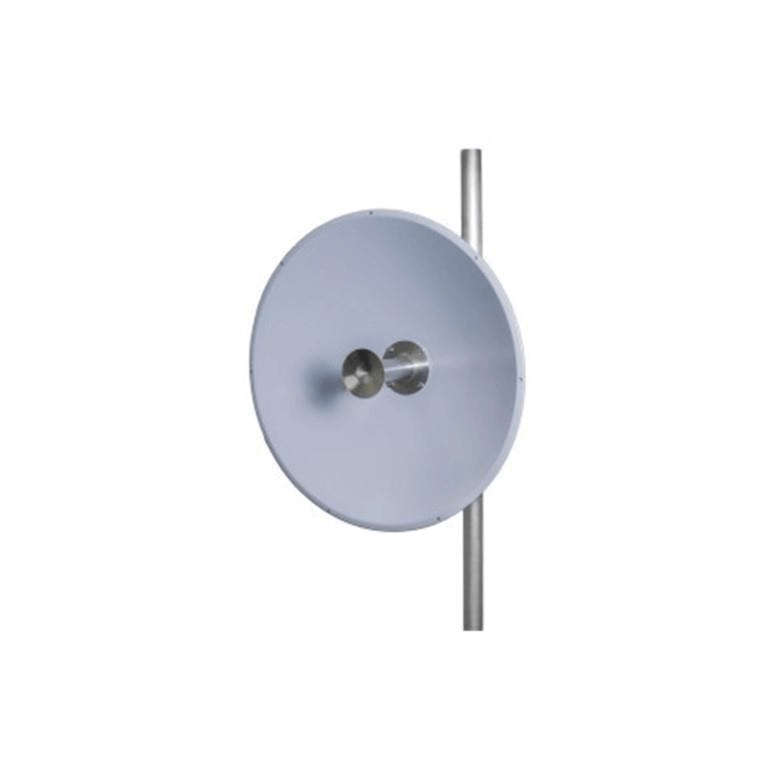

IT Elite 5GHz 28dBi Parabolic Dish Antenna 5028-DPX
The high gain dual polarized dish antenna is an excellent choice for indoor and outdoor applications in the ISM band, including IEEE 802.11ac. This antenna offers long-distance point-to-point bridge and network backhaul capabilities and is designed to operate under severe weather conditions. The pole mounting elements are constructed with high-quality materials that guarantee easy elevation and tilt down, as well as rock-stable operation.
This antenna is suitable for use as customer premise equipment and small base stations. It is capable of providing high-performance connectivity over long distances, making it an ideal solution for challenging wireless applications. Its dual polarized design ensures reliable signal transmission, even in areas with high levels of interference.
Antenna Key Features
- 2x 28 dBi Directional Gain
- Dual Polarization H&V or Cross
- Very Narrow Beamwidth
- High Quality Construction
- Heavy-Duty Mounting Elements
- Precise Adjustment Mounting Kit
- Best Solution for Noisy Area
- Radio Mount for Easier Instalation
- Complied with ETSI Class
Antenna Applications
- 5 GHz Band Wireless LAN
- IEEE 802.11a WLAN Systems
- 802.11n/MIMO standard
- Nstreme dual configuration
- Point to Point Applications
Technical Specification
Frequency range: 5.1-5.9 GHz
Gain: 28 dBi
Polarization: Linear. H&V or Slant+/-45°
Beam width horizontal: 5° - -3dB
Beam width vertical: 5° - -3dB
VSWR: <2
Impedance: 50 ohm
Front to back ratio: > 35 dB
Port isolation: > 40 dB
Connector: 2 x N female
Windload: 100/140 km/h
Mounting pole: 8cm
RoHS Compliant: Yes
Material: UV protected PVC (cover)
Colour: White/Blue
Outside dimensions: 630x310mm
Weight: 4.8 kg
Temperature range: -40 +80°C
Lightning protection: DC ground
