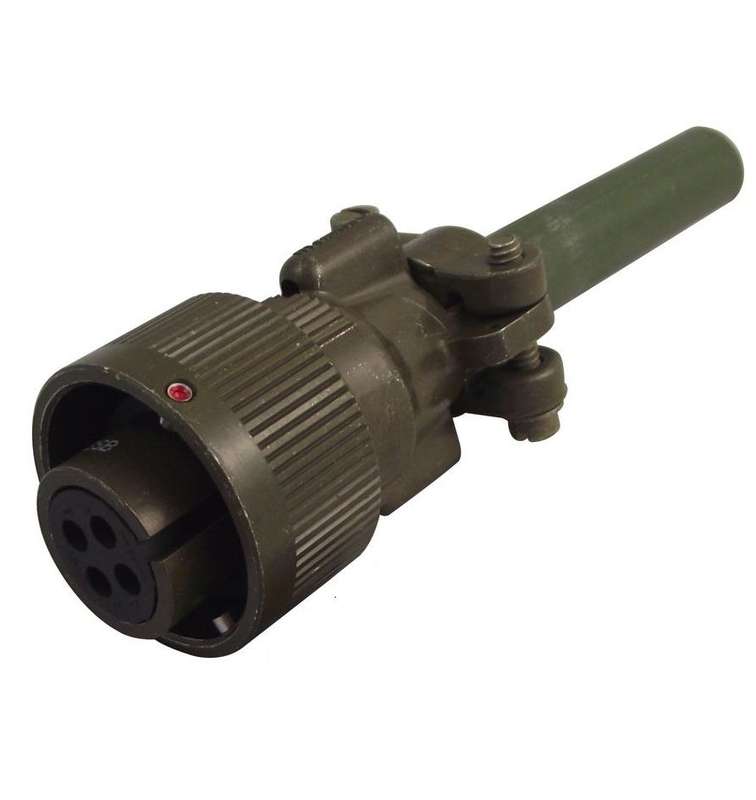

Itt Cannon (CA3106E14S-2SB) Circular Connector, 4 Contacts, Solder Socket

Circular Connector, CA-B, Straight Plug, 4 Contacts, Solder Socket, ReverseBayonet, 14S-2Product OverviewThe CA3106E14S-2SB from ITT Cannon is CA-B series, MIL-DTL-5015 seriesequivalent straight plug with 4 contacts. CA-B series connectors are availablein wide range of connector styles and sizes. The design meets MIL-DTL-5015standards. It provides superior performance in extreme environmental conditionsand offers exceptional sealing's against the ingress of fluids and willwithstand the effects of high vibration. It provides high mechanical robustnesswith high density contact arrangements in a miniature circular shell andcombines high coupling durability. It is the most versatile connector for anaccurate connects and disconnect in environmentally challenging situations.Rapid mating and unmating by a positive quarter turn bayonet locking mechanismQuick-mating 3-point reverse bayonet coupling, shock and vibration proof500 mating cycles, IP67/68/69k environmental resistanceOperating temperature range of -55°C to +125°CInsulation resistance is > 1000MohmResilient polychloroprene (neoprene) insulatorMoisture and corrosion resistantOperating voltage is 50VACAluminium alloy body material with olive drab chromate over cadmium platingCopper alloy solder socket contacts with silver platingApplicationsCommercial, IndustrialProduct InformationProduct Range: CA-BCircular Connector Shell Style: Straight PlugNo. of Contacts: 4ContactsCircular Contact Type: Solder SocketCoupling Style: Reverse BayonetInsert Arrangement: 14S-2Connector Body Material: Aluminium Alloy BodyConnector Body Plating: Olive Drab Chromate over CadmiumContact Material: Copper AlloyContact Plating: SilverInsert Rotation: NService Class: Environmentally SealedEquivalent Military Specification: MIL-DTL-5015 Series
