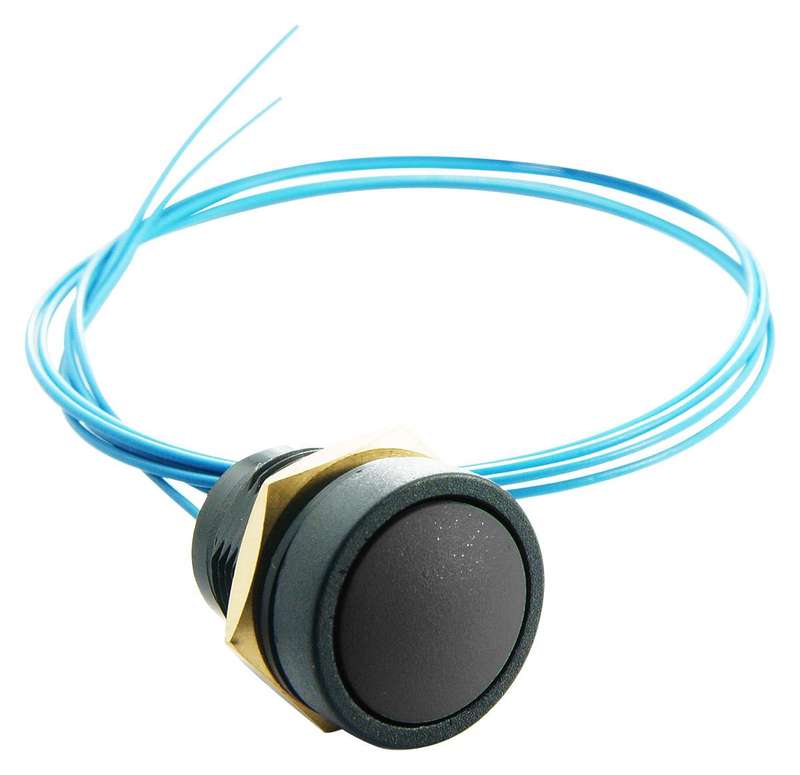

Itw Switches (49-59111) Industrial Pushbutton Switch, 49-59W, 16.1 mm

Industrial Pushbutton Switch, 49-59W, 16.1 mm, SPST-NO-DB, Momentary, RoundDomed, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: 49-59WPanel Cutout Diameter: 16.1mmContact Voltage AC Nom: 125VContact Configuration: SPST-NO-DBContact Voltage DC Nom: 50VSwitch Operation: MomentaryPushbutton Actuator Style: Round DomedContact Current Max: 400mAActuator / Cap Colour: BlackContact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Wire LeadedIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewMomentary action pushbutton switch is a fully sealed IP67 version with insulatedflying leads (500mm length). Held in position by a snap fit retaining mechanismand the advantage of SPDT-DB contacts to cover all circuit requirements. Beingdouble break, the contacts also provide reliable switching of DC loads.PBT materialRound bezel button style500mm leads termination/body styleBlack colour buttonIndustrial standard ø16mm panel cut outWide temperature of up to +105°C
