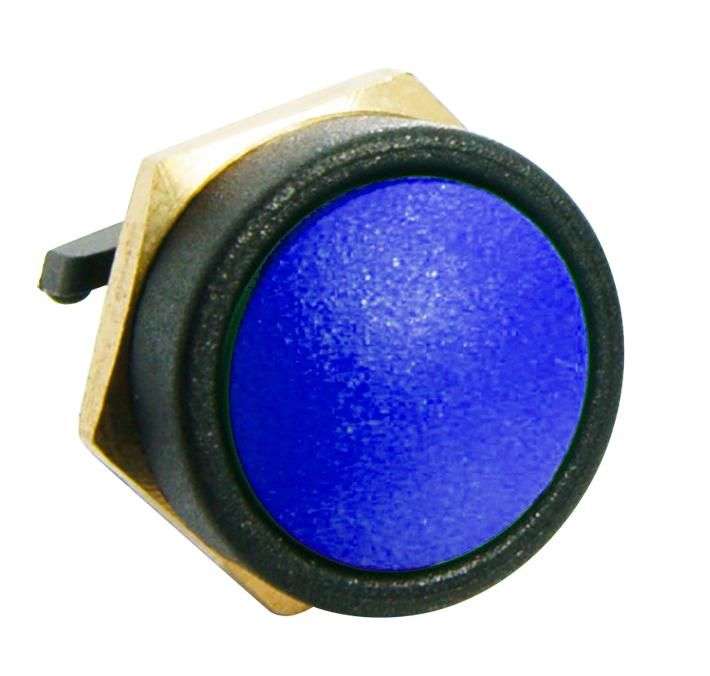

Itw Switches (49-59126) Industrial Pushbutton Switch, 49-59, 16.1 mm

Industrial Pushbutton Switch, 49-59, 16.1 mm, SPST-NO-DB, Momentary, RoundDomed, BlueProduct InformationPushbutton Switch Type: IndustrialProduct Range: 49-59Panel Cutout Diameter: 16.1mmContact Voltage AC Nom: 250VContact Configuration: SPST-NO-DBContact Voltage DC Nom: 50VSwitch Operation: MomentaryPushbutton Actuator Style: Round DomedContact Current Max: 10AActuator / Cap Colour: BlueContact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 49-59 series sealed Pushbutton Switch, range of momentary action pushbuttonswitches which fit a 16mm panel cut out. The range consists of a fully sealedIP67 version with insulated flying leads (500mm length) along with a panelsealed IP67 version which is terminated by a series 16 micro-switch. Held inposition by a snap fit retaining mechanism, the microswitch has a maximumcurrent rating of 10A and the advantage of SPDT-DB contacts to cover all circuitrequirements. Being double break, the contacts also provide reliable switchingof DC loads. The Series is available with a choice of round, round with statusillumination (flying leads only) or square bezels and with 6 button colourvariants. The body and button are made from PBT, a hard wearing thermoplasticpolyester that is suitable for surface or sublimation printing or engraving.IP67 Protection ratingLED status illumination (FL)Flame-retardant UL rated materialCustom coloursChoice of terminationsGold contacts on micro-switch versionSnap-in version of both flying lead and micro-switch variantsApplicationsIndustrial
